4G Industrial Grade Wifi Router DIN Rail-mounted
High-Performance & Dependable Ethernet Equipment for modern IoT & connectivity
- Two Ethernet ports, WAN/LAN switching selection, and surge protection design of network ports. Support one-click restore factory settings
- Linux kernel, professional driver, years of industry experience, serial port data stable transmission
- Support 4G Internet access, APN special card, Internet of Things card, PPPoE dialing, and wired DHCP
- Dynamic allocation, wired static IP connection, wireless WiFi relay and multiple network accesses
- Web page management background, no need to download any software, even WiFi plug-in cable to open the browser can be easily set
Order & Quote
Quality Certifications
Description
SH-LTE622 is a 4G industrial router which can can provide 4G network for various projects.SH-LTE622 has 2.4GHz WiFi, wireless speed up to 300Mbps; Dual 4G antenna access, the signal is stronger; Rich equipment indicator lights are convenient for debugging and equipment operation inspection; Power input supports 12V-48V and wide voltage input; Two 100-megabit network ports; Support rail buckle installation mode and bracket mounting mode; Mature hardware and software watchdog mechanism, real-time monitoring of network connection status.
The equipment has a variety of network access modes, supporting 4G Internet access, APN special card, Internet of Things card, PPPoE dialing, DHCP wired dynamic allocation, static IP wired connection and WiFi wireless relay access, which is suitable for more application scenarios.
Convenient web management background, mobile phone tablet can also be easily set. Rich application functions, small size, support rail installation and bracket installation, which is suitable for more engineering application scenarios.

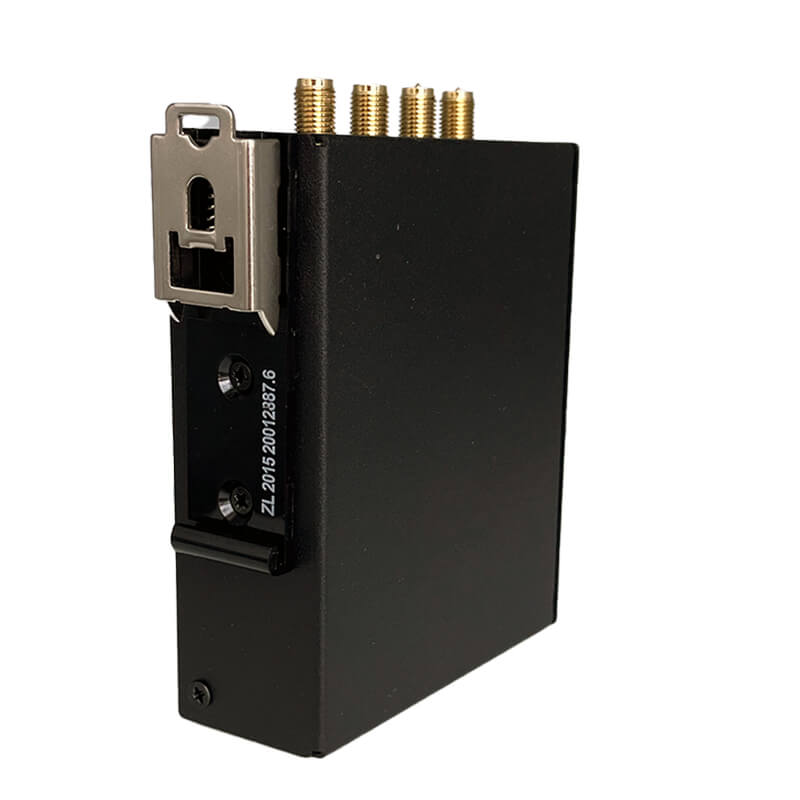

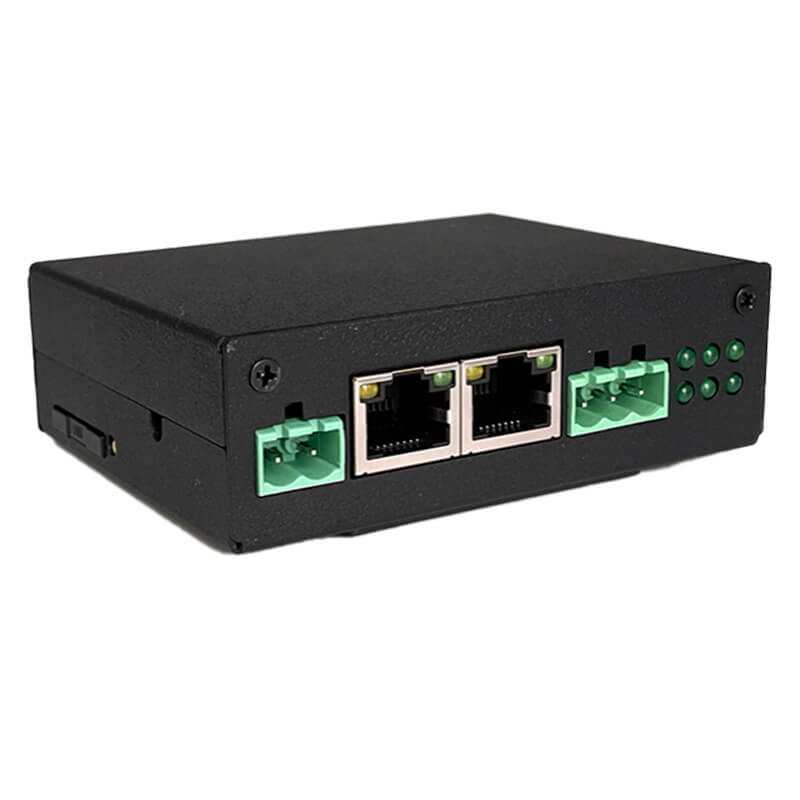

Product Photos
Basic Information
| Attribute | Details |
|---|---|
| Product Name | 4G & WIFI Industrial Router |
| Product Model | SH-LTE622 |
| Product Dimensions | 98.50×28.00×75.50mm |
| Housing Material | Metal Housing |
| Operating Temperature | -40~75℃ |
| Operating Humidity | 5%~90%RH (non-condensing) |
| Storage Temperature | -45~80℃ (Note: The original “Working Temperature” is repeated; adjusted to “Storage Temperature” based on common product specs for rationality) |
| Storage Humidity | 5%~90%RH (non-condensing) |
| Installation Method | Bracket Installation, DIN Rail Clip Installation |
| Device Configuration & Management | Web Browser Management Backend |
| Shipping List | 1 × SH-LTE622 Device Host 2 × 2.4GHz WiFi Suction Cup Antennas 2 × 4G Suction Cup Antennas 1 × Power Adapter |
Hardware Features
| Device Frequency | 580MHz |
| Interfaces | 1×Power interface, 2×RJ45 ports, 2×2.4GHz WiFi antenna interfaces, 2×4G antenna interfaces |
| Buttons | RESET button (long press to restore factory settings) |
| Power Input | DC 12V~48V input; Power interface standard: 5.08mm pitch 2P terminal |
| RJ45 Ports | 10/100Mbps auto-negotiation; 1 WAN or LAN port, 1 LAN port |
| Wireless Specifications | 2.4GHz WiFi; Wireless standard: IEEE802.11b/g/n; Wireless rate: 300Mbps |
| 4G Standards | European Version: LTE-FDD: B1/B3/B7/B8/B20/B28; LTE-TDD: B38/B40/B41; WCDMA: B1/B8; GSM/EDGE: B3/B8; Max download rate: 150Mbps; Max upload rate: 50Mbps
Eurasian Version: LTE-FDD: B1/B3/B5/B7/B8/B20/B28; LTE-TDD: B38/B40/B41; WCDMA: B1/B5/B8; GSM/EDGE: B3/B8; Max download rate: 150Mbps; Max upload rate: 50Mbps Latin American Version: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66; LTE-TDD: B40; WCDMA: B1/B2/B4/B5/B8; GSM/EDGE: B2/B3/B5/B8; Max download rate: 150Mbps; Max upload rate: 50Mbps |
| Indicators | 1×Power indicator, 1×Status indicator, 1×4G indicator, 1×WiFi indicator, 1×Data TX1 indicator, 1×Data RX1 indicator |
| Hardware Protection | Power reverse polarity protection, surge protection, ESD protection, anti-static, serial port optocoupler isolation |
| Management Specifications | Management IP: 192.168.169.1 (default factory IP, user-modifiable)Username/Password: Username: admin; Password: admin
WiFi Name/Password: WiFi name: LTE-2.4GHz-XXXXXX; WiFi password: 12345678 Network Access Methods: 4G Internet (supports regular SIM cards, APN dedicated cards, IoT cards), PPPoE access, wired DHCP dynamic acquisition, wired static IP access, wireless 2.4GHz relay LAN Settings: IP address modification, subnet mask setting, DHCP server setting Firewall: Firewall on/off, port forwarding WiFi Settings: WiFi name modification, WiFi channel selection, WiFi password modification, WiFi encryption method selection System Management: Management interface language selection, device factory reset, device firmware upgrade, device restart |
Software Specifications
| Attribute | Details |
|---|---|
| Web IP | 192.168.169.1（Default factory IP, which can be modified by yourself） |
| User/Key | User：admin Key：admin |
| WiFi SSID/KEY | WiFi SSID：LTE2.4GHz-XXXXXX WiFi Key：12345678 |
| Network access method | 4G Internet access, PPPoE access, wired DHCP dynamic acquisition, wired static IP access, wireless 2.4GHz relay |
| Intranet settings | IP address modification, subnet mask setting, DHCP server setting |
| Firewall | Firewall on/off, port forwarding |
| WiFi Setting | Modify WiFi SSID、Choose WiFi signal path、Modify WiFi Key、WiFi Encryption method selection |
| System Management | Management interface language selection, device restoration to factory settings, device firmware upgrade, device restart |
Additional Information
Customize & Inquiry
We offer customized IoT Ethernet devices and quotes based on your order quantity. For customization or purchase needs, please send your requirements to us.
Product Datasheet
We provide the data sheet for our IoT Ethernet devices (including specs and protocol support) to help you check project compatibility. Add to cart for instant access.
