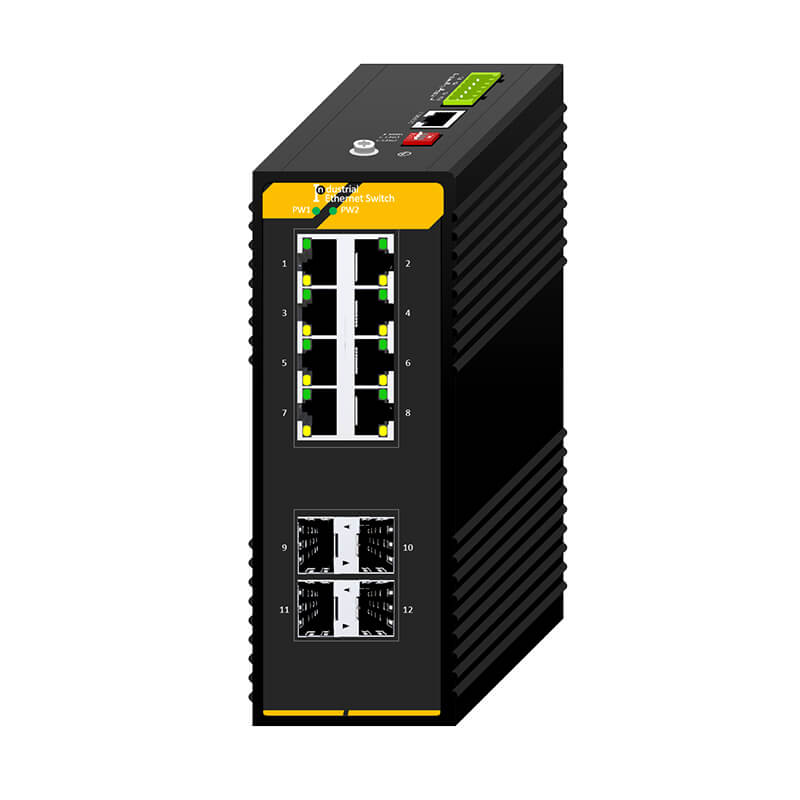

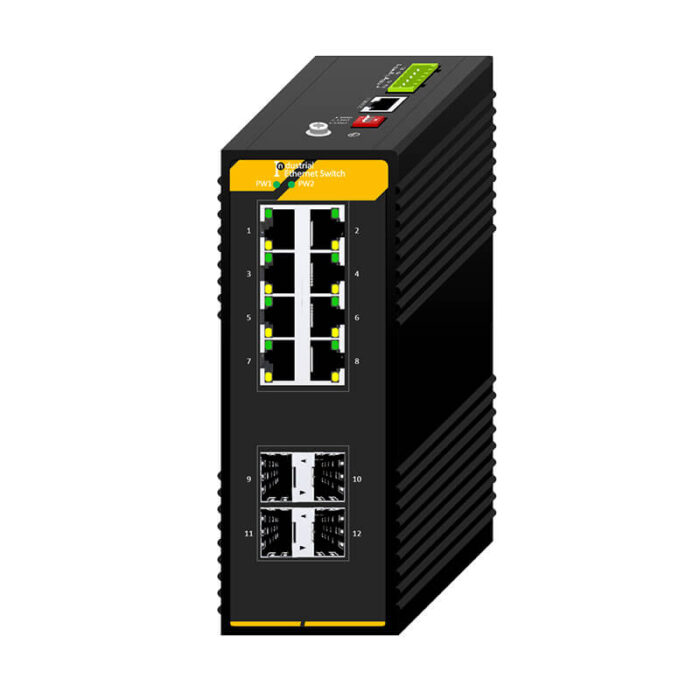

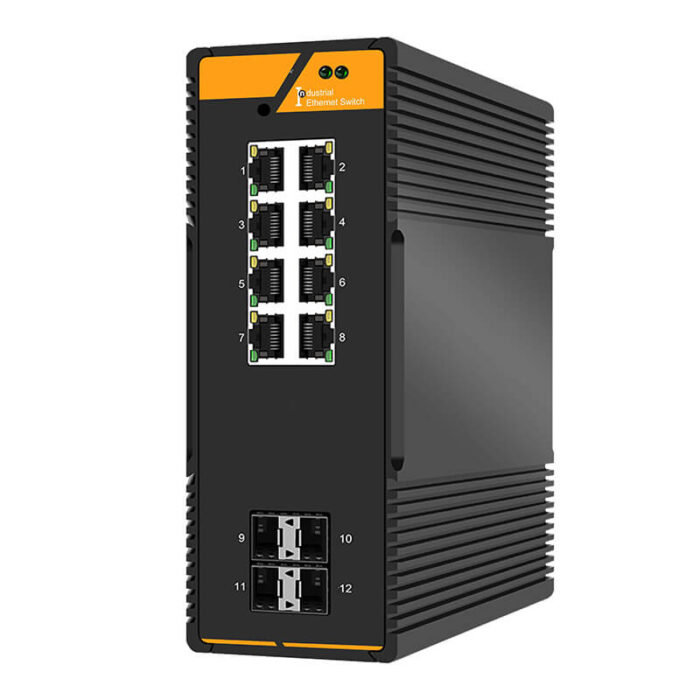

8*10/100/1000M RJ45 Base-T Ports 4*10000M Base-X Ports Industrial L2 Managed Switch SH-GM408000
- Provides 8*10/100/1000M Base-T ports.
- Offers 4 SFP slots, supporting the insertion of 10 Gigabit SFP modules.
- Supports standard Ethernet protocols such as IEEE802.3.
- Complies with the ITU-T G.8032 standard for the ERPS (Ethernet Ring Protection Switching) ring network protocol, with a self-healing time within 20 milliseconds.
- Supports network redundancy protocols including STP (Spanning Tree Protocol), RSTP (Rapid Spanning Tree Protocol), and MSTP (Multiple Spanning Tree Protocol).
- Supports multicast management of IGMP v1/v2/v3 (IGMP snooping).
- Supports network management of SNMP v2c/v3 and 802.1Q VLAN.
- Can be managed and configured through multiple methods such as Web, Telnet, and Console (CLI).
- Features a fanless design and a high-strength metal enclosure.
free delivery
Get free delivery in most regions. Only a few areas have extra shipping fees for your order.
secure payments
Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.
Return Policy
We stand by our products. You can return any item within 30 days if you’re not completely satisfied.
official products
All our products are sourced directly from official channels, offering you genuine items of the highest quality.
Product Detail
Description
SH-GM408000 industrial-grade L2 managed switch provides 8*10/100/1000M Base-T ports and 4*10000M Base-X SFP slots. It supports the ERPS (Ethernet Ring Protection Switching) ring network and the one-click ring network function. It complies with the G.8032 ERPS Ethernet ring network protection switching protocol, and the self-healing time can be within 20 milliseconds. In case of network failures, it can quickly recover, ensuring uninterrupted communication for critical applications.
It can operate stably within a wide temperature range from -40°C to +85°C, ensuring the stable operation of the device in harsh environments. In addition, it supports layer-2 network management functions and can be managed and configured via Web, Telnet, Console (CLI) and SNMP.
This switch is widely applied in various industrial application scenarios, including industrial control automation, road traffic control automation, building automation control systems, mine automation control systems, oilfield control automation, hydropower station control automation, power system control automation, and computer room monitoring systems.
| Model | Description |
|---|---|
| SH-GM408000 | Industrial L2 Managed Ethernet Switch, 8*10/100/100M Base-T Ports + 4*10000M Base-X SFP Slots (Modules Excluded), DC Dual-power Redundancy |
Hardware Parameters
Ports
– Base-T Ports: 8*10/100/1000M RJ45 ports
– Transmission Distance:
– ≤ 100 meters @100/1000Base-T
– ≤ 250 meters @10Base-T
– Base-X Ports: 4*10000M SFP slots
– Wavelength:
– Multimode: 850nm, 1310nm
– Single-mode: 1310nm, 1550nm
– Single-fiber: 1310/1550nm, 1490/1550nm
– Transmission Distance:
– Multimode: 550m/2km;
– Single-mode: 3km~120km
Switching Characteristics
– Backplane Bandwidth: 96G
– MAC Address Table: 16K
– Packet Forwarding Rate: 71.4Mpps
– Store-and-Forward: Supported
Power Supply
– Power Supply Voltage: DC12V-54V
– Power Consumption:
– No-load ≤ 1.5W;
– Full-load ≤ 5W

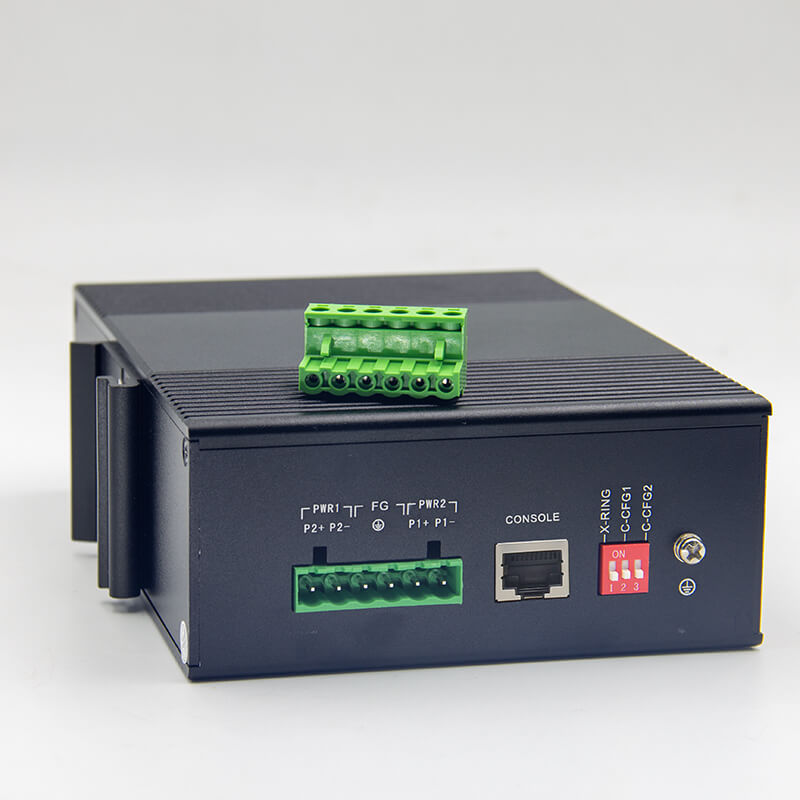

– Interface: 6-core 5.08mm pitch terminal block
– Power Redundancy: Supported
– Reverse Connection Protection: Supported
Environment
– Operating Temperature: -40℃ – +85℃
– Operating Humidity: 5%-90% (non-condensing)
– Storage Temperature: -40℃ – +95℃
– Storage Humidity: 5%-95% (non-condensing)
Mechanical Structure
– Enclosure: Metal profile
– Protection Level: IP40
– Dimensions: 153×113×55mm
– Net Weight: 0.91kg
– Installation Method: Rail-mounted installation
Safety Regulations
– Electrostatic Discharge Protection (ESD)**: IEC61000-4-2 Level 3;
– Air Discharge: ±8KV,
– Contact Discharge: ±6KV
– Electromagnetic Field: IEC61000-4-3
– Instantaneous High Voltage (EFT)**: IEC61000-4-4 Level 3;
– Power Supply: ±2KV,
– Signal: ±1KV
– Surge Protection: IEC61000-4-5 Level 3;
– Power Supply: Differential Mode ±2KV,
– Common Mode ±4KV
– Signal: Differential Mode ±2KV,
– Common Mode ±6KV
Others
– LED:
– Power Indicator
– Optical Port Link/Act Indicator
– Electrical Port Link/Act Indicator
– Electrical Port Rate Indicator
– MTBF: 500,000 hours
Software Features
Protocol Standards
– IEEE 802.3: Ethernet protocol
– IEEE 802.3i: 10Base-Tx
– IEEE 802.3u: 100Base-Tx/Fx
– IEEE 802.3z: 1000Base-X
– IEEE 802.3ab: 1000Base-Tx
– IEEE 802.3x: Flow control
– IEEE 802.3ad: LACP (Link Aggregation Control Protocol)
– IEEE 802.1p: COS (Class of Service)
– IEEE 802.1q: VLAN (Virtual Local Area Network)
– IEEE 802.1d: STP (Spanning Tree Protocol)
– IEEE 802.1w: RSTP (Rapid Spanning Tree Protocol)
– IEEE 802.1x: Security authentication
– IEEE 802.1ab: LLDP (Link Layer Discovery Protocol)
Switching Characteristics
– DIP Switch: One-click ring network
– Redundant Network: Supports STP/RSTP/MSTP and ERPS
– Loop Protection: Supports the proprietary loop protection protocol
– ERPS: Supports single ring, tangent ring, intersecting ring and multiple rings
– MAC Address Table: Complies with the IEEE 802.1q standard;
Supports automatic learning and aging of MAC addresses; Supports static and dynamic MAC entries
– Mirroring: Supports port-based bidirectional mirroring, VLAN-based input mirroring and flow-based input mirroring
– Layer 2 Multicast: Supports IGMP V1, V2, V3 Snooping; Supports source port checking; Supports IGMP Fast Leave; Supports IGMP Filter; Supports IGMP proxy
– VLAN: Supports port-based VLAN; Supports access ports, trunk ports and hybrid ports
– Private VLAN: Supported
– GVRP: Supported
– Port Aggregation: Supports static aggregation and dynamic aggregation (LACP protocol)
Security Features
– QOS: Supports QoS re-marking, priority mapping, and supports SP, WRR as well as SP+WRR scheduling algorithms. Supports ingress rate limiting, ingress priority rate limiting, egress rate limiting, egress queue rate limiting, flow-based QoS and storm suppression. Each port supports 8 queues.
– ACL: Supports matching fields of L2, L3 and L4 layers, and supports actions such as logging, redirection, mirroring and rate limiting.
– Dot1x: Supports port-based 1X authentication, user-based 1X authentication, MAC-based authentication and Radius service.
– IP Source Guard: Supports dynamic entries (from DHCP Snooping) and static entries (from configuration).
– ARP Inspection: Supports dynamic entries (from DHCP Snooping) and static entries (from configuration).
– Diagnostic and Maintenance: Supports ping (IPv4), ping (IPv6), traceroute (IPv4) and traceroute (IPv6).
Management Characteristics
– Management Functions: Supports Telnet, CLI, WEB and SNMP management methods.
– SNMP: Supports SNMP V2C and SNMP V3.
– RMON: Supports the statistics group, history group, alarm group and event group.
– Web Management: Supports Web management, HTTP V1.1 and HTTPS.
– IPV4/IPV6: Supports IPv4 and IPv6.
– Security Functions: Supports DHCP Snooping, 802.1X, hierarchical user management, ACL access control lists, supports DDOS, and port-based MAC filtering/binding.
– Port Management: Supports port enabling and disabling, rate setting, and 802.3x flow control.
Application Features
– NTP: Supports NTP Client.
– DHCP Client: Supported.
– DHCP Snooping: Supports establishing the Snooping table; Supports trusted ports.
– TFTP: Supports TFTP Client.
– Telnet: Supports Telnet Server.
– SSH: Supports SSH Server.
– Version Upgrade: Supported.

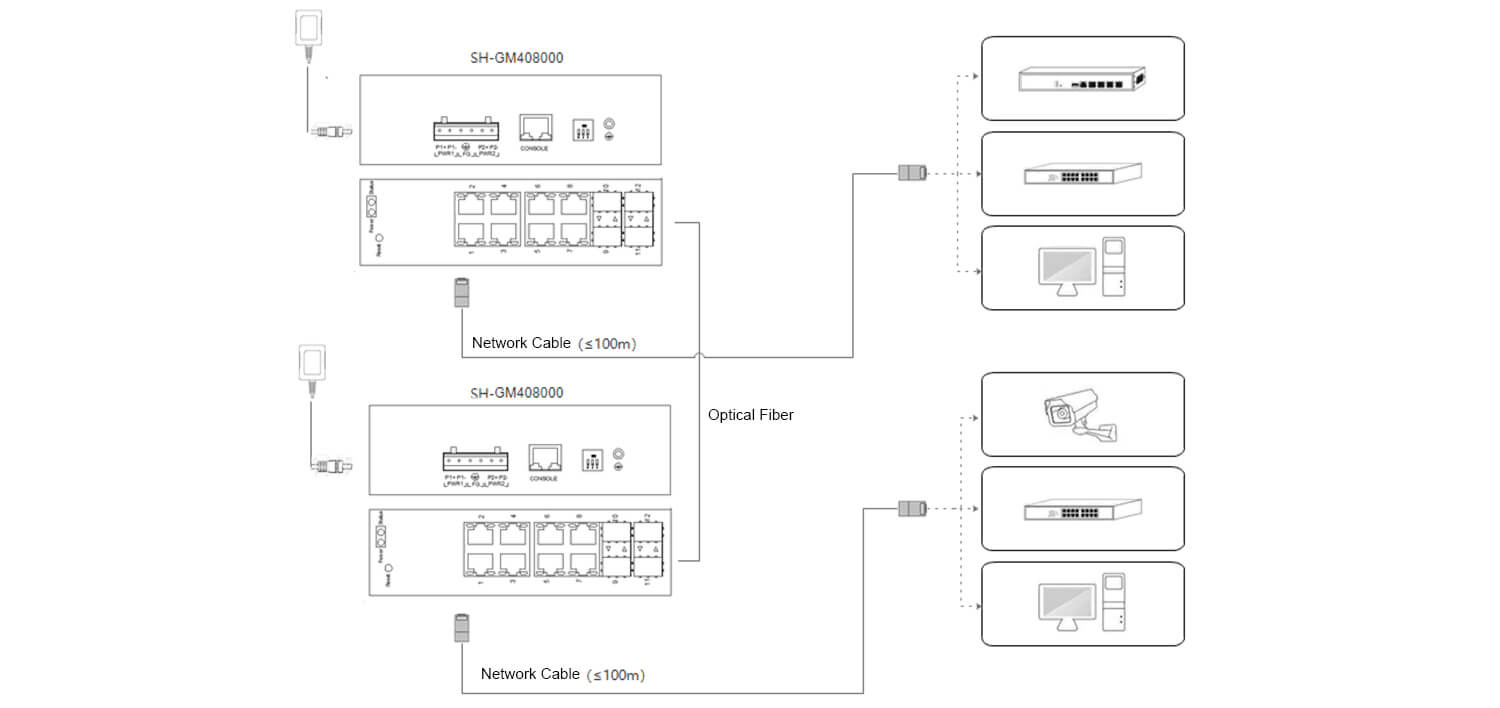

Application
