SH-M3216

Commercial L2 Managed Ethernet Switch With 16*10/100/1000Base-TX Ports + 2*1000Base-FX SFP Slots
Categories: ,

Commercial L2 Managed Ethernet Switch With 16*10/100/1000Base-TX Ports + 2*1000Base-FX SFP Slots

Feature
  • Provides 16*10/100/1000Base-TX electrical ports
  • Provides 2 Gigabit SFP optical ports
  • All ports offer Layer 2 wire-speed switching capability, ensuring non-blocking packet forwarding for all ports
  • Delivers up to 56Gbps backplane bandwidth and non-blocking wire-speed forwarding
  • Supports Layer 2 network management with rich functions
  • Supports 4K VLAN table based on IEEE802.1Q port protocol, and supports input/output bandwidth control of ports
  • Supports multiple network management protocols such as WEB, Telnet, Console, SNMP V1/V2/V3, RMON, etc.
  • Built-in power supply design, stable and reliable
  • Lightning protection and surge protection, safe and reliable
  • Exquisite and compact appearance, plug-and-play, easy to maintain

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

free delivery

Get free delivery in most regions. Only a few areas have extra shipping fees for your order.

secure payments

Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.

Return Policy

We stand by our products. You can return any item within 30 days if you’re not completely satisfied.

official products

All our products are sourced directly from official channels, offering you genuine items of the highest quality.

Product Detail

Description

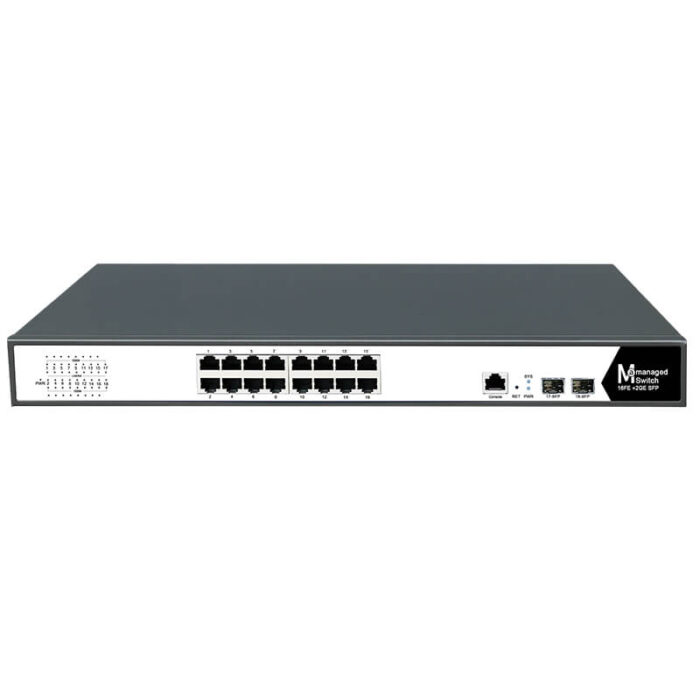

The SH-M3216 Gigabit Layer 2 Managed Ethernet Switch is equipped with 16 Gigabit electrical ports and 2 Gigabit optical ports, and adopts chips from international leading brands. As a high-performance Layer 2 managed switch, it is widely used in enterprise networking and monitoring systems.

The SH-M3216 Gigabit Layer 2 Managed Ethernet Switch supports Layer 2 management and offers a rich set of network management functions, including VLAN, ACL, QoS, STP, IGMP, etc. It is compatible with WEB, Telnet, Console, SNMP V1/V2/V3, and RMON network management protocols.

Hardware Specifications

Type Details
Service ports 16 x 10/100/1000Base-TX electrical ports
Uplink ports 2 x 10/100/1000Base-FX SFP uplink optical ports
Management port 1 x CONSOLE port (RJ45)

Parameter Specification
Backplane bandwidth 56G
Packet forwarding rate 41.67Mpps
MAC 8K
Packet buffer 4.1M cache
FLASH 128M
RAM 128M
Store-and-forward Supported

Protocol Description
IEEE 802.3x Flow control
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3 Ethernet protocol
IEEE 802.3u 100Base-Tx/Fx
IEEE 802.3ab 1000Base-Tx
IEEE 802.3z 1000Base-X
IEEE 802.3q VLAN (Virtual Local Area Network)
IEEE 802.3q/p VLAN with Class of Service (CoS)
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1d STP (Spanning Tree Protocol)
IEEE 802.1S MSTP (Multiple Spanning Tree Protocol)
IEEE 802.3z 1000BASE-X Gigabit Ethernet over fiber
IEEE802.3af PoE Power over Ethernet (15.4W max)
IEEE802.3at PoE+ Power over Ethernet Plus (30W max)

Type Media and Distance
10BASE-T Cat3, 4, 5 UTP (≤250 meters)
100BASE-TX Cat5 or later UTP (≤100 meters)
1000BASE-TX Cat6 or later UTP (≤100 meters)
1000BASE-SX 62.5μm/50μm MMF (2m~550m)
1000BASE-LX 62.5μm/50μm MMF (2m~550m) or 10μm SMF (2m~5000m)

Parameter Specification
Type Built-in switching power supply
Input Voltage AC 100~240V 50/60Hz

Indicator Function
PWR Power indicator
SYS System indicator
17, 18 Optical port connection indicators
1~16 Network connection indicators (10/100/1000M)

Parameter Specification
Operating temperature -20~55℃
Storage temperature -40~75℃
Operating humidity 5~90% (non-condensing)
Storage humidity 5~95% (non-condensing)

Parameter Specification
Product dimensions 440mm×200mm×45mm
Packaging dimensions 515mm×300mm×95mm
Net weight 2kg
Gross weight 2.7kg

Ports

Type Details
Service ports 16 x 10/100/1000Base-TX electrical ports
Uplink ports 2 x 10/100/1000Base-FX SFP uplink optical ports
Management port 1 x CONSOLE port (RJ45)
Software Specifications

Standard Details
IEEE 802.3x –
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z –
IEEE 802.3ad –
IEEE 802.3q, IEEE 802.3q/p –
IEEE 802.1w, IEEE 802.1d, IEEE 802.1S, IEEE 802.1X –

Feature Description
Basic Function Supports 16K MAC address table, automatic update, bidirectional learning

Type Specification
Port-based VLAN Supported
Maximum VLANs Supports up to 4096 VLANs
Voice VLAN Supported, enabling QoS configuration for voice data
Standard VLAN Supports 802.1Q standard VLAN

Protocol Support Status
STP (Spanning Tree Protocol) Supported
RSTP (Rapid Spanning Tree Protocol) Supported
MSTP (Multiple Spanning Tree Protocol) Supported
EPPS ring network protocol Supported
EAPS ring network protocol Supported
802.1x authentication protocol Supported

Parameter Details
Aggregation Capacity Supports 8 groups of aggregation, with each group supporting up to 8 ports

Function Description
Mirroring Type Supports bidirectional (transmit and receive) port mirroring

Feature Details
Protection Mechanism Supports loop protection function, with real-time detection, rapid alarm, accurate positioning, intelligent blocking, and automatic recovery

Function Description
Isolation Rule Supports mutual isolation of downlink ports, while enabling communication with uplink ports

Duplex Mode Control Method
Half-duplex Based on backpressure control
Full-duplex Based on PAUSE frames

Function Description
Bandwidth Management Supports port-based input/output bandwidth management

Feature Details
Snooping Protocols IGMPv1/2/3 and MLDv1/2 Snooping
GMRP Support Supports GMRP protocol registration
Management Functions Multicast address management, multicast VLAN, multicast routing ports, static multicast addresses

Function Support Status
DHCP Snooping Supported

Type Mechanism
Suppressed Traffic Types Supports storm suppression for unknown unicast, multicast, unknown multicast, and broadcast types
Suppression Method Storm suppression based on bandwidth adjustment and storm filtering

Feature Details
Binding Support Supports user port + IP address + MAC address
ACL Types IP-based and MAC-based ACL
Port Security Supports port-based security features related to the number of MAC addresses

Feature Details
Priority Algorithm 802.1p port queue priority algorithm
Marking Cos/Tos, QoS marking
Scheduling Algorithms WRR (Weighted Round Robin), weighted priority round-robin algorithm
Scheduling Modes Supports three priority scheduling modes: WRR, SP, and WFQ

Function Description
Auto-MDIX Supports Auto-MDIX function, automatically identifies straight-through cables and crossover cables

Function Description
Auto-Negotiation Ports support auto-negotiation function (auto-negotiates transmission rate and duplex mode)

Function Description
Upgrade Supports upload of upgrade packages
Log Management Supports system log viewing
Factory Reset Supports WEB-based factory reset

Management Method Details
WEB Interface Supports WEB interface management
CLI Management CLI management based on Telnet, TFTP, and Console
SNMP Supports SNMP V1/V2/V3 management
RMON Supports RMONv1/V2; RMON management
