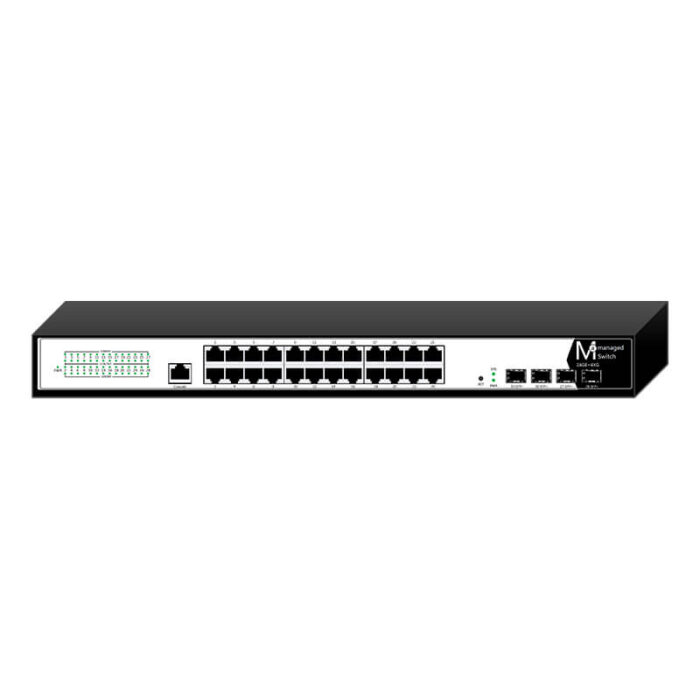

SH-M7424

Commercial L2 Managed Ethernet Switch With 2410/100/1000Base-T PoE Ports + 410G Base-X SFP Slots

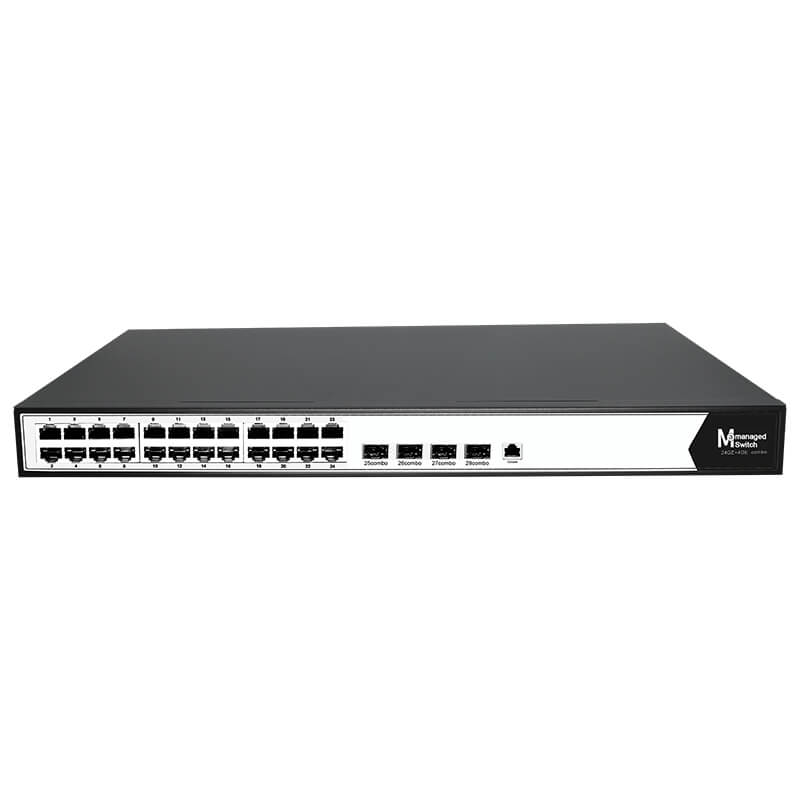

Commercial L2 Managed Ethernet Switch With 24*10/100/1000Base-T PoE Ports + 4*10G Base-X SFP Slots - Image 2

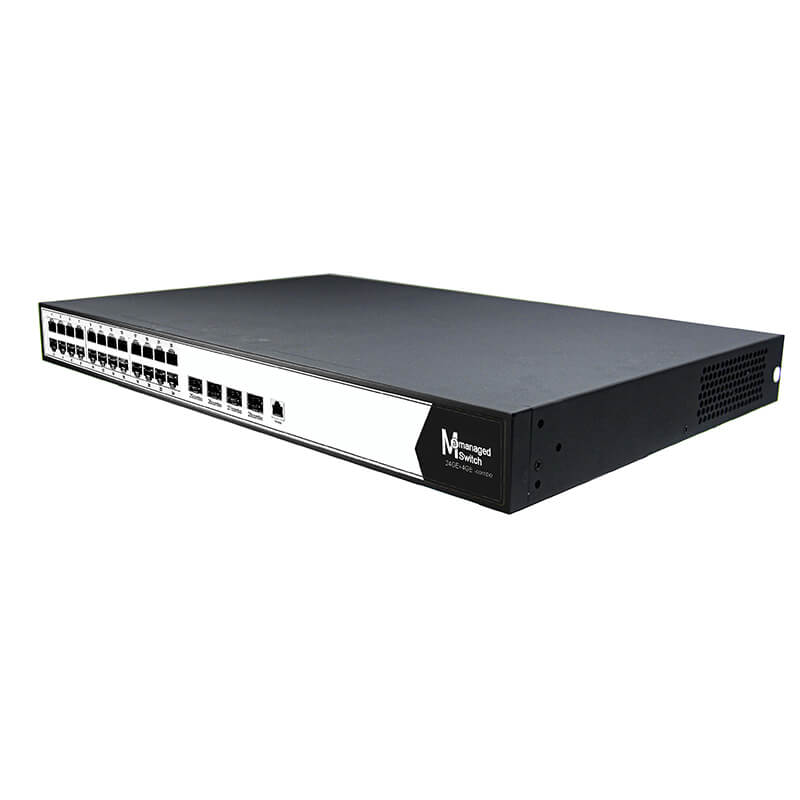

Commercial L2 Managed Ethernet Switch With 24*10/100/1000Base-T PoE Ports + 4*10G Base-X SFP Slots - Image 3

High-Performance & Dependable Ethernet Equipment for modern IoT & connectivity

Equipped with 24*10/100/1000Base-T auto-negotiation Ethernet copper ports
Features 4*10G Base-X SFP optical ports
Supports straight-through/crossover cable (MDI/MDI-X) auto-adaptation
Supports full-duplex/half-duplex auto-adaptation
128G backplane bandwidth enables high-speed and smooth data switching
Built-in power supply design ensures stability and reliability, with a wide input voltage range of 100-240V
Equipped with lightning protection, surge protection, short-circuit protection, over-voltage and under-voltage protection for safe and reliable operation
Sleek and compact design, plug-and-play, with simple maintenance
(Optional) Supports IEEE802.3af/at PoE standards, with a maximum single-port output power of 30W
(Optional) Supports PoE port priority
(Optional) PoE power supply mode: 1, 2 (+) / 3, 6 (-)

Order & Quote

SKU: SH-M7424Categories: Enterprise L2 Managed Switch, Enterprise Network

Model

Clear

View Cart

Worldwide delivery is available with free shipping
3-Year Warranty | 30-Day Returns | 30-Day Exchange
Quality certifications, get detail Compliance Center

Quality Certifications

The recycling symbol signals that products or packaging are designed for recyclability, aligning with global waste management practices to promote sustainability.

RoHS compliance restricts the use of hazardous substances like lead and mercury in electronics, protecting human health and minimizing environmental impact.

FCC certification ensures electronic devices sold in the US meet electromagnetic and radio frequency standards, safeguarding against communication signal interference.

The CE mark confirms that products comply with EU safety, health, and environmental regulations, allowing seamless market access across the European Economic Area.

Description

The SH-M7424 series switches are Layer 2 commercial managed ethernet switches (with PoE functionality) independently developed by Shenzhen Shanhai Communications. They are equipped with 24*10/100/1000Base-T auto-negotiation RJ45 ports and 4*SFP+ 10G optical ports. Each RJ45 port supports MDI/MDIX auto-crossover and wire-speed forwarding.

Ports 1 to 24 all support PoE power supply, complying with the IEEE802.3af/at standards. As Power over Ethernet (PoE) devices, they can automatically detect and identify standard-compliant powered devices (PDs) and supply power to them via network cables.

Adopting the store-and-forward mode and integrating QoS technology, these switches ensure effective bandwidth allocation to each port, providing stable and reliable power supply and data transmission for security monitoring devices such as high-power APs, network cameras, PTZ network dome cameras, and PoE lighting.

Buying Guide

Model	Specifications
SH-M7424	4x SFP 10G optical ports + 24x 10/100/1000Base-T auto-negotiation copper ports, AC 100-240V 50/60Hz
SH-M7424T	4x SFP 10G optical ports + 24x 10/100/1000Base-T auto-negotiation PoE copper ports, AC 100-240V 50/60Hz

Hardware Parameters

Ports

Parameter	Details
Port	24x 10/100/1000Base-TX RJ45 ports (Data); 4x 10G Base-FX SFP+ optical ports

Switching Performance

Parameter	Details
Backplane bandwidth	128G
Packet forwarding rate	95.23Mpps
MAC address table	16K
Packet buffer	12M cache
FLASH	128M
RAM	128M
Store-and-forward	Supported

Standard Protocols

Parameter	Details
Supported Protocols	IEEE 802.3x IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z IEEE 802.3ad IEEE 802.3q, IEEE 802.3q/p IEEE 802.1w, IEEE 802.1d, IEEE 802.1S IEEE 802.3z 1000BASE-X STP (Spanning Tree Protocol) RSTP/MSTP (Rapid Spanning Tree Protocol) EPPS ring network protocol EAPS ring network protocol

Transmission Media and Distance

Parameter	Details
10BASE-T	Cat3, 4, 5 UTP (≤250 meters)
100BASE-TX	Cat5 or later UTP (≤100 meters)
1000BASE-TX	Cat6 or later UTP (≤100 meters)
1000BASE-SX	62.5μm/50μm MMF (2m~550m)
1000BASE-LX	62.5μm/50μm MMF (2m~550m) or 10μm SMF (2m~5000m)

Power Supply

Parameter	Details
Power Supply Type	Built-in switching power supply, AC 100~240V 50/60Hz

Indicators

Parameter	Details
PWR	Power connection indicator
SYS	System indicator
1~28	Network connection indicators (10/100/1000M)

Operating Environment

Parameter	Details
Operating temperature	-20~55℃
Storage temperature	-40~75℃
Operating humidity	5~90% (non-condensing)
Storage humidity	5~95% (non-condensing)

Physical Characteristics

Parameter	Details
Product dimensions	440mm245mm44mm
Packaging dimensions	515mm300mm95mm
Net weight	2.2kg
Gross weight	2.9kg

Software Features

Item	Specification
Protocol Standards	IEEE 802.3x IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z IEEE 802.3ad IEEE 802.3q, IEEE 802.3q/p IEEE 802.1w, IEEE 802.1d, IEEE 802.1S, IEEE 802.1X
MAC Address Table	Supports 16K MAC address table with automatic update and bidirectional learning
VLAN Configuration	Supports port-based VLAN Supports up to 4096 VLANs Supports Voice VLAN, enabling QoS configuration for voice data Supports 802.1Q standard VLAN
Spanning Tree	Supports STP (Spanning Tree Protocol) Supports RSTP (Rapid Spanning Tree Protocol) Supports MSTP (Multiple Spanning Tree Protocol) Supports EPPS ring network protocol Supports EAPS ring network protocol Supports 802.1x authentication protocol
Port Aggregation	Supports 8 groups of aggregation, with up to 8 ports per group
Port Mirroring	Supports bidirectional (transmit and receive) port mirroring
Loop Protection	Supports loop protection function, including real-time detection, rapid alarm, accurate positioning, intelligent blocking, and automatic recovery
Port Isolation	Supports mutual isolation of downlink ports while enabling communication with uplink ports
Port Flow Control	Half-duplex: Based on backpressure control Full-duplex: Based on PAUSE frames
Port Rate Limiting	Supports port-based inbound/outbound bandwidth management
Multicast Control	IGMPv1/2/3 and MLDv1/2 Snooping Supports GMRP protocol registration Multicast address management, multicast VLAN, multicast routing ports, static multicast addresses
DHCP	Supports DHCP Snooping
Storm Suppression	Supports suppression of unknown unicast, multicast, unknown multicast, and broadcast storms Storm suppression based on bandwidth adjustment and storm filtering
Security Features	Supports user port + IP address + MAC address binding IP-based and MAC-based ACL Supports port-based security based on the number of MAC addresses
QoS	802.1p port queue priority algorithm CoS/Tos, QoS marking WRR (Weighted Round Robin) algorithm Supports three priority scheduling modes: WRR, SP (Strict Priority), and WFQ (Weighted Fair Queuing)
Network Cable Sequence	Supports Auto-MDIX function, automatically identifying straight-through and crossover cables
Negotiation Mode	Ports support auto-negotiation (for transmission rate and duplex mode)
System Maintenance	Supports upgrade package upload Supports system log viewing Supports factory reset via WEB interface
Network Management	Supports WEB interface management CLI management via Telnet, TFTP, and Console Supports SNMP V1/V2/V3 management Supports RMONv1/V2 management RMON management supported
