SH-312

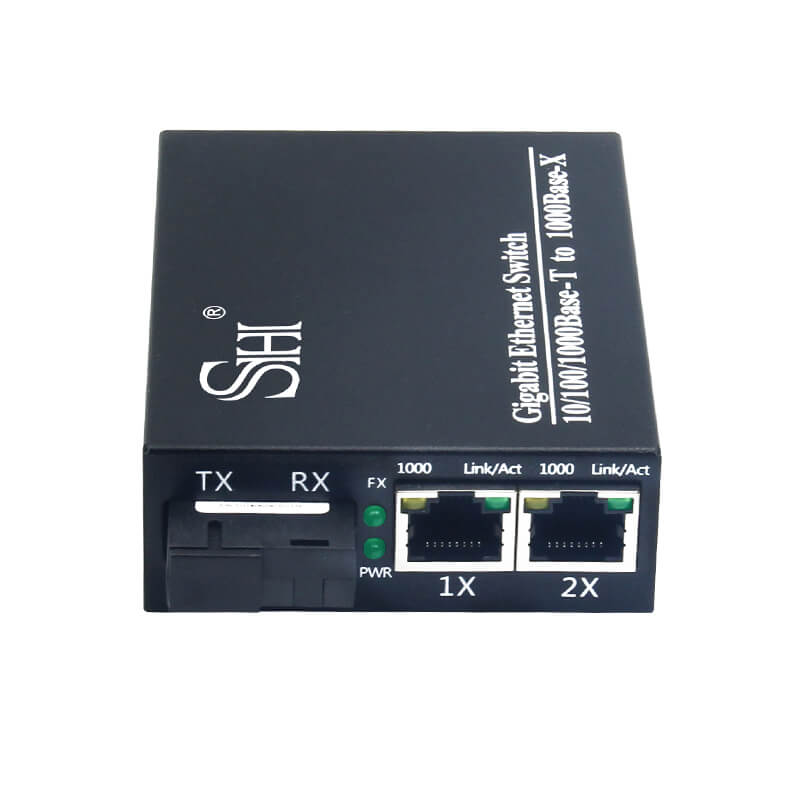

Commercial Media Converter With 2*10/100/1000Base-T RJ45 Ports + 1*1000Base-X Ports

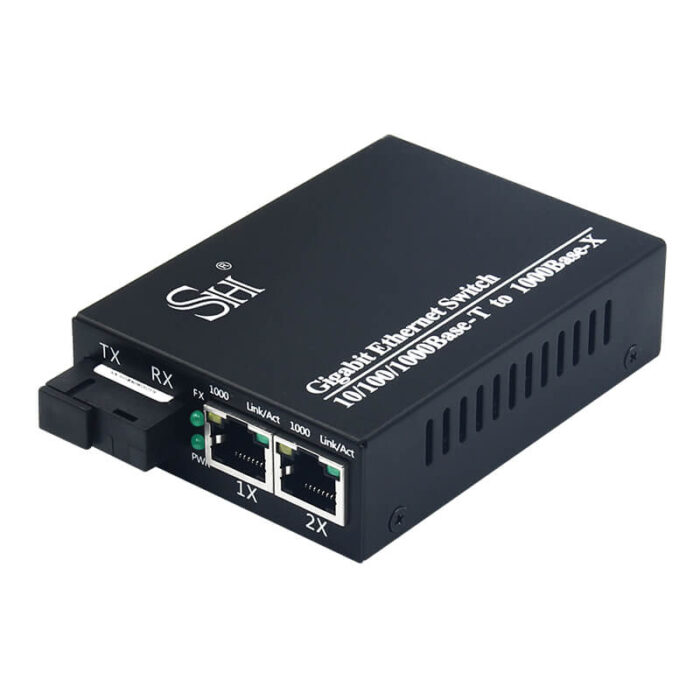

Commercial Media Converter With 2*10/100/1000Base-T RJ45 Ports + 1*1000Base-X Ports - Image 2

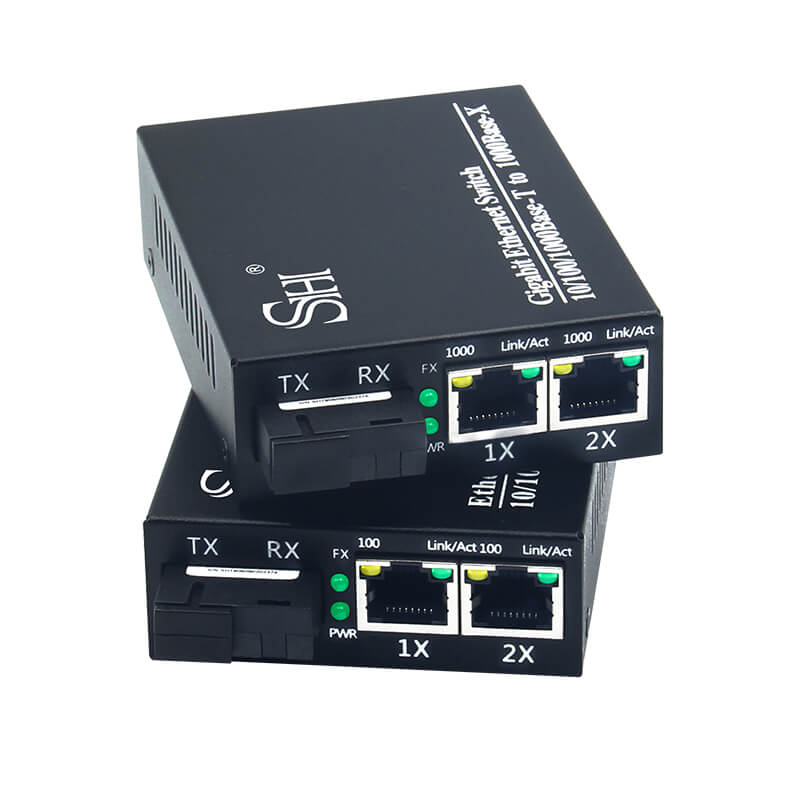

Commercial Media Converter With 2*10/100/1000Base-T RJ45 Ports + 1*1000Base-X Ports - Image 3

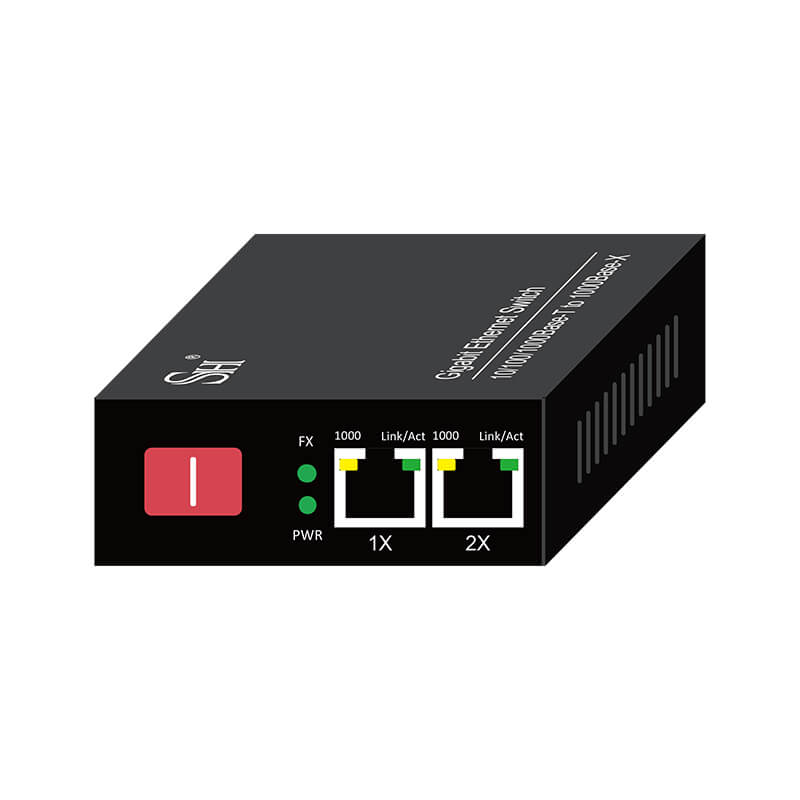

Commercial Media Converter With 2*10/100/1000Base-T RJ45 Ports + 1*1000Base-X Ports - Image 4

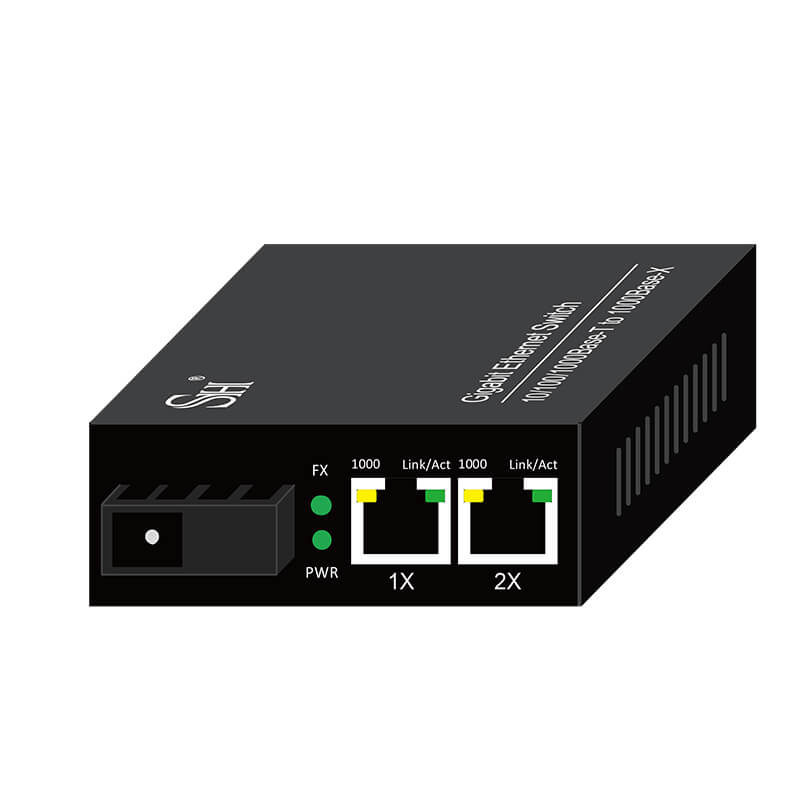

Commercial Media Converter With 2*10/100/1000Base-T RJ45 Ports + 1*1000Base-X Ports - Image 5

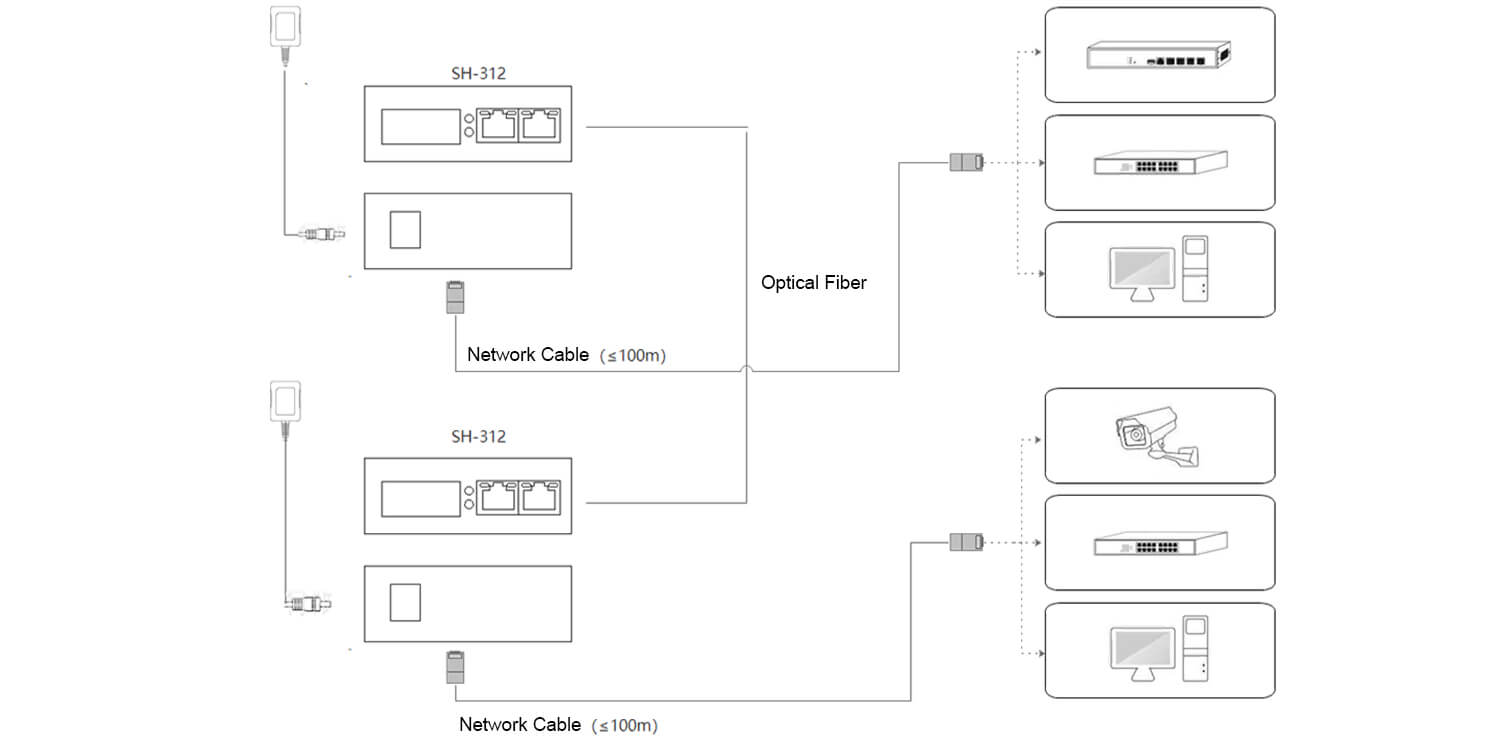

Commercial Media Converter With 2*10/100/1000Base-T RJ45 Ports + 1*1000Base-X Ports - Image 6
Categories: ,

Commercial Media Converter With 2*10/100/1000Base-T RJ45 Ports + 1*1000Base-X Ports

Feature
  • 2 x 10/100/1000Base-T Auto-Negotiating RJ45 Ports
  • Full/Half-Duplex Auto-Negotiation
  • MDI/MDI-X Auto-Crossover Support
  • 1 x 1000Base-X SFP Port
  • SC/ST/FC Optical Interfaces (Optional)
  • SFP Module Compatible (Optional)
  • Mounting Options: Desktop, Wall-Mountable, 14-Slot Rack
  • DC 5/12V Power Input
  • External Power Adapter with 100~240V Wide-Range Input
  • Plug-and-Play, Easy Maintenance

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

free delivery

Get free delivery in most regions. Only a few areas have extra shipping fees for your order.

secure payments

Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.

Return Policy

We stand by our products. You can return any item within 30 days if you’re not completely satisfied.

official products

All our products are sourced directly from official channels, offering you genuine items of the highest quality.

Product Detail

Description

The SH-312 series commercial media converter offers 2 x 10/100M/1000Base-T auto-negotiating RJ45 ports and 1 x 1000M SFP Base-X port. Compliant with international standards such as IEEE 802.3, these converters ensure seamless interoperability with network devices from other brands (e.g., switches, routers). As a cost-effective network extension solution, they are ideal for high-speed networks in enterprises, campuses, and HD surveillance systems for smart cities, traffic monitoring, and security applications.

Order Guide

Model Specifications
SH-312M-31 Commercial Media Converter With 2*10/100/1000Base-T RJ45 Ports + 1*1000Base-X Ports, Multi-Mode 1310nm 2KM SC, DC5V External Power Supply
SH-312S-20 Commercial Media Converter With 2*10/100/1000Base-T RJ45 Ports + 1*1000Base-X Ports,  Single-Mode 1310nm 20KM SC, DC5V External Power Supply
SH-S312-3A Commercial Media Converter With 2*10/100/1000Base-T RJ45 Ports + 1*1000Base-X Ports,  Single-Mode Single-Fiber T1310/R1550nm 3KM SC, DC5V External Power Supply
SH-S312-3B Commercial Media Converter With 2*10/100/1000Base-T RJ45 Ports + 1*1000Base-X Ports, Single-Mode Single-Fiber T1550/R1310nm 3KM SC, DC5V External Power Supply
SH-S312-20A Commercial Media Converter With 2*10/100/1000Base-T RJ45 Ports + 1*1000Base-X Ports,  Single-Mode Single-Fiber T1310/R1550nm 20KM SC, DC5V External Power Supply
SH-S312-20B Commercial Media Converter With 2*10/100/1000Base-T RJ45 Ports + 1*1000Base-X Ports,  Single-Mode Single-Fiber T1550/R1310nm 20KM SC, DC5V External Power Supply
Technical Specifications



Standard Description
IEEE802.3 Ethernet Protocol
IEEE802.3i 10Base-Tx
IEEE802.3u 100Base-Tx/Fx
IEEE802.3z 1000Base-X
IEEE802.3ab 1000Base-T
IEEE802.3x Flow Control

Parameter Specification
Ports 2*10/100/1000M Auto-Negotiation
Interface RJ45

Standard Distance
100/1000Base-T ≤100 meters
10Base-T ≤250 meters

Parameter Specification
Quantity 1*1000M
Interface SC/FC/ST/LC (SFP)
Fiber Type Multi-Mode/Single-Mode

Fiber Type Distance
Multi-Mode ≤550m @850nm, ≤2km @1310nm
Single-Mode (Dual-Fiber) 3–60km @1310nm, 60–120km @1550nm
Single-Mode (Bi-Directional) 3–60km @1310/1550nm, 60–120km @1490/1550nm

Parameter Specification
Voltage DC 5–12V
Current ≤1A
Power Consumption ≤2W (idle), ≤3W (full load)
Interface 1 x 5.5×2.5mm DC Jack

Parameter Specification
Operating Temperature 0°C–65°C
Operating Humidity 5%–90% (Non-Condensing)
Storage Temperature -40°C–85°C
Storage Humidity 5%–95% (Non-Condensing)

Parameter Specification
Housing Metal Extrusion
Dimensions 94×71×26mm
Weight 0.2kg
Mounting Options Desktop, Wall-Mountable, 14-Slot Rack Compatible

Parameter Specification
LED Indicators Power, Optical Port Link/Act, Ethernet Port Link/Act, Ethernet Speed
MTBF 500,000 Hours
Technical Specifications

Quality Certifications

additional information

Model

SH-312M-31, SH-312S-20, SH-S312-3A, SH-S312-3B, SH-S312-20A, SH-S312-20B
