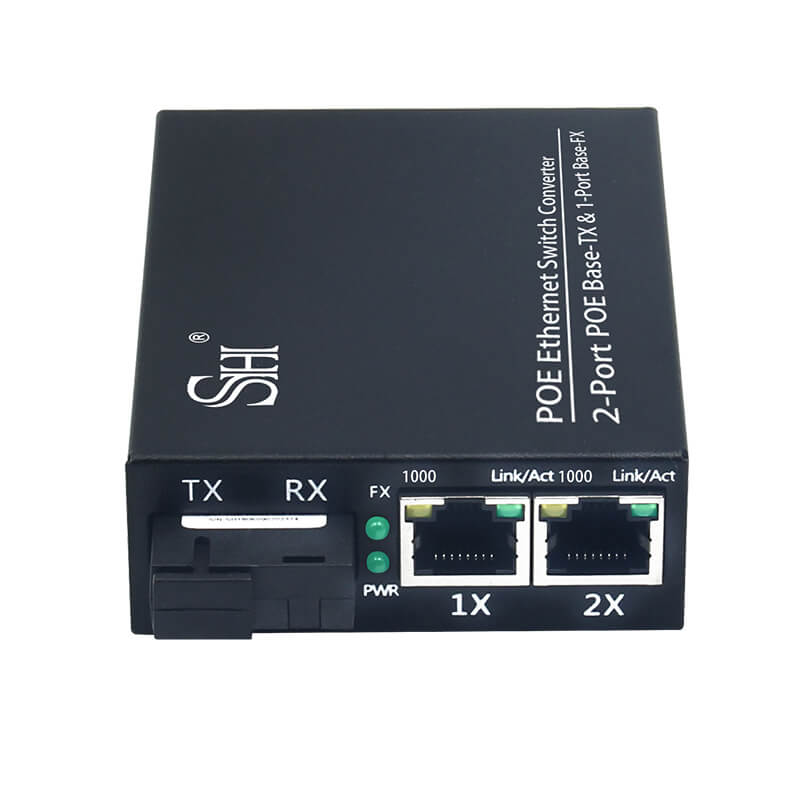

SH-312T

Commercial PoE Media Converter With 2*10/100/1000Base-T RJ45 PoE Ports + 1*100/1000Base-X SFP Ports

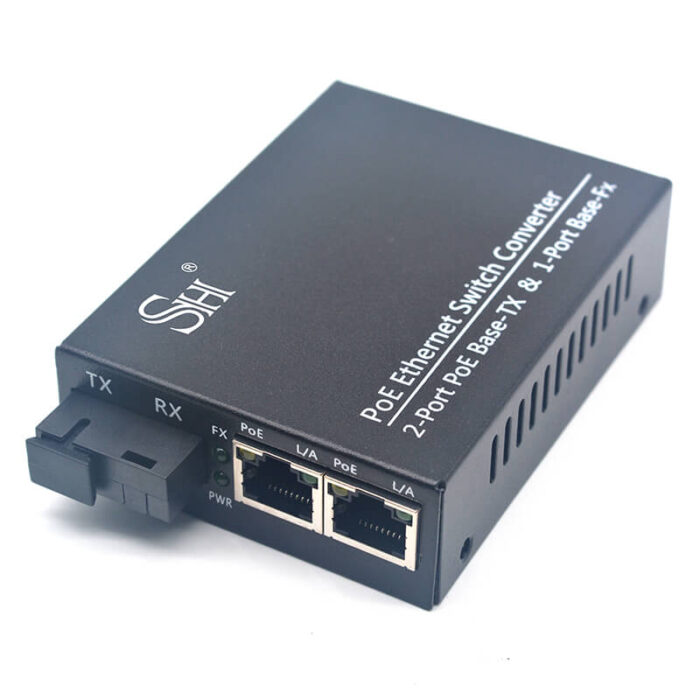

Commercial PoE Media Converter With 2*10/100/1000Base-T RJ45 PoE Ports + 1*100/1000Base-X SFP Ports - Image 2
Categories: ,

Commercial PoE Media Converter With 2*10/100/1000Base-T RJ45 PoE Ports + 1*100/1000Base-X SFP Ports

Feature
  • 2 x 10/100/1000Base-T Auto-Negotiating RJ45 Ports
  • Full/Half-Duplex Auto-Negotiation
  • MDI/MDI-X Auto-Crossover Support
  • IEEE802.af POE & IEEE802.3at POE+ Compliant
  • Single-Port Max 30W POE Output
  • 1 x 100/1000Base-X SFP Optical Port
  • LC/SC/ST/FC Optical Interfaces (Optional)
  • DC 5/12V Power Input
  • Plug-and-Play, Easy Maintenance
  • Link Fault Pass-Through (LFP) Function (Optional)

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

free delivery

Get free delivery in most regions. Only a few areas have extra shipping fees for your order.

secure payments

Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.

Return Policy

We stand by our products. You can return any item within 30 days if you’re not completely satisfied.

official products

All our products are sourced directly from official channels, offering you genuine items of the highest quality.

Product Detail

Description

The SH-312T series commercial-grade PoE media converters provides 2 x 10/100/1000Base-T auto-negotiating RJ45 ports and 1 x100/ 1000Base-X SFP port. Compliant with international standards such as IEEE 802.3, these converters ensure full compatibility with network devices from other brands (e.g., switches, routers). As cost-effective network access solutions, they are ideal for high-speed networks in enterprises, campuses, and HD surveillance systems for smart cities, traffic monitoring, and security applications.

Industrial-Grade POE Functionality
The SH-312T series also supports POE output, enabling power supply to front-end PD devices such as IP cameras and wireless APs. This makes them suitable for scenarios where traditional cable wiring is challenging, enhancing flexibility in network deployment.

Order Guide

Model Specifications
SH-312TM-550 Commercial PoE Media Converter With 2*10/100/1000Base-T RJ45 PoE Ports + 1*100/1000Base-X SFP Ports, Desktop-Mount, Multi-Mode Duplex, 550m, 1310nm SC, 52V Power Adapter
SH-312TS-20 Commercial PoE Media Converter With 2*10/100/1000Base-T RJ45 PoE Ports + 1*100/1000Base-X SFP Ports, Desktop-Mount, Single-Mode Duplex, 20km, 1310nm SC, 52V Power Adapter
SH-312TS-40 Commercial PoE Media Converter With 2*10/100/1000Base-T RJ45 PoE Ports + 1*100/1000Base-X SFP Ports, Desktop-Mount, Single-Mode Duplex, 40km, 1310nm SC, 52V Power Adapter
SH-312TS-60 Commercial PoE Media Converter With 2*10/100/1000Base-T RJ45 PoE Ports + 1*100/1000Base-X SFP Ports, Desktop-Mount, Single-Mode Duplex, 60km, 1310nm SC, 52V Power Adapter
SH-312TS-80 Commercial PoE Media Converter With 2*10/100/1000Base-T RJ45 PoE Ports + 1*100/1000Base-X SFP Ports, Desktop-Mount, Single-Mode Duplex, 80km, 1550nm SC, 52V Power Adapter
SH-312TS-A0 Commercial PoE Media Converter With 2*10/100/1000Base-T RJ45 PoE Ports + 1*100/1000Base-X SFP Ports, Desktop-Mount, Single-Mode Duplex, 100km, 1550nm SC, 52V Power Adapter
Technical Specifications

Standard Description
IEEE802.3 Ethernet Protocol
IEEE802.3i 10Base-Tx
IEEE802.3u 100Base-Tx/Fx
IEEE802.3z 1000Base-X
IEEE802.3ab 1000Base-T
IEEE802.3x Flow Control
IEEE802.3af/at POE/POE+

Type Specification
Copper Ports 2 x 10/100/1000M RJ45
Optical Port 1 x 1000M SC/FC/ST or 1 x 1000M SFP Slot

Standard Distance
100/1000Base-T ≤100m
10Base-T ≤250m

Fiber Type Wavelengths Transmission Distance
Multi-Mode 850nm, 1310nm 550m/2km
Single-Mode 1310nm, 1550nm 3km~120km
Bi-Directional 1310/1550nm, 1490/1550nm —

Parameter Specification
Input Voltage DC 48V–54V
Output Power Max 30W per port
Power Pairs 1/2(+); 3/6(-)

Parameter Specification
Voltage (Non-POE) DC 5–12V
Voltage (POE) DC 48–54V
Power Consumption ≤1.5W (idle), ≤4.5W (full load, excluding POE)
Interface 6-Pin 5.08mm Terminal Block, 1 x 5.5×2.5mm DC Jack
Redundancy Supported
Reverse Polarity Protection Supported

Parameter Specification
Operating Temperature 0°C–65°C
Operating Humidity 5%–90% (Non-Condensing)
Storage Temperature -40°C–85°C
Storage Humidity 5%–95% (Non-Condensing)

Parameter Specification
Housing Metal Extrusion
Dimensions 94×71×26mm
Mounting Options Desktop, Wall-Mountable

Test Standard Specification
ESD Protection (IEC61000-4-2) Level 1
Air Discharge: ±2KV, Contact Discharge: ±2KV
Radiated Immunity (IEC61000-4-3) Compliant
EFT/Burst (IEC61000-4-4) Level 3
Power: ±2KV, Signal: ±1KV
Surge Protection (IEC61000-4-5) Level 3
Power: ±1KV (Differential), ±2KV (Common Mode)
Signal: ±1KV (Differential), ±2KV (Common Mode)

Parameter Specification
LED Indicators Power, Optical Port Link/Act, Ethernet Port Link/Act, Ethernet Speed
MTBF 500,000 Hours

Quality Certifications

additional information

Model

SH-312TM-550, SH-312TS-20, SH-312TS-40, SH-312TS-60, SH-312TS-80, SH-312TS-A0
