SH-G0016

Industrial Unmanaged Ethernet Switch With 16*10/100Base-T RJ45 Ports
Industrial Unmanaged Ethernet Switch With 16*10/100Base-T RJ45 Ports - Image 2
Industrial Unmanaged Ethernet Switch With 16*10/100Base-T RJ45 Ports - Image 3
Industrial Unmanaged Ethernet Switch With 16*10/100Base-T RJ45 Ports - Image 4
Industrial Unmanaged Ethernet Switch With 16*10/100Base-T RJ45 Ports - Image 5
Categories: ,

Industrial Unmanaged Ethernet Switch With 16*10/100Base-T RJ45 Ports

Feature
  • 16*10/100M auto-sensed RJ45 Ethernet ports.
  • Full/half-duplex auto-sensed.
  • MDI/MDI-X auto-sensed.
  • Complies with the industrial protection level IP40.
  • Lightning protection and anti-static protection.
  • DIN rail mounting.
  • Operates within a wide temperature range of -40°C to +85°C.
  • Wide input voltage range of DC 12-54V with dual-power redundancy.
  • Boasts low power consumption and heat dissipation, along with a fanless design.

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

free delivery

Get free delivery in most regions. Only a few areas have extra shipping fees for your order.

secure payments

Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.

Return Policy

We stand by our products. You can return any item within 30 days if you’re not completely satisfied.

official products

All our products are sourced directly from official channels, offering you genuine items of the highest quality.

Product Detail

Description

The SH-G0016 industrial unmanaged ethernet switch provide 16*10/100M auto-sensed Ethernet ports. It is specifically designed for network connections in harsh environments, featuring a wide working temperature range from -40°C to +85°C, fanless design, compact structure, and DIN rail mounting. It is widely used for data transmission in many industries such as transportation, telecommunications, security, banking, customs, ports, power stations, and oil fields.

Ording Guide
Model Specification
SH-G0016 Industrial Unmanaged Ethernet Switch 16*10/100Base-T Ports, Dual Redundant Power Inputs (DC 12V–54V), DIN Rail Mounting, Operating Temperature (-40°C~+85°C)
Technical specifications

Standard Description
IEEE802.3 Ethernet Protocol
IEEE802.3i 10Base-Tx
IEEE802.3u 100Base-Tx/Fx
IEEE802.3x Flow Control
IEEE802.3af/at POE/POE+

Feature Specification
Ethernet Ports 16 x 10/100M RJ45
Transmission Distance ≤100m @100Base-T; ≤250m @10Base-T

Feature Specification
Backplane Bandwidth 3.2G
MAC Address Table 16K
Forwarding Rate 2.38Mpps
Store-and-Forward Supported

Feature Specification
Voltage DC 12V–54V
Power Consumption ≤1W (Idle); ≤3.5W (Full Load)
Interface 6-Pin 5.08mm Terminal Block
Redundancy Supported
Reverse Polarity Protection Supported

Feature Specification
Operating Temperature -40°C–85°C
Operating Humidity 5%–90% (Non-Condensing)
Storage Temperature -40°C–95°C
Storage Humidity 5%–95% (Non-Condensing)

Feature Specification
Housing Metal Extrusion
Protection Rating IP40
Dimensions 153×113×50mm
Net Weight 0.6kg
Mounting DIN Rail

Feature Specification
ESD Protection IEC61000-4-2 Level 3
Air Discharge ±8KV; Contact Discharge: ±6KV
Radiated Immunity IEC61000-4-3
EFT/Burst IEC61000-4-4 Level 3
Power ±2KV; Signal: ±1KV
Surge Protection IEC61000-4-5 Level 3
Power ±2KV (Differential), ±4KV (Common Mode)
Signal ±2KV (Differential), ±6KV (Common Mode)

Feature Specification
LED Indicators Power, Ethernet Port Link/Act, Ethernet Speed
MTBF 500,000 Hours

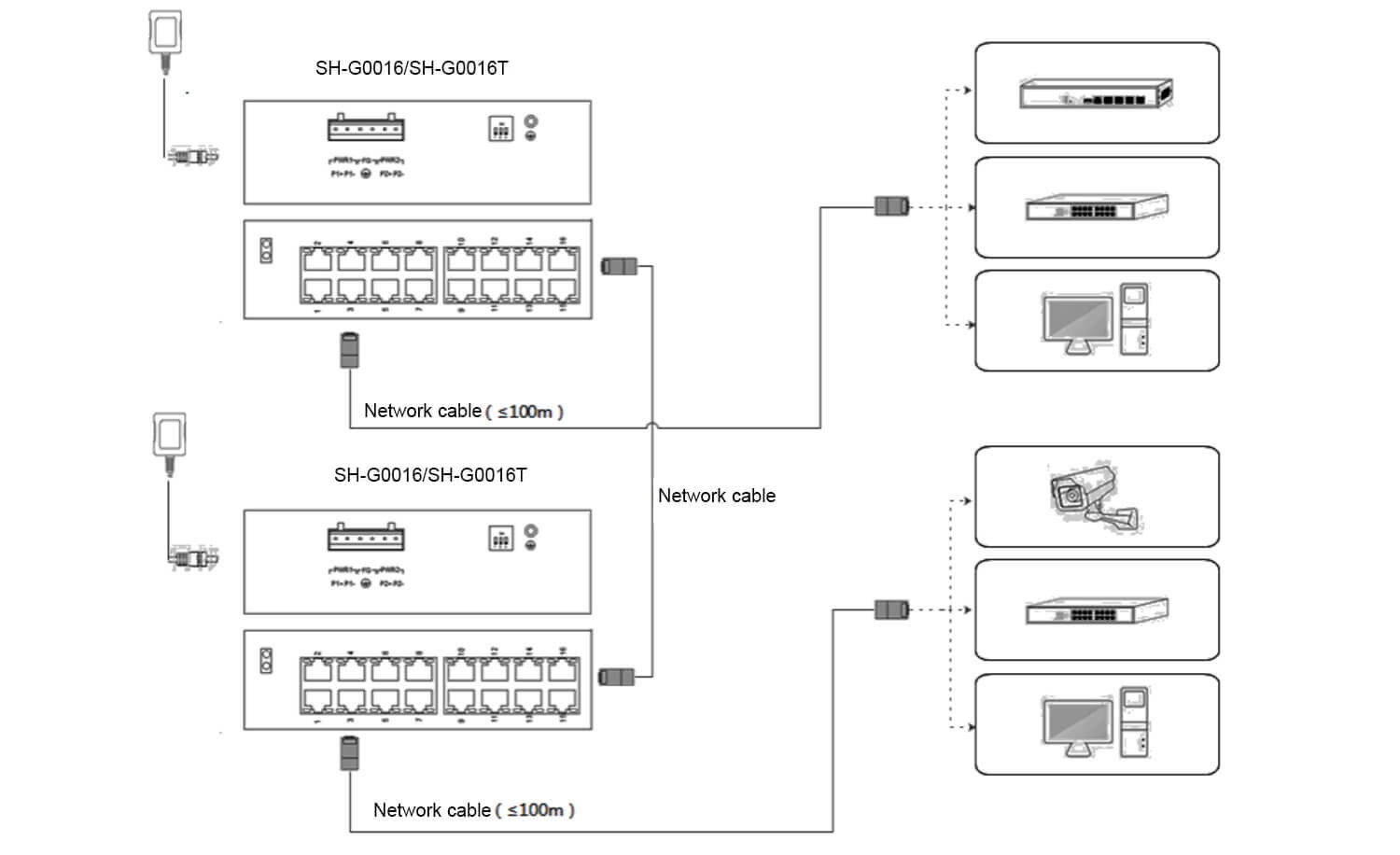

Applications

Quality Certifications

additional information

Model

SH-G0016, SH-G0016T
