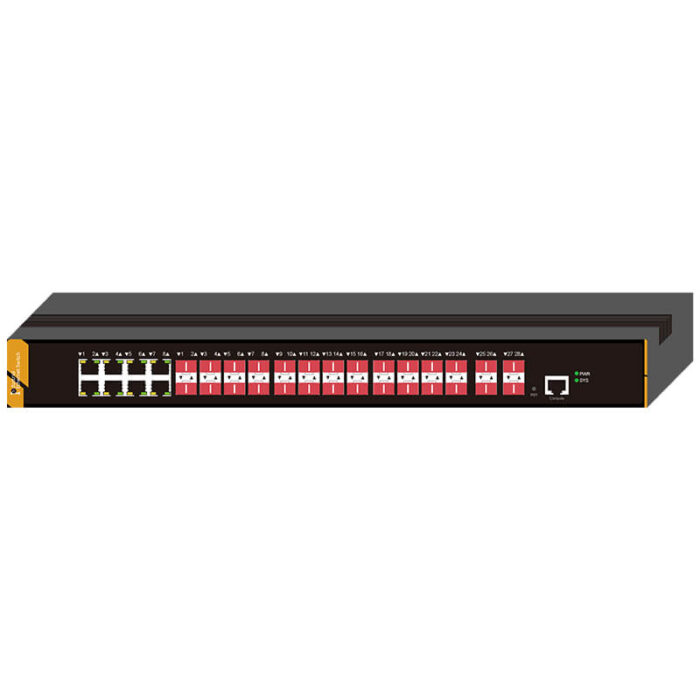

SH-GMR481600

Industrial L3 Managed Switch 1610/100/1000Base-X SFP Slots + 410G SFP+ Slots+8 COMBO Ports

High-Performance & Dependable Ethernet Equipment for modern IoT & connectivity

16 x 10/100/1000Base-X SFP slots
8 sets of Gigabit COMBO ports
4 x 10G SFP slots, supporting 100M/1000M/10G SFP modules
Complies with standard Ethernet protocols such as IEEE802.3
Supports STP/RSTP/MSTP network redundancy protocols
Supports IGMP snooping/MLD Snooping for multicast packet filtering
Supports SNMP v2c/v3 & 802.1Q VLAN network management
Supports multiple Layer 3 switching functions (Static Routing/RIP/OSPF)
Manageable and configurable via Web, Telnet, Console(CLI), SNMP, etc.
Fanless design with high-strength metal housing

Order & Quote

SKU: SH-GMR481600Categories: Industrial L3 Managed Switch, Industrial Network

Worldwide delivery is available with free shipping
3-Year Warranty | 30-Day Returns | 30-Day Exchange
Quality certifications, get detail Compliance Center

Quality Certifications

The recycling symbol signals that products or packaging are designed for recyclability, aligning with global waste management practices to promote sustainability.

RoHS compliance restricts the use of hazardous substances like lead and mercury in electronics, protecting human health and minimizing environmental impact.

FCC certification ensures electronic devices sold in the US meet electromagnetic and radio frequency standards, safeguarding against communication signal interference.

The CE mark confirms that products comply with EU safety, health, and environmental regulations, allowing seamless market access across the European Economic Area.

Description

SH-GMR481600 Industrial-Grade Layer 3 Managed Switch, featuring 16 10/100/1000M SFP slots, 8 sets of COMBO ports and 4 10G SFP+ slots, supports ERPS ring network, IPv4/IPv6 hardware dual stack and wire-speed forwarding for seamless adaptation to the IPv6 era; while delivering high-capacity switching capability, it supports various Layer 2 software features (port mirroring, VLAN, port aggregation, IGMP Snooping, QoS, STP/RSTP/MSTP, etc.) and multiple Layer 3 routing protocols (static routing/RIP/OSPF/VRRP); with an operating temperature range of -40~+85℃, it ensures stable operation in harsh environments; moreover, it can be managed and configured via Web, Telnet, Console(CLI) and SNMP, widely used in industrial application scenarios such as industrial control automation, road traffic control automation, building automation systems, mine automation systems, oilfield control automation, hydropower station control automation, power system control automation and equipment room monitoring systems.

Buying Guide

Model	Specification
SH-GMR481600	10G Layer 3 Managed Industrial-grade Ring Network Switch, 4 x 10G SFP+ optical ports + 8 sets of COMBO ports + 16 x 1000Base-X SFP slots, ERPS ring network and L3 management, AC 100~240V/DC 18-54V, -40~+85℃.

Hardware Parameters

Ports

Port Type	Specifications
Optical Ports	16 x 1000M SFP slots
	4 x 10GBase-X SFP+ slots
	Wavelengths：
	– Multi-mode: 850nm, 1310nm
	– Single-mode: 1310nm, 1550nm
	– Bi-directional: 1310/1550nm, 1490/1550nm
	Transmission Distance：
	– Multi-mode: 550m / 2km; Single-mode: 3km ~ 120km
COMBO Ports	8 sets
CONSOLE Port	1 x RJ45 port

Switching Features

Parameter	Details
Switching Capacity	128G
MAC Address Table	16K
Packet Buffer	12M
Packet Forwarding Rate	95.232Mpps
Store-and-Forward	Supported

Power Supply

Parameter	Details
Input Voltage	DC 220V-380V; AC 165V-265V
Power Consumption	<36W (excluding POE)
Interface	3-pin 5.08mm pitch terminal block
Power Redundancy	Supported
Reverse Polarity Protection	Supported

Environmental Specifications

Parameter	Details
Operating Temperature	-40℃ – +85℃
Operating Humidity	5%-95% (non-condensing)

Mechanical Structure

Parameter	Details
Housing	Metal extrusion
Protection Rating	IP40
Dimensions	Standard 1U, depth 275mm
Net Weight	3.75kg
Mounting	Rack-mounted

Safety & Compliance

Parameter	Details
ESD Protection (IEC61000-4-2 Level 3)	Air discharge: ±8KV; Contact discharge: ±6KV
EFT (IEC61000-4-4 Level 2)	–
Surge Protection (IEC61000-4-5 Level 3)	–

Reliability

Parameter	Details
LEDs	Power indicator, Optical port Link/Act indicator, System status indicator

Software Parameters

Protocol Standards

Standard	Description
IEEE802.3	Ethernet protocol
IEEE802.3u	100Base-Tx/Fx
IEEE802.3z	1000Base-X
IEEE802.3ae	10GBase-X
IEEE802.3x	Flow control
IEEE802.3ad	LACP (Link Aggregation Control Protocol)
IEEE802.1p	CoS (Class of Service)
IEEE802.1q	VLAN (Virtual Local Area Network)
IEEE802.1d	STP (Spanning Tree Protocol)
IEEE802.1w	RSTP (Rapid Spanning Tree Protocol)
IEEE802.1x	Security authentication
IEEE802.1ab	LLDP (Link Layer Discovery Protocol)

Switching Features

Parameter	Details
Redundant Network	Supports STP/RSTP/MSTP and ERPS
Loop Protection	Supports proprietary loop protection protocol
ERPS	Supports single ring, tangent ring, intersecting ring, and multi-ring
MAC Address Table	Complies with IEEE 802.1q; supports automatic MAC address learning/aging, static/dynamic entries, and port address learning enable/disable
Mirroring	Supports port-based bidirectional mirroring, VLAN-based ingress mirroring, and flow-based ingress mirroring
Layer 2 Multicast	Supports IGMP v1/v2/v3 Snooping, source port checking, IGMP Fast Leave, IGMP Filter, IGMP Proxy, MLD Snooping, and static multicast entries
VLAN	Supports 4094 VLANs; port-based VLAN; access/trunk/hybrid ports
Voice VLAN	Supported
QinQ	Supports basic QinQ (port-based), VLAN-based QinQ, flow-based QinQ, and 1:1 VLAN Mapping
GVRP	Supported
GMRP	Supported
LLDP	Supported
Port Aggregation	Supports static aggregation and dynamic aggregation (LACP)
Port Features	Supports optical module diagnosis and adaptive optical modules
Static Routing	Supported
Dynamic Routing	Supports RIP, OSPF, ISIS, BGP
IPv6	Supports IPv6-based management and multiple IPv6 address configuration
VRRP	Supported

Security Features

Parameter	Details
QoS	Supports QoS re-marking, priority mapping, SP/WRR/SP+WRR scheduling, ingress rate limiting, ingress priority rate limiting, egress rate limiting, egress queue rate limiting, flow-based QoS, storm control; 8 queues per port
CoS	Supports traffic classification by service class (QoS) on Ethernet, with differentiated priorities
Routing Policies	Supports IP prefix lists, IP ACL, and Route-Map
IPv4	Supports static routing, VRRPv4, OSPF, RIP, ISIS, BGP
IPv6	Supports matching Layer 2 fields (MAC extended ACL), Layer 3 fields (IP standard/extended ACL), and all fields (expert ACL)
ACL	Supports matching Layer 2/3/4 fields; actions include log, redirect, mirror, rate limiting; supports IP ACL
AAA Authentication	Supported
Dot1x	Supports port-based 802.1x, user-based 802.1x, MAC-based authentication, and RADIUS service
IP Source Guard	Supports dynamic entries (from DHCP Snooping) and static entries (from configuration)
ARP Inspection	Supports dynamic entries (from DHCP Snooping), static entries (from configuration), and ARP Proxy
Port Security	Supported

Management Features

Parameter	Details
User Management	Supports login authentication
Management Functions	Supports Telnet, CLI, WEB, and SNMP
SNMP	Supports SNMPv1, SNMPv2c, SNMPv3
RMON	Supports statistics group, history group, alarm group, and event group
Web Management	Supports web management, HTTP v1.1, and HTTPS
Green Ethernet	Supports fan management and temperature management
IPv4/IPv6	Supports both IPv4 and IPv6
Security Functions	Supports DHCP Snooping, 802.1X, user-level management, ACL, DDoS protection, and port-based MAC filtering/binding
Port Management	Supports port enable/disable, speed setting, and 802.3x flow control

Application Features

Function	Details
DHCP Client	Supported
DHCP Snooping	Supports snooping table establishment and trusted ports
TFTP	Supports TFTP Client
Telnet	Supports Telnet Server
SSH	Supports SSH Server
Firmware Upgrade	Supported

Additional Information

Customize & Inquiry

We offer customized IoT Ethernet devices and quotes based on your order quantity. For customization or purchase needs, please send your requirements to us.

Product Datasheet

We provide the data sheet for our IoT Ethernet devices (including specs and protocol support) to help you check project compatibility. Add to cart for instant access.
