SH-GM0204T

Industrial Managed Ethernet Switch With 4101001000Base-T PoE Ports+ 21000Base-FX SFP Slots

High-Performance & Dependable Ethernet Equipment for modern IoT & connectivity

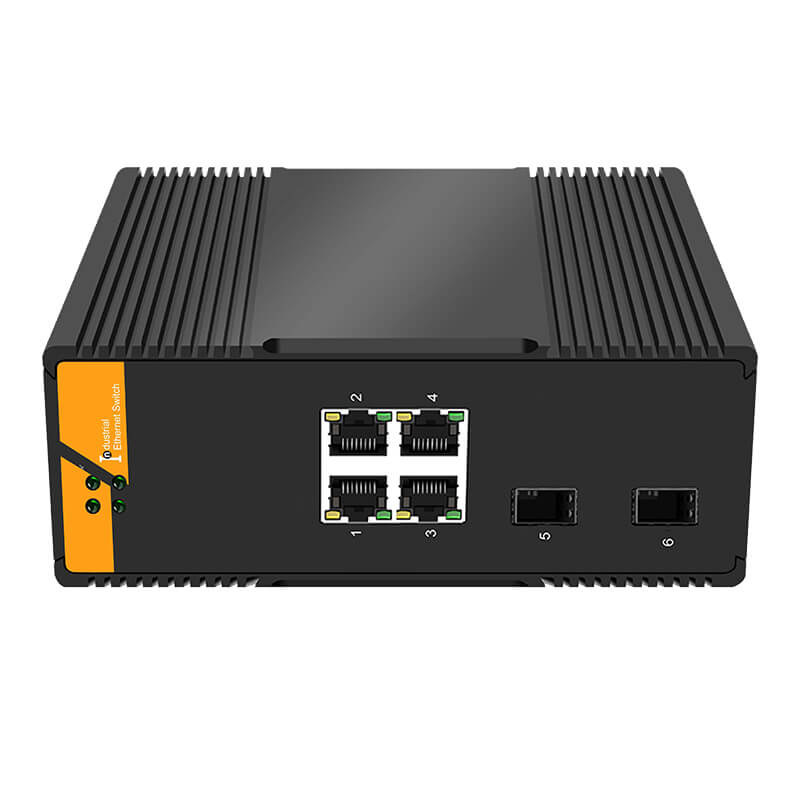

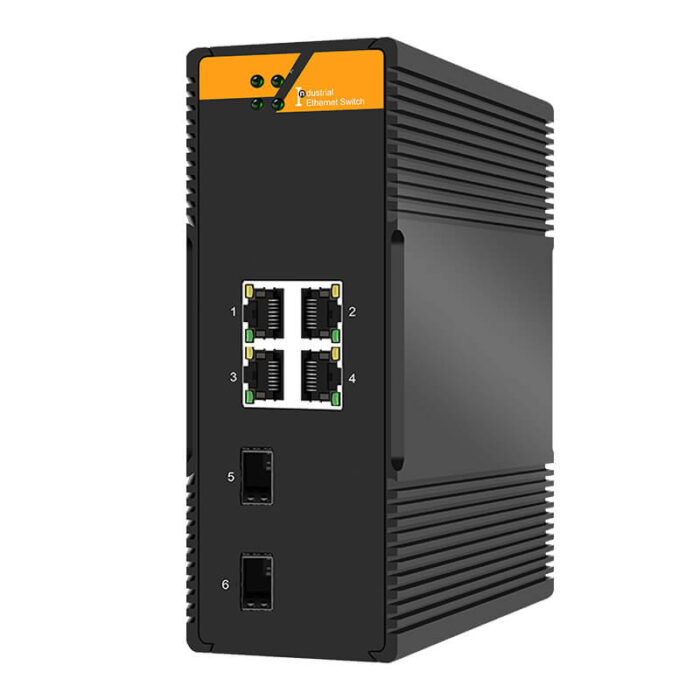

Provides 4*10/100/1000Base-T electrical ports
Equips 2 SFP slots, supporting the insertion of 100M SFP/1000M SFP modules
Supports standard Ethernet protocols such as IEEE802.3
Supports IEEE802.3af POE and IEEE802.3at POE+
Supports ITU-T G.8032 standard ERPS ring network protocol, with a self-healing time within 20ms
Supports STP/RSTP/MSTP network redundancy protocols
Supports IGMP v1/v2/v3 (IGMP snooping) multicast management
Supports SNMP v2c/v3 & 802.1Q VLAN network management
Allows management and configuration through multiple methods such as Web, Telnet, and Console (CLI)
Features a fanless design and a high-strength metal housing

Order & Quote

SKU: SH-GM0204TCategories: Industrial L2 Managed PoE Switch, Industrial Network

Worldwide delivery is available with free shipping
3-Year Warranty | 30-Day Returns | 30-Day Exchange
Quality certifications, get detail Compliance Center

Quality Certifications

The recycling symbol signals that products or packaging are designed for recyclability, aligning with global waste management practices to promote sustainability.

RoHS compliance restricts the use of hazardous substances like lead and mercury in electronics, protecting human health and minimizing environmental impact.

FCC certification ensures electronic devices sold in the US meet electromagnetic and radio frequency standards, safeguarding against communication signal interference.

The CE mark confirms that products comply with EU safety, health, and environmental regulations, allowing seamless market access across the European Economic Area.

Description

The SH-GM0204T industrial-grade managed ethernet switch provides 4*10/100/1000Base-T Ethernet POE ports and 2*1000Base-FX SFP slots. It supports ERPS ring network and one-click ring network setup, as well as the G.8032 ERPS Ethernet ring network protection switching protocol, with a self-healing time within 20ms. When a network failure occurs, it can quickly recover to ensure uninterrupted communication for critical applications. It supports a wide operating temperature range of -40~+85℃, ensuring stable operation of the device in harsh environments. In addition, it supports Layer 2 network management functions, allowing management and configuration of the device via Web, Telnet, Console (CLI), and SNMP. It is widely used in industrial application scenarios such as industrial control automation, road traffic control automation, building automation systems, mine automation systems, oilfield control automation, hydropower station control automation, power system control automation, and equipment room monitoring systems.

The SH-G0204T series industrial-grade POE switches also support POE output, providing power to front-end PD devices such as network cameras and wireless APs, and are suitable for occasions where traditional wire routing is inconvenient.

Hardware Specifications

Ports

Type	Specifications
Electrical ports	4 10/100/1000M RJ45 ports
	Transmission distance: ≤100m @100/1000Base-T ≤250m @10Base-T
Optical ports	2 1000M SC/FC/ST optical ports; or 2 1000M SFP slots
	Wavelength: Multimode: 850nm, 1310nm Single-mode: 1310nm, 1550nm Single fiber: 1310/1550nm, 1490/1550nm
	Transmission distance: Multimode: 550m/2km; Single-mode: 3km~120km

Switching Characteristics

Parameter	Details
Backplane bandwidth	12G
MAC address table	8K
Packet forwarding rate	8.92Mpps
Store-and-forward	Supported

POE

Parameter	Details
Input voltage	DC48V-54V
Output power	Maximum 30W per port
Wire pairs	1/2 (+); 3/6 (-)

Power Supply

Parameter	Details
Power supply voltage	DC48-54V

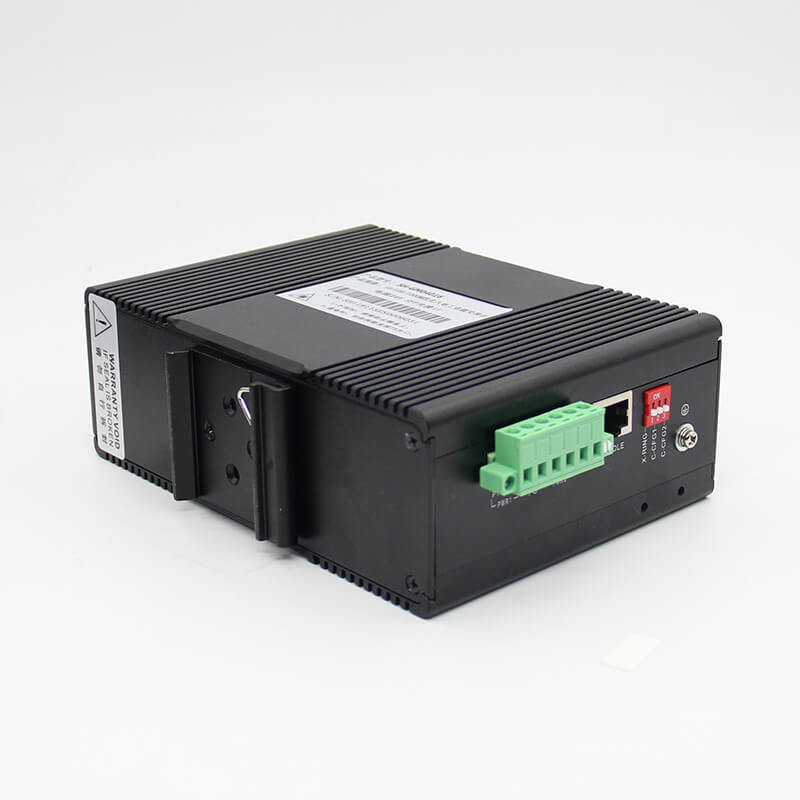

Interface	6-pin 5.08mm pitch terminal block
Power redundancy	Supported
Reverse connection protection	Supported

Environment

Parameter	Details
Operating temperature	-40℃- +85℃
Operating humidity	5%-90% (non-condensing)
Storage temperature	-40℃- +95℃
Storage humidity	5%-95% (non-condensing)

Mechanical Structure

Parameter	Details
Housing	Metal profile
Protection class	IP40
Dimensions	154×113×55mm
Net weight	0.77kg

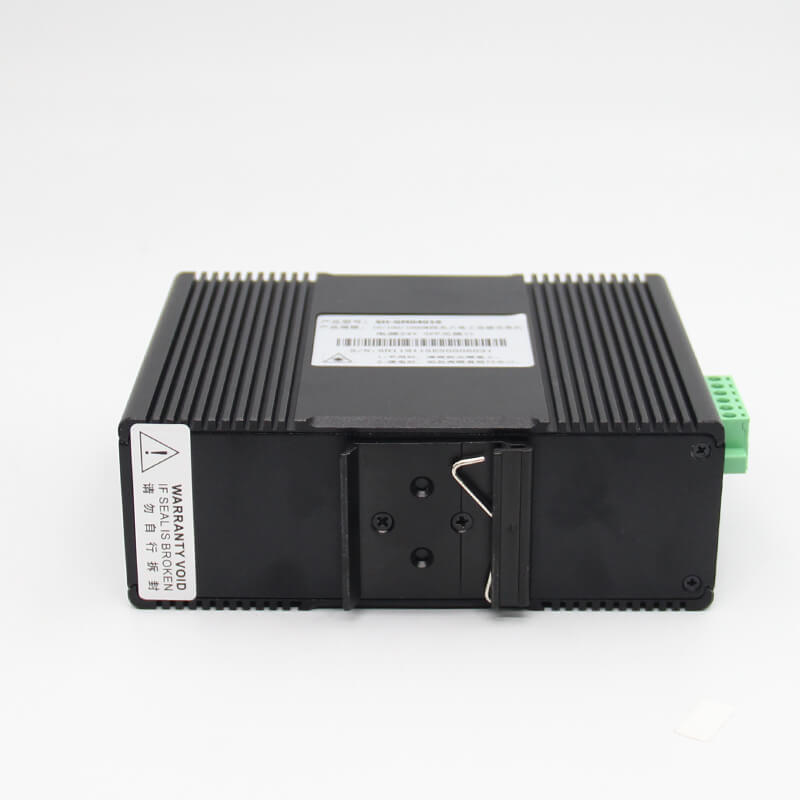

Installation method	DIN rail mounting

Safety Regulations

Specification	Details
Electrostatic discharge (ESD) protection	IEC61000-4-2 Level 3; Air discharge: ±8KV, Contact discharge: ±6KV
Electromagnetic field	IEC61000-4-3
Electrical fast transient (EFT)	IEC61000-4-4 Level 3; Power supply: ±2KV, Signal: ±1KV
Surge protection	IEC61000-4-5 Level 3; Power supply: Differential mode ±2KV, Common mode ±4KV Signal: Differential mode ±2KV, Common mode ±6KV

Reliability

Parameter	Details
LED	Power indicator Optical port Link/Act indicator Electrical port Link/Act indicator Electrical port speed indicator
MTBF	500,000 hours

Software Specifications

Protocol Standards

Standard	Description
IEEE802.3	Ethernet protocol
IEEE802.3i	10Base-Tx
IEEE802.3u	100Base-Tx/Fx
IEEE802.3z	1000Base-X
IEEE802.3ab	1000Base-Tx
IEEE802.3x	Flow control
IEEE802.3af/at	POE/POE+
IEEE802.3ad	LACP (Link Aggregation Control Protocol)
IEEE802.1p	COS (Class of Service)
IEEE802.1q	VLAN (Virtual Local Area Network)
IEEE802.1d	STP (Spanning Tree Protocol)
IEEE802.1w	RSTP (Rapid Spanning Tree Protocol)
IEEE802.1x	Security authentication
IEEE802.1ab	LLDP (Link Layer Discovery Protocol)

Switching Characteristics

Feature	Details
DIP switch	One-click ring network
	Reserved
	Reserved
Redundant network	Supports STP/RSTP/MSTP, supports ERPS
Loop protection	Supports private loop protection protocol
ERPS	Supports single ring, tangent ring, intersecting ring, multi-ring
MAC address table	Complies with IEEE 802.1q standard; Supports automatic MAC address learning and aging; supports static and dynamic MAC entries
Mirroring	Supports port-based bidirectional mirroring, supports VLAN-based input mirroring, supports flow-based input mirroring
Layer 2 multicast	Supports IGMP V1, V2, V3 Snooping; supports source port checking; supports IGMP Fast Leave; supports IGMP Filter; supports IGMP proxy
VLAN	Supports port-based VLAN; supports access port, trunk port, hybrid port
Private VLAN	Supports
GVRP	Supports
Port aggregation	Supports static aggregation, supports dynamic aggregation (LACP protocol)

Security Features

Feature	Details
QOS	Supports QoS re-marking, priority mapping, supports SP, WRR and SP+WRR scheduling algorithms, supports ingress rate limiting, supports ingress priority rate limiting, supports egress rate limiting, supports egress queue rate limiting, supports flow-based QoS, supports storm suppression, each port supports 8 queues
ACL	Supports matching L2, L3, L4 layer fields, supports actions such as log, redirection, mirroring, rate limiting
Dot1x	Supports port-based 802.1X authentication, supports user-based 802.1X authentication, supports MAC-based authentication, supports Radius service
IP Source Guard	Supports dynamic entries (from DHCP Snooping), supports static entries (from configuration)
ARP Inspection	Supports dynamic entries (from DHCP Snooping), supports static entries (from configuration)
Diagnosis and Maintenance	Supports ping (ipv4), supports ping (ipv6), supports traceroute (ipv4), supports traceroute (ipv6)

Management Features

Feature	Details
Management functions	Supports Telnet, CLI, WEB, SNMP management methods
SNMP	Supports SNMP V2C, supports SNMP V3
RMON	Supports statistics group, supports history group, supports alarm group, supports event group
Web management	Supports Web management, supports HTTP V1.1, supports HTTPS
IPV4/IPV6	Supports IPV4, supports IPV6
Security functions	Supports DHCP Snooping, supports 802.1X, supports user hierarchical management, supports ACL access control list, Supports DDOS, supports port-based MAC filtering/binding
Port management	Supports port enabling and disabling, supports rate setting, supports 802.3x flow control

Application Features

Feature	Support Status
NTP	Supports NTP Client
DHCP Client	Supports
DHCP Snooping	Supports establishing Snooping table; supports trusted port
TFTP	Supports TFTP Client
Telnet	Supports Telnet Server
SSH	Supports SSH Server
Version upgrade	Supports

Application
