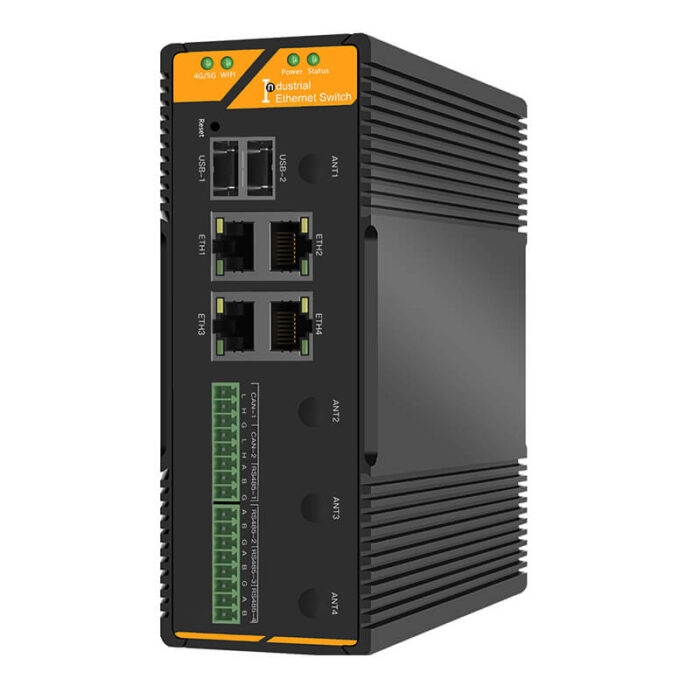

SH-IEC-G4040

Industrial Smart Gateway Ethernet Switch With 4x10/100/1000Base-T Ethernet Ports + 2xCAN Ports + 4xRS485 Ports
Industrial Smart Gateway Ethernet Switch With 4x10/100/1000Base-T Ethernet Ports + 2xCAN Ports + 4xRS485 Ports
Categories: ,

Industrial Smart Gateway Ethernet Switch With 4×10/100/1000Base-T Ethernet Ports + 2xCAN Ports + 4xRS485 Ports

Product Highlights

  • Rockchip RK3568J quad-core 1.8GHz Armv8 Cortex-A55 industrial-grade processor
  • 4*10/100/1000Base-T RJ45 Port
  • Rich IO ports: 4 channels of RS485, 2 channels of CAN
  • Rich IO expansions: LoRa, WiFi, NVMe, 4G, 5G
  • Rich communication protocol stacks, supporting hundreds of communication protocols covering fields such as industry, electric power, petroleum, buildings, intelligent manufacturing,
  • energy, IDC computer rooms, and power distribution operation and maintenance
  • Capable of directly accessing various relational data, including SQL SERVER, MY SQL, ORACLE, and SQLITE
  • Supports multiple scripting edge computing, including JAVA SCRIPT, LUA, and PYTHON scripts
  • Supports edge computing with logical expressions and network aggregation
  • Supports remote management, with a built-in routing function to manage or configure various next-level network devices
  • Supports dual-channel redundancy, dual-machine hot backup, and alarm triggering and reporting
  • Supports 485 multi-master proxy function, allowing multiple MODBUS masters to access devices simultaneously
  • Supports disconnection caching function, with the device capable of collecting up to 30,000 data tags per unit
  • Supports time synchronization, enabling time calibration with other devices via Ethernet (NTP)
  • Supports rapid batch point creation, device templates, and engineering templates; allows concurrent access by multiple clients; supports message viewing for quick diagnosis of
  • communication faults; and supports remote maintenance to reduce on-site debugging costs

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

Product Detail

Description

The SH-IEC-4040 smart gateway ethernet switch is designed based on a stable standard ARM platform, featuring 4 network ports, 4 serial ports, 2 CAN ports, 4 DI, and 4 DO. It supports over 200 industrial communication protocols, enabling easy conversion between different industrial protocols and cloud data integration. Equipped with rich interfaces, its open platform supports rapid customized development of device drivers.

The SH-IEC-4040 communication management device supports remote maintenance and upgrade, PLC management, data breakpoint resume, remote update of PLC programs and online monitoring, ensuring safe and reliable operation.

The SH-IEC-4040 operates within a temperature range of -40~75℃. It supports real-time data acquisition and forwarding of 40,000 points, serial port data forwarding, and concurrent acquisition by multiple upper computers via Ethernet (client). Additionally, it supports dual-machine hot backup and network port aggregation.

Buying Guide
Selection Product Spacifications
SH-IEC-4040 Industrial smart gateway ethernet switch,4×10/100/1000Base-T Ethernet ports, 2xCAN + 4xRS485
SH-IEC-4044 Enhanced industrial smart gateway ethernet switch,4×10/100/1000Base-T Ethernet ports, 2xCAN + 4xRS485 + 4xDI + 4xDO
Hardware Parameters

Specification Details
CPU ARM A55 quad-core, 1.8G frequency; RK3568J
NPU 512MAC
Memory Up to 4GB DDR4, with downward capacity support and optional configuration
Flash 16GB eMMC; optional capacities: standard 8GB, 32GB, maximum 128GB
RTC Supported
Temperature Control Chip Supported

Specification Details
Copper Ports 4 x 10/100/1000Base-T RJ45
CAN 2 channels; isolated, 3.81mm terminal, with return ground provided
RS485 4 channels; isolated, 3.81mm terminal, with return ground provided
USB 2.0 2 x AF ports
MiniPCIE 1 port, providing PCIE interface, short card
M.2 KeyB 1 port, providing USB3.0 interface, supporting 4G/5G expansion
TF Card 1 port

Specification Details
DI 4 channels; dry contact, isolated, 3.81mm terminal
DO 4 channels; dry contact, normally open, 3.81mm terminal
LORA 1 x Lora; MiniPCIE interface
MiniPCIE 1 x MiniPCIE interface, providing 4G expansion, long card

Specification Details
Power1 12Vdc~54Vdc input; 5.08mm terminal
Power2 12Vdc~54Vdc input; 5.08mm terminal
Power Consumption Less than 15W (excluding modules)

Specification Details
Operating Temperature -40℃～75℃
Storage Temperature -40℃~+80℃
Relative Humidity 5%-95% (non-condensing)

Specification Details
Product Dimensions 153mm*113mm*55mm
Material & Craftsmanship Aluminum, anodized, black sandblasted
Installation Method DIN rail mounting / mounting ears
Heat Dissipation Natural cooling

Specification Details
Ethernet Port Surge Protection IEC 61000-4-5 Level 3
Fast Transient Burst IEC 61000-4-4 Level 3
ESD Immunity IEC 61000-4-2 Level 3
Detailed List of Data Acquisition Protocols

Plugin Description Plugin Folder Function
BACNET IP BA_BACNET_IP Collection
T188 2004 IND_CJT188_2004 Collection
Configuration Plugin – Listening Mode IND_CONFIG_LISTEN Collection
Configuration Plugin – Query-Answer Mode IND_CONFIG_QUERY_ANSWER Collection
MODBUS ASCII IND_MODBUS_ASCII Collection
MODBUS RTU IND_MODBUS_RTU Collection
MODBUS TCP IND_MODBUS_TCP Collection
MODBUS RTU Proxy IND_MODBUS_RTU_PROXY Collection
OPC DA Bridge Driver IND_OPC_CLIENT_DA Collection
OPC DA LINUX IND_OPC_CLIENT_DA_LINUX Collection
OPC UA Client IND_OPC_CLIENT_UA Collection
Serial to TCP SERVER IND_SERIAL_TO_TCP Collection
SNMP Client IND_SNMP_CLIENT Collection
Simulation Driver TN_SIMULATOR Collection

Plugin Description Plugin Folder Function
DNP3.0 Protocol DL_DNP3 Collection
376.1 Master Station ELE_376_1_MASTER Collection
CDT91 ELE_CDT91 Collection
DLT_645 2007 ELE_DLT_645_07 Collection
DLT_645 97 ELE_DLT_645_97 Collection
IEC-60870-101 ELE_IEC_101 Collection
ELE_IEC_101_PH ELE_IEC_101_PH Collection
IEC-60870-102 ELE_IEC_102 Collection
IEC-60870-103 ELE_IEC_103 Collection
IEC-60870-104 ELE_IEC_104 Collection
IEC-61850 ELE_IEC_61850 Collection
ELE_IEC_61850_READ ELE_IEC_61850_READ Collection
ELE_DLT_698_45 ELE_DLT_698_45 Collection

Plugin Description Plugin Folder Function
AB DF1 Serial Protocol PLC_AB_DF1 Collection
AB ETHERNET/IP CIP Protocol (SLC500 Series) PLC_AB_LOGIX_CIP Collection
AB LOGIX 5000 TCP PLC_AB_LOGIX_TCP Collection
Beckhoff (Dynamic Library) PLC_BECKHOFF_ADS Collection
Beckhoff (Dynamic Library) PLC_BECKHOFF_ADS_NEW Collection
Beckhoff (LINUX) PLC_BECKHOFF_ADS_LINUX Collection
GE-ETHERNET PLC_GE_TCP Collection
MITSUBISHI FX Series PLC_MITSUBISHI_FX Collection
MITSUBISHI FX3u PLC_MITSUBISHI_FX_TCP Collection
MITSUBISHI Q Series Serial PLC_MITSUBISHI Q QJ71C24 Collection
MITSUBISHI Q Series TCP PLC_MITSUBISHI Q TCP Collection
MITSUBISHI Q Series (3E) PLC_MITSUBISHI Q TCPIP Collection
Panasonic PLC PLC_NAIS_NEWTOCOL Collection
OMRON FINS NET PLC_OMRON_FINS_NET Collection
OMRON HOST LINK PLC_OMRON_HOSTLINK Collection
S7-1200 PLC_S7_1200_TCP Collection
S7-1500 PLC_S7_1500_TCP Collection
S7_200 PPI PLC_S7_200_PPI Collection
S7_200 SMART PLC_S7_200_SMART Collection
S7_200 TCP PLC_S7_200_TCP Collection
S7_300 TCP PLC_S7_300_TCP Collection
S7_400 TCP PLC_S7_400_TCP Collection

Plugin Description Plugin Folder Function
MY SQL Client BIG_MYSQL_CLIENT Collection
ORACLE Client BIG_ORACLE_CLIENT Collection
SQLSERVER Client BIG_MSSQL_CLIENT Collection
redis Client IND_REDIS_CLIENT Collection

Plugin Description Plugin Folder Function
Script Executor JAVASCRIPT IND_SCRIPT_JAVASCRIPT Collection
Script Executor LUA IND_SCRIPT_LUA Collection
Calculation Expression IND_EXPRESSION_PARSER Collection

Plugin Description Plugin Folder Function
Nanrui Network 103 REL_NR_NET_103 Collection
Nanzi Network 103 REL_NZ_NET_103 Collection
Panneng Network 103 REL_PN_NET_103 Collection
XJ IEC 104 ELE_IEC_104_XJ Collection
Sifang CSC 2000 REL_SF_CSC2000NET Collection

Plugin Description Plugin Folder Function
Fanuc Machine Tool CNC_FANUC Collection
Mitsubishi Machine Tool CNC_Mitsubish Collection
Siemens Machine Tool CNC_SIMENS Collection
Guangshu Machine Tool CNC_GUANGSHU Collection
Newdipole Machine Tool CNC_NEWDIPOLE Collection
KND Machine Tool CNC_KND Collection
Brother Machine Tool CNC_BROTHER Collection
Heidenhain Machine Tool CNC_HEIDENHAIN Collection
Haas Machine Tool CNC_HAAS Collection
Huazhong CNC CNC_HNC Collection
Mazak SMART CNC_MAZAK Collection
Mazak Smooth CNC_MAZAK Collection
Mazak Matrix CNC CNC_MAZAK_FM Collection
Mazak 640 CNC CNC_MAZAK_FM Collection

Plugin Description Plugin Folder Function
ABB ROBOT_ABB Collection
Fanuc ROBOT_FANUC Collection
KUKA ROBOT_KUKA Collection
Detailed List of Data Service Protocols

Plugin Description Plugin Folder Function
SMS Alarm IND_ALARM_HIS Service
376.1 Slave Station ELE_376_1_SLAVER Service
ELE_CDT91 ELE_CDT91 Service
IEC-60870-101 ELE_IEC_101 Service
IEC-60870-104 ELE_IEC_104 Service
IEC-61850-STANDARD ELE_IEC_61850_S Service
BACNET IND_BACNET Service
MODBUS RTU IND_MODBUS_RTU Service
MODBUS RTU Registered Version IND_MODBUS_RTU_REG Service
MODBUS TCP IND_MODBUS_TCP Service
MODBUS TCP Registered Version IND_MODBUS_TCP_REG Service
MODBUS TCP ANY IND_MODBUS_TCP_ANY Service
OPC UA Server IND_OPC_UA Service
SNMP Agent Program IND_SNMP_AGENT Service
Siemens PLC Data Synchronization PLC_S7_WRITE Service

Plugin Description Plugin Folder Function
DS_IND_MODBUS_RTU_0X10 DS_IND_MODBUS_RTU_0X10 Service
DS_IND_MODBUS_TCP_0X10 DS_IND_MODBUS_TCP_0X10 Service
MYSQL Remote Storage BIG_MYSQL Service
REDIS BIG_REDIS Service
ORACLE BIG_ORACLE Service
SQL SERVER Remote Storage BIG_SQL_SERVER Service

Plugin Description Plugin Folder Function
Building Energy Consumption/Large Public Building XML ICP_BUILDING_ENERGY_R Service
Energy Consumption Platform Specification (Shanghai Standard) ICP_BUILDING_ENERGY_SH Service
Building Energy Consumption/Large Public Building XML Compression and Encryption ICP_BUILDING_ENERGY_ZIP_AES Service
Environmental Protection 212 Protocol ICP_EP_212 Service
Microsoft Cloud Industrial Cloud Service
Tencent Weiling Industrial Cloud Service
China Mobile IoT Industrial Cloud Service
Baidu Cloud Industrial Cloud Service
Huawei Cloud Industrial Cloud Service
CITIC Heavy Industries Cloud Industrial Cloud Service
Sany Heavy Industry Cloud Industrial Cloud Service
Inspur Cloud Industrial Cloud Service
Advantech WISE-PaaS Industrial Cloud Service
Oriental Guoxin Cloud Industrial Cloud Service
ENN Cloud Industrial Cloud Service

Quality Certifications

additional information

Model

SH-IEC-4040, SH-IEC-4044
