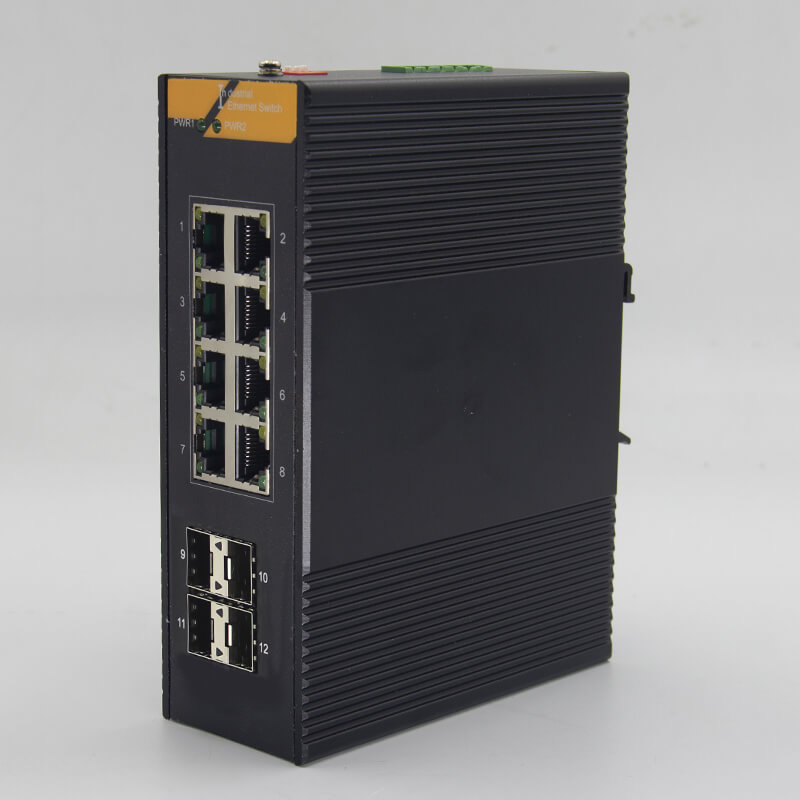

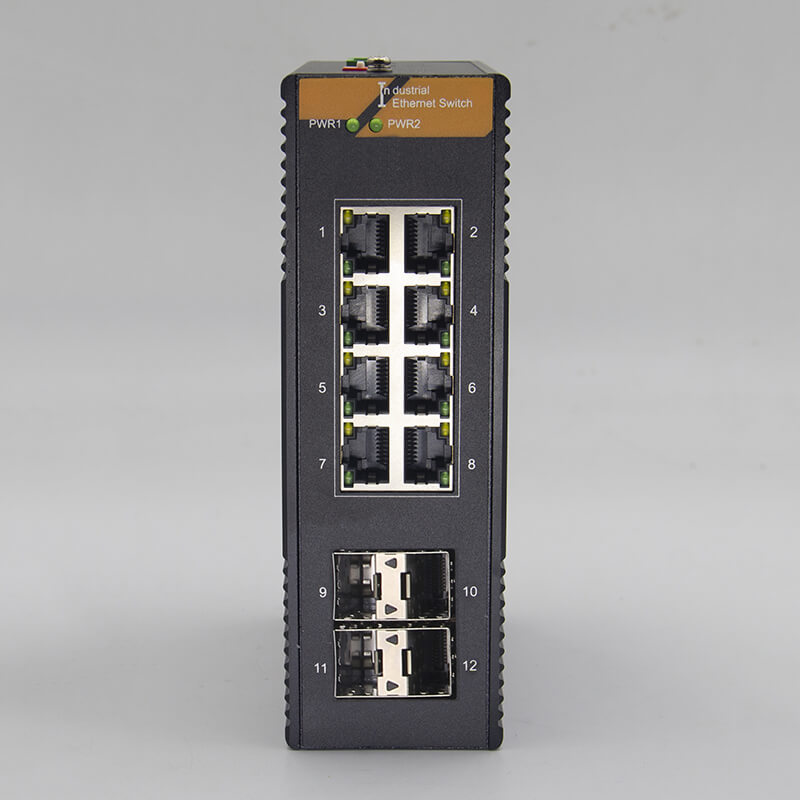

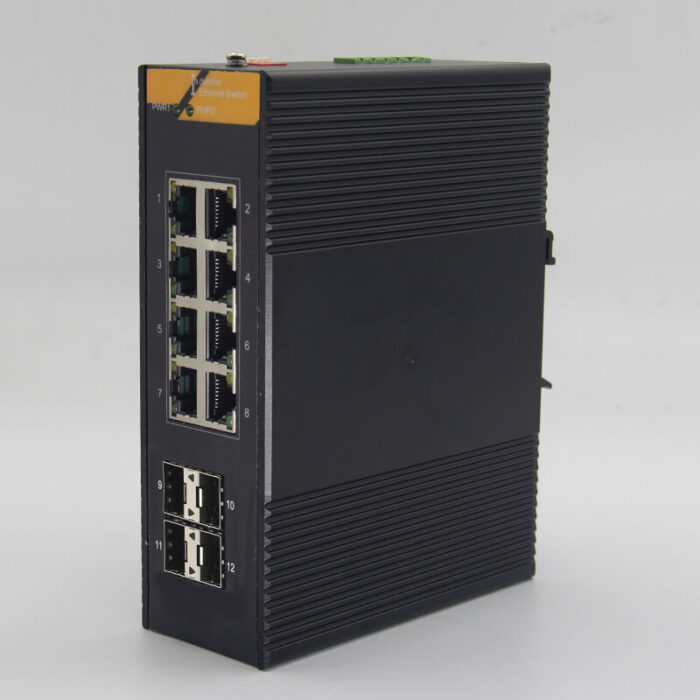

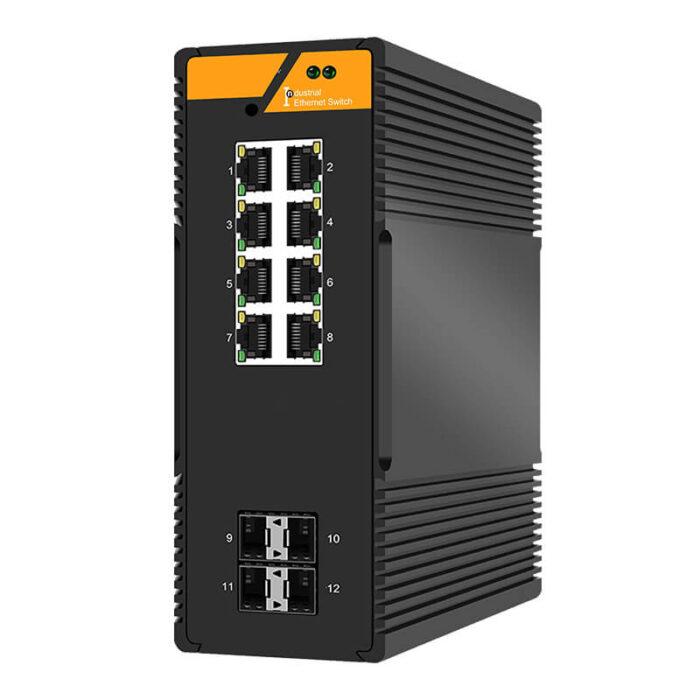

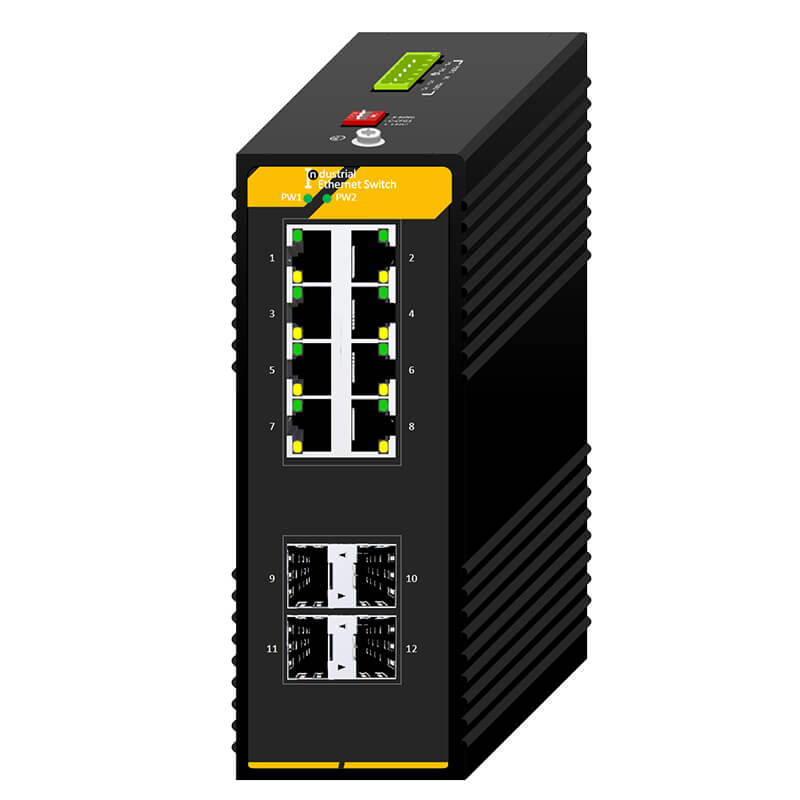

SH-G0480T-SFP

Industrial Unmanaged Ethernet PoE Switch With 4*1000Base-X Ports + 8*10/100Base-T RJ45 PoE Ports
Industrial Unmanaged Ethernet PoE Switch With 4*1000Base-X Ports + 8*10/100Base-T RJ45 PoE Ports - Image 2
Industrial Unmanaged Ethernet PoE Switch With 4*1000Base-X Ports + 8*10/100Base-T RJ45 PoE Ports - Image 3
Industrial Unmanaged Ethernet PoE Switch With 4*1000Base-X Ports + 8*10/100Base-T RJ45 PoE Ports - Image 4
Industrial Unmanaged Ethernet PoE Switch With 4*1000Base-X Ports + 8*10/100Base-T RJ45 PoE Ports - Image 5
Industrial Unmanaged Ethernet PoE Switch With 4*1000Base-X Ports + 8*10/100Base-T RJ45 PoE Ports - Image 6
Industrial Unmanaged Ethernet PoE Switch With 4*1000Base-X Ports + 8*10/100Base-T RJ45 PoE Ports - Image 7
Categories: ,

Industrial Unmanaged Ethernet PoE Switch With 4*1000Base-X Ports + 8*10/100Base-T RJ45 PoE Ports

Feature
  • Supports 8*10/100Base-T auto-sensed RJ45 ports with POE support.
  • Supports full/half-duplex auto-sensed.
  • Supports MDI/MDI-X auto-sensed.
  • Supports IEEE802.3af POE and IEEE802.3at POE+.
  • Each port can support a maximum of 30W POE output.
  • Supports 4*1000Base-X ports.
  • LC/SC optical interfaces can be provided as required.
  • Features excellent switching performance, with all ports supporting wire-speed and non-blocking forwarding.
  • Supports industrial protection level IP40.
  • Supports lightning protection and anti-static protection.
  • Supports DIN rail mounting.
  • Has a wide operating temperature range from -40°C to +85°C.
  • Accepts a DC input voltage range of 48V to 54V with dual power supply redundancy.
  • Features low power consumption and heat dissipation, and adopts a fanless design.

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

free delivery

Get free delivery in most regions. Only a few areas have extra shipping fees for your order.

secure payments

Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.

Return Policy

We stand by our products. You can return any item within 30 days if you’re not completely satisfied.

official products

All our products are sourced directly from official channels, offering you genuine items of the highest quality.

Product Detail

Description

The SH-G0480T series industrial-grade unmanaged ethernet POE switch provide 8*10/100Base-T RJ45 copper ports and 4*1000Base-X optical ports. Specifically designed for network connections in harsh environments, they feature a wide operating temperature range from -40°C to +85°C, a fanless design, a compact structure, and DIN rail mounting. The switch are widely used for data transmission in numerous industries such as transportation, telecommunications, security, banking, customs, ports, power stations, and oil fields.

The SH-G0480T series industrial-grade POE switch also support POE output, supplying power to front-end PD devices like network cameras and wireless APs. They are suitable for situations where traditional wire cabling is inconvenient.

Ording Guide
Model Specification
SH-G0480T-SFP Industrial Unmanaged PoE Switch With 4*1000Base-X Ports + 8*10/100Base-T Copper PoE Ports (RJ45), SFP slot (module not included), DC48V-54V dual power supply, DIN rail-mounted, -40°C to 85°C
Technical specifications

Standard Description
IEEE802.3 Ethernet Protocol
IEEE802.3i 10Base-Tx
IEEE802.3u 100Base-Tx/Fx
IEEE802.3z 1000Base-X
IEEE802.3ab 1000Base-Tx
IEEE802.3x Flow Control
IEEE802.3af/at POE/POE+

Parameter Details
Copper ports： 8 x 10/100M RJ45 ports
Transmission distance： ≤100m @100Base-T
≤250m @10Base-T
Optical ports： 4 x 1000M SFP slots
Wavelength： Multimode：850nm, 1310nm
Single-mode：1310nm, 1550nm
Single fiber：1310/1550nm, 1490/1550nm
Transmission distance： Multimode：550m/2km；Single-mode：3km~120km

Parameter Details
Switching capacity： 24G
MAC address table： 16K
Packet forwarding rate： 17.85Mpps
Store and forward： Supported

Parameter Details
Input voltage： DC48V-54V
Output power： Max 30W per port
Wire pairs： 1/2 (+)；3/6 (-)

Parameter Details
Power supply voltage： DC48-54V
Power consumption： ≤1W (no-load)；≤3.5W (full load, excluding POE)

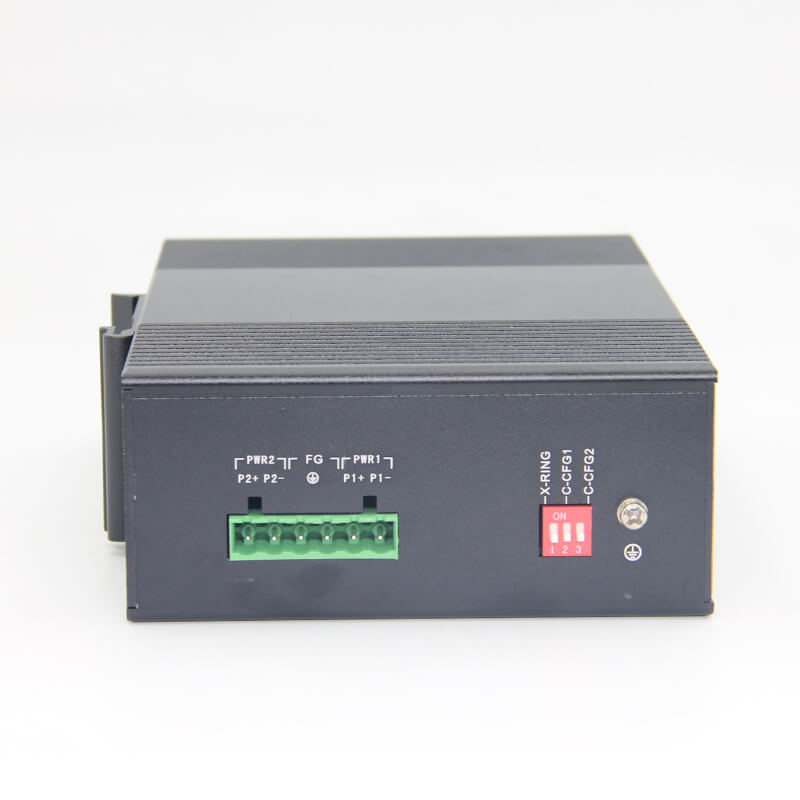

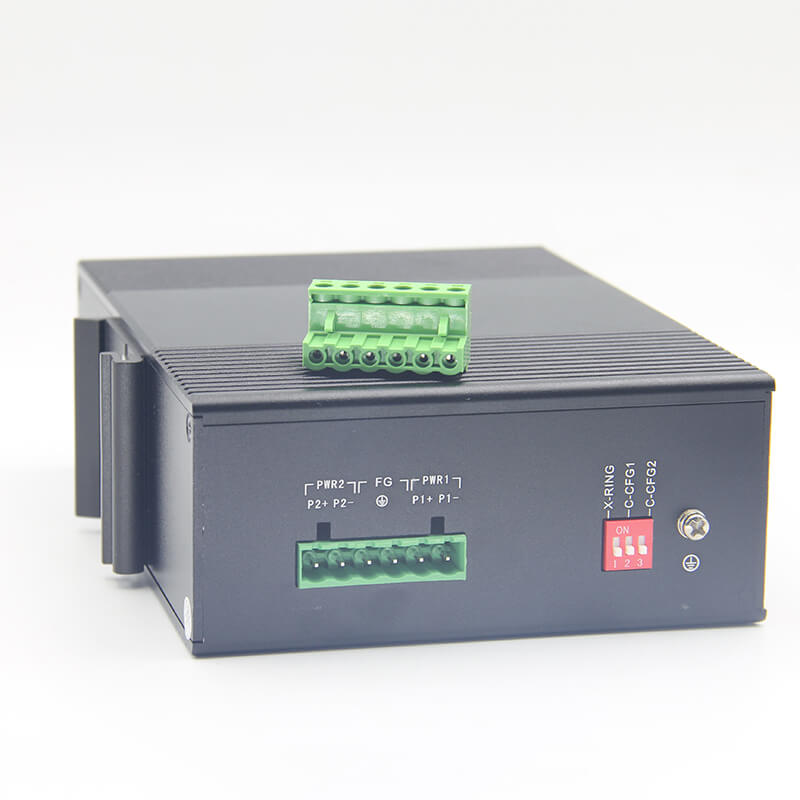

Interface： 6-pin 5.08mm pitch terminal block
Power redundancy： Supported
Reverse connection protection： Supported

Parameter Details
Operating temperature： -40℃- +85℃
Operating humidity： 5%-90% (non-condensing)
Storage temperature： -40℃- +95℃
Storage humidity： 5%-95% (non-condensing)

Parameter Details
Housing： Metal profile
Protection level： IP40
Dimensions： 153×113×50mm
Net weight： 0.57kg

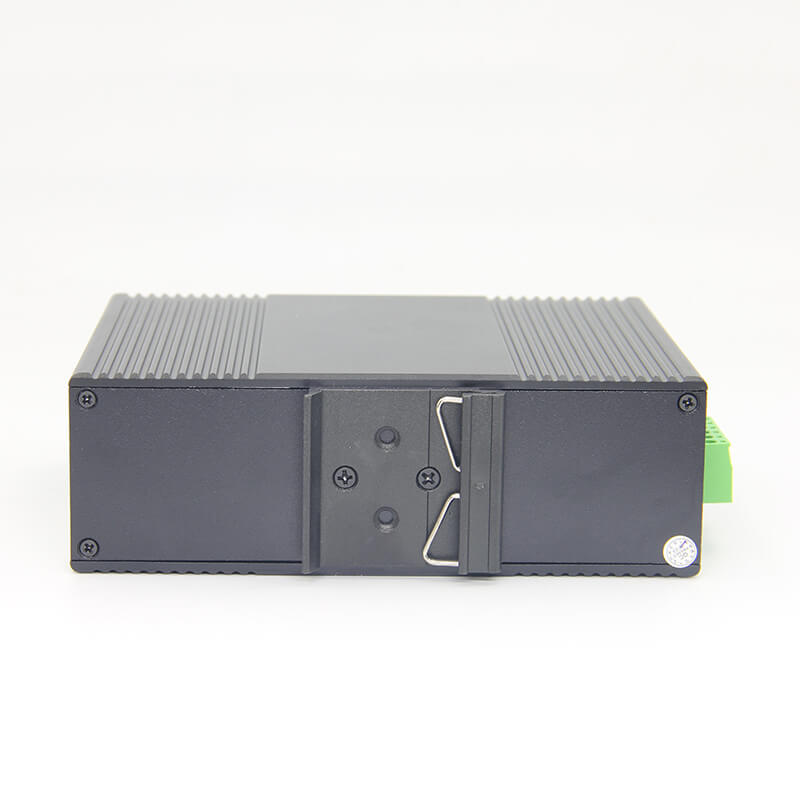

Installation method： DIN rail mounting

Parameter Details
ESD protection： IEC61000-4-2 Level 3；
Air discharge:±8KV, Contact discharge:±6KV
Electromagnetic field： IEC61000-4-3
Transient high voltage (EFT)： IEC61000-4-4 Level 3；
Power supply: ±2KV, Signal: ±1KV
Surge protection： IEC61000-4-5 Level 3；
Power supply: Differential mode ±2KV, Common mode ±4KV
Signal: Differential mode ±2KV, Common mode ±6KV

Parameter Details
LED： Power indicator
Optical port Link/Act indicator
Copper port Link/Act indicator
Copper port speed indicator
MTBF： 500,000 hours

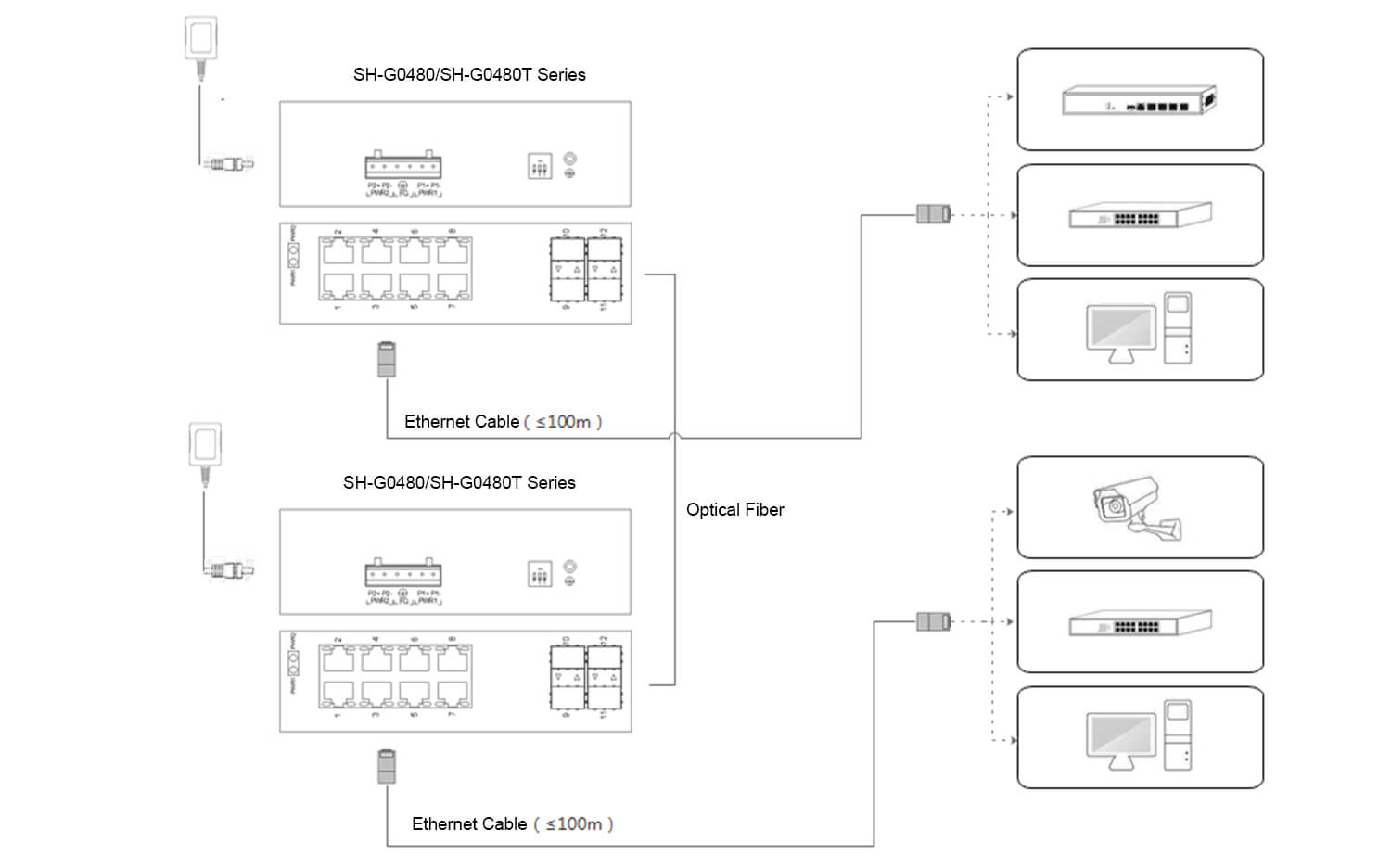

Applications
