SH-G0005

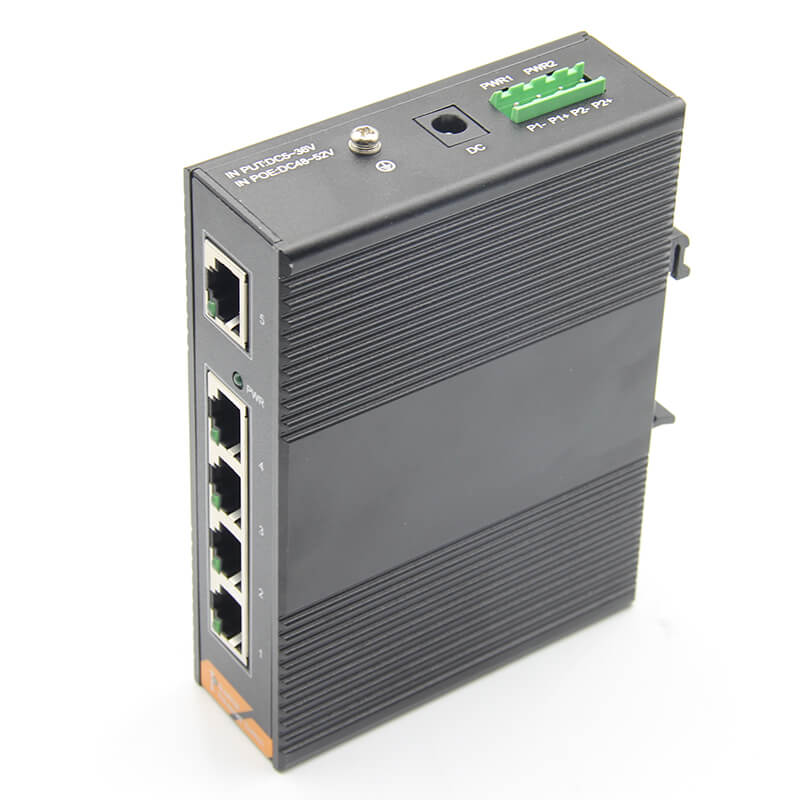

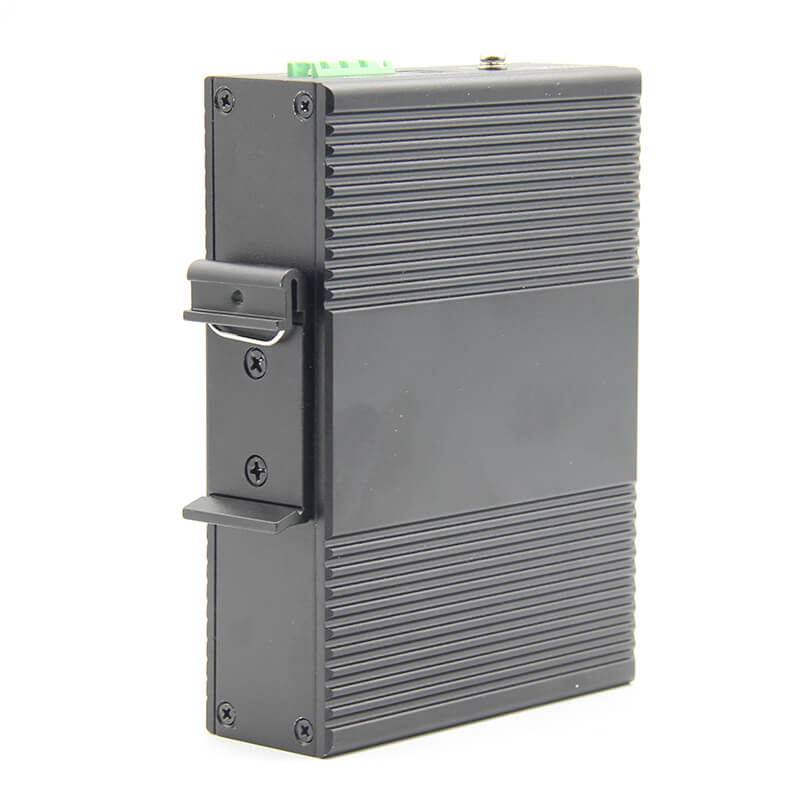

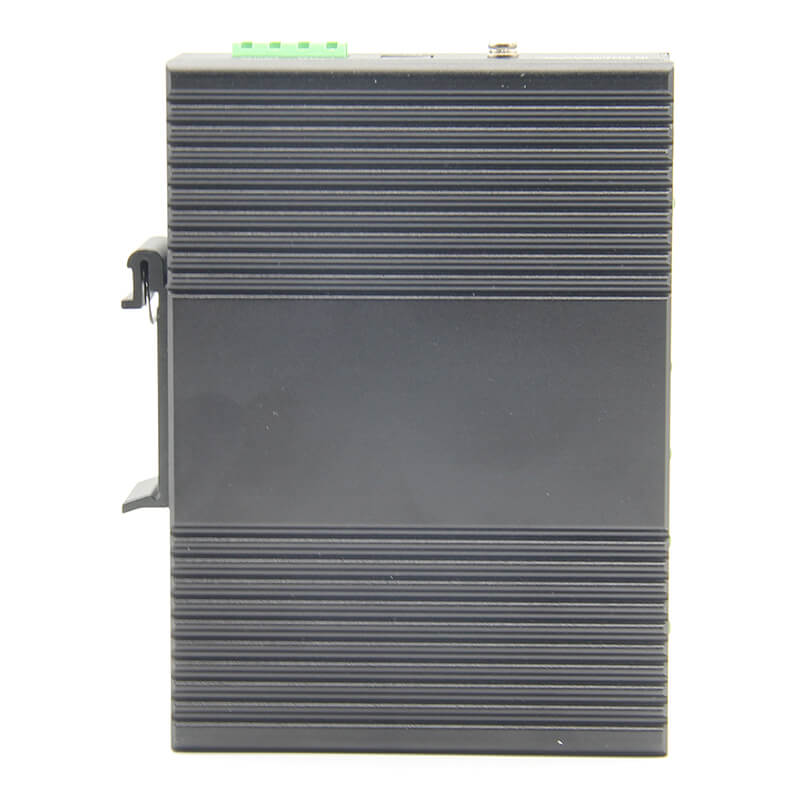

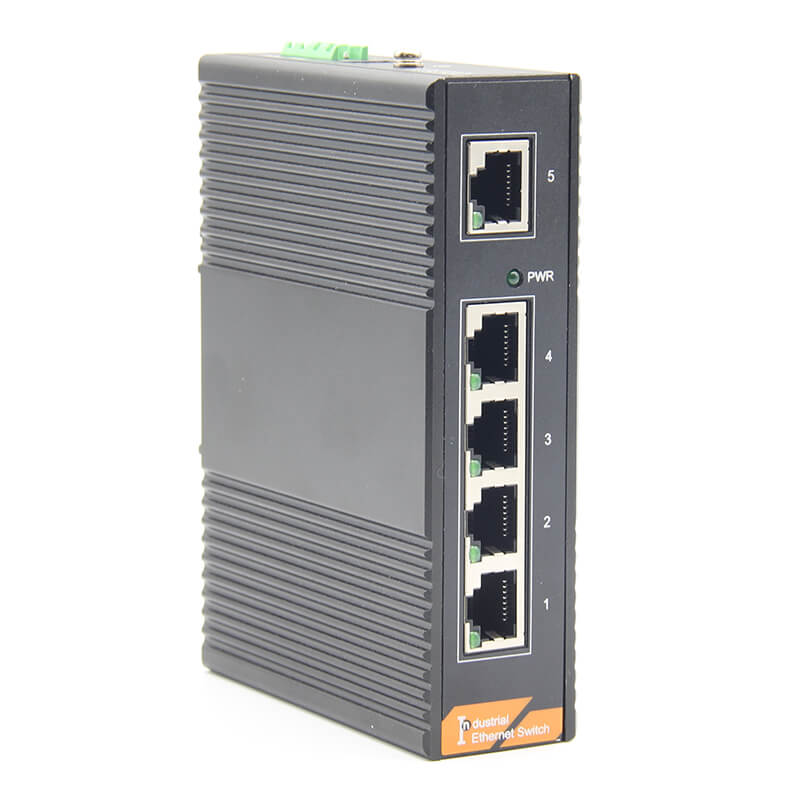

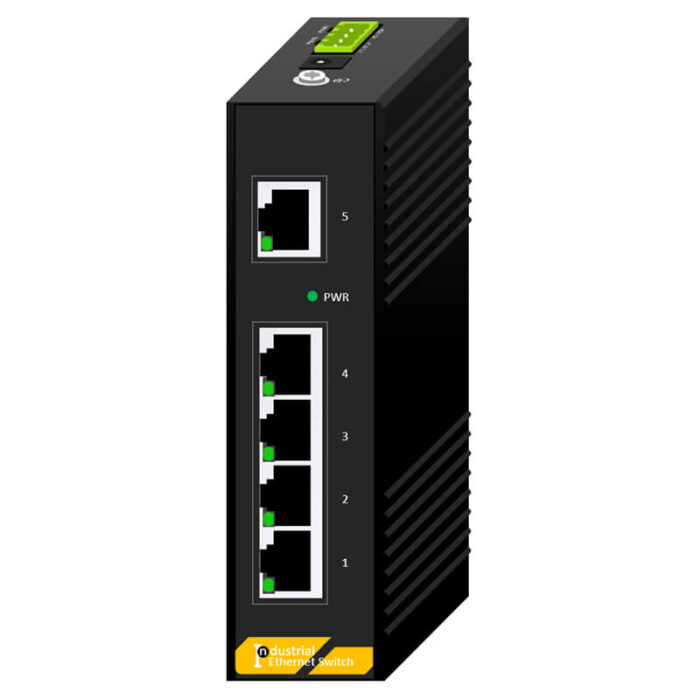

Industrial Unmanaged Ethernet Switch 5*10/100/1000Base-T RJ45 Ports
Industrial Unmanaged Ethernet Switch 5*10/100/1000Base-T RJ45 Ports - Image 2
Industrial Unmanaged Ethernet Switch 5*10/100/1000Base-T RJ45 Ports - Image 3
Industrial Unmanaged Ethernet Switch 5*10/100/1000Base-T RJ45 Ports - Image 4
Industrial Unmanaged Ethernet Switch 5*10/100/1000Base-T RJ45 Ports - Image 5
Industrial Unmanaged Ethernet Switch 5*10/100/1000Base-T RJ45 Ports - Image 6
Categories: ,

Industrial Unmanaged Ethernet Switch 5*10/100/1000Base-T RJ45 Ports

Feature
  • 5*10/100/1000M auto-sensed RJ45 ports.
  • full/half-duplex auto-sensed.
  • MDI/MDI-X auto-sensed.
  • IP40 protection .
  • Lightning protection and anti-static protection.
  • DIN rail mounting.
  • Working temperature range from – 40°C to + 85°C.
  • Input voltage DC5-52V with dual-power redundancy.
  • Low power consumption and heat dissipation, fanless design.

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

free delivery

Get free delivery in most regions. Only a few areas have extra shipping fees for your order.

secure payments

Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.

Return Policy

We stand by our products. You can return any item within 30 days if you’re not completely satisfied.

official products

All our products are sourced directly from official channels, offering you genuine items of the highest quality.

Product Detail

Description

SH-G0005 industrial-grade unmanaged Ethernet switches feature 5 auto-sensed 10/100/1000M RJ45 ports, designed specifically for network connectivity in harsh environments. They offer a wide operating temperature range of -40°C to +85°C, fanless design, compact structure, and DIN rail mounting. These switches are widely used for data transmission across various industries, including transportation, telecommunications, security, banking, customs, ports, power stations, oil fields, and more.

Ording Guide
Model Specification
SH-G0005 Industrial Ethernet Switch 10/100/1000Base-T Ports, Dual Redundant Power Inputs (DC 5V–52V), DIN Rail Mounting, Operating Temperature (-40°C~+85°C)
Technical specifications

Standard Description
IEEE802.3 Ethernet Protocol
IEEE802.3i 10Base-Tx
IEEE802.3u 100Base-Tx/Fx
IEEE802.3z 1000Base-X
IEEE802.3ab 1000Base-T
IEEE802.3x Flow Control

Feature Specification
Quantity 5
Speed 10/100/1000M Auto-Negotiation
Interface RJ45
Transmission Distance ≤100m @100/1000Base-T; ≤250m @10Base-T

Feature Specification
Backplane Bandwidth 10G
MAC Address Table 2K
Forwarding Rate 7.44Mpps
Store-and-Forward Supported

Feature Specification
Voltage DC 5V–52V
Power Consumption ≤1W (Idle); ≤2.5W (Full Load)
Interface 4-Pin 5.08mm Terminal Block; 1 x 5.5×2.5mm DC Jack
Redundancy Supported
Reverse Polarity Protection Supported

Feature Specification
Operating Temperature -40°C–85°C
Operating Humidity 5%–90% (Non-Condensing)
Storage Temperature -40°C–95°C
Storage Humidity 5%–95% (Non-Condensing)

Feature Specification
Housing Metal Extrusion
Protection Rating IP40
Dimensions 124×89×33.5mm
Net Weight 0.325kg
Mounting DIN Rail

Feature Specification
ESD Protection IEC61000-4-2 Level 3
Air Discharge ±8KV; Contact Discharge: ±6KV
Radiated Immunity IEC61000-4-3
EFT/Burst IEC61000-4-4 Level 3
Power ±2KV; Signal: ±1KV
Surge Protection IEC61000-4-5 Level 3
Power ±2KV (Differential), ±4KV (Common Mode)
Signal ±2KV (Differential), ±6KV (Common Mode)

Feature Specification
LED Indicators Power, Ethernet Port Link/Act, Ethernet Speed
MTBF 500,000 Hours

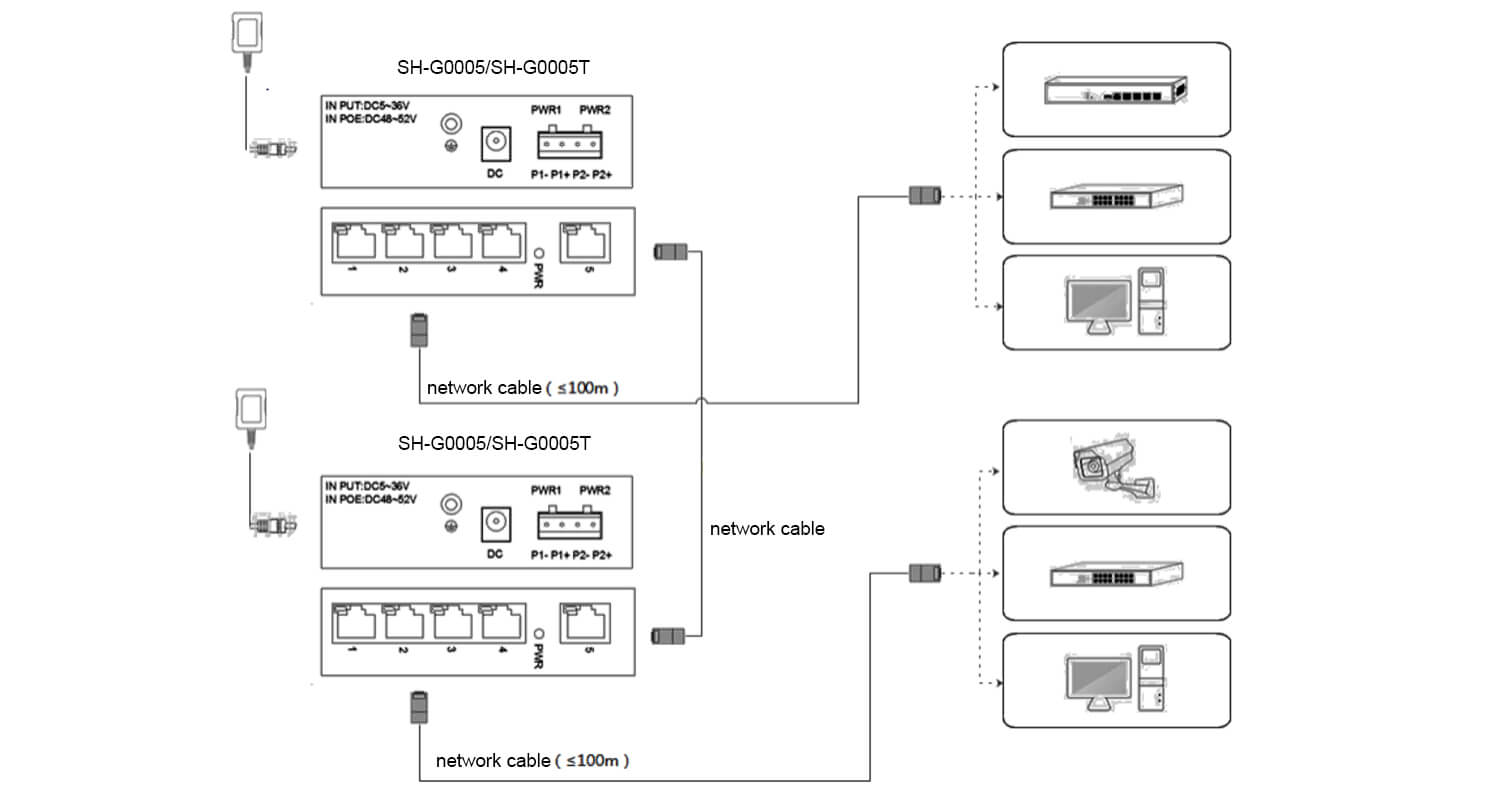

Applications

Quality Certifications

additional information

Model

SH-G0005, SH-G0005T
