SH-G0104T

Industrial Unmanaged PoE Media Converter With 4*10/100/1000Base-T Ports+1*1000Base-X Port
Industrial Unmanaged PoE Media Converter With 4*10/100/1000Base-T Ports+1*1000Base-X Port - Image 2
Industrial Unmanaged PoE Media Converter With 4*10/100/1000Base-T Ports+1*1000Base-X Port - Image 3
Industrial Unmanaged PoE Media Converter With 4*10/100/1000Base-T Ports+1*1000Base-X Port - Image 4
Industrial Unmanaged PoE Media Converter With 4*10/100/1000Base-T Ports+1*1000Base-X Port - Image 5
Industrial Unmanaged PoE Media Converter With 4*10/100/1000Base-T Ports+1*1000Base-X Port - Image 6
Categories: ,

Industrial Unmanaged PoE Media Converter With 4*10/100/1000Base-T Ports+1*1000Base-X Port

Feature
  • Supports 4*10/100/1000Base-TRJ45 copper ports, with optional POE support.
  • Supports full/half-duplex auto-negotiation.
  • Supports MDI/MDI-X auto-negotiation.
  • Supports IEEE802.af POE and IEEE802.3at POE+.
  • Each port supports a maximum POE output of 30W.
  • Supports 1*1000Base-X optical port.
  • LC/SC/ST/FC optical interfaces can be provided as required.
  • Supports the industrial protection level of IP40.
  • Supports lightning protection and anti-static protection.
  • Supports DIN rail mounting.
  • Has a wide operating temperature range from -40°C to +85°C.
  • Accepts a wide voltage input of DC5 – 52V with dual power supply redundancy.
  • Features low power consumption and heat dissipation, and has a fanless design.

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

free delivery

Get free delivery in most regions. Only a few areas have extra shipping fees for your order.

secure payments

Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.

Return Policy

We stand by our products. You can return any item within 30 days if you’re not completely satisfied.

official products

All our products are sourced directly from official channels, offering you genuine items of the highest quality.

Product Detail

Description

The SH – G0104T series industrial – grade PoE media converter offer 4*10/100/1000M auto – negotiable RJ45 PoE copper ports and 1*1000M fiber port. Specifically designed for network connections in harsh environments, they feature a wide operating temperature range from – 40°C to + 85°C, a fanless design, a compact structure, and DIN rail mounting. They are widely used for data transmission in numerous industries such as transportation, telecommunications, security, banking, customs, ports, power stations, and oil fields.

The SH-G0104T series industrial-grade PoE transceivers also support POE output, which can supply power to front-end PD devices such as network cameras and wireless APs. They are suitable for situations where traditional wire cabling is inconvenient.

Ording Guide
Model Specification
SH-G0104T-SFP Industrial Unmanaged PoE Media Converter With 4*10/100/1000Base-T Ports+1*1000Base-X Port, SFP slot (module not included), DC48V-52V dual power supply, DIN rail-mounted, -40°C to 85°C
SH-G0104TM-31 Industrial Unmanaged PoE Media Converter With 4*10/100/1000Base-T Ports+1*1000Base-X Port, multimode 1310nm, 2KM, SC connector, DC48V-52V dual power, DIN rail-mounted, -40°C to 85°C
SH-G0104TS-20 Industrial Unmanaged PoE Media Converter With 4*10/100/1000Base-T Ports+1*1000Base-X Port, multimode 1310nm, 20KM, SC connector, DC48V-52V dual power, DIN rail-mounted, -40°C to 85°C
SH-GS0104T-3A Industrial Unmanaged PoE Media Converter With 4*10/100/1000Base-T Ports+1*1000Base-X Port, single-mode single-fiber T1310/R1550nm, 3KM, SC connector, DC48V-52V dual power supply, DIN rail-mounted, -40°C to 85°C
SH-GS0104T-3B Industrial Unmanaged PoE Media Converter With 4*10/100/1000Base-T Ports+1*1000Base-X Port, single-mode single-fiber T1550/R1310nm, 3KM, SC connector, DC48V-52V dual power supply, DIN rail-mounted, -40°C to 85°C
SH-GS0104T-20A Industrial Unmanaged PoE Media Converter With 4*10/100/1000Base-T Ports+1*1000Base-X Port, single-mode single-fiber T1310/R1550nm, 20KM, SC connector, DC48V-52V dual power supply, DIN rail-mounted, -40°C to 85°C
SH-GS0104T-20B Industrial Unmanaged PoE Media Converter With 4*10/100/1000Base-T Ports+1*1000Base-X Port, single-mode single-fiber T1550/R1310nm, 20KM, SC connector, DC48V-52V dual power supply, DIN rail-mounted, -40°C to 85°C
Technical specifications

Standard Description
IEEE802.3 Ethernet Protocol
IEEE802.3i 10Base-Tx
IEEE802.3u 100Base-Tx/Fx
IEEE802.3z 1000Base-X
IEEE802.3ab 1000Base-Tx
IEEE802.3x Flow Control
IEEE802.3af/at POE/POE+

Parameter Details
Quantity 4
Speed 10/100/1000M Auto-negotiation
Interface RJ45
Transmission Distance ≤100m @100/1000Base-T
≤250m @10Base-T

Parameter Details
Input Voltage DC48V-54V
Output Power Max 30W per port
Wiring Pairs 1/2 (+); 3/6 (-)

Parameter Details
Quantity 1
Speed 1000M
Interface SC/FC/ST/LC (SFP)
Fiber Mode Wavelength
Multimode 850nm
≤550m
Multimode 1310nm
<2km
Single-mode 1310nm
10km-60km
Single-mode 1550nm
60km-120km
Single Fiber 1310/1550nm
3km-60km
Single Fiber 1490/1550nm
60km-120km

Parameter Details
Supply Voltage DC5-36V (non-POE); DC48-52V (POE)
Power Consumption ≤1W (no load); ≤2.5W (full load, excluding POE)
Interface 6-pin 5.08mm pitch terminal block
1 x 5.5*2.5mm DC jack
Power Redundancy Supported
Reverse Polarity Protection Supported

Parameter Details
Operating Temperature -40°C to +85°C
Operating Humidity 5%-90% (non-condensing)
Storage Temperature -40°C to +95°C
Storage Humidity 5%-95% (non-condensing)

Parameter Details
Housing Metal profile
Protection Level IP40
Dimensions 124×89×33.5mm
Net Weight 0.55kg
Installation Method DIN rail mounting

Parameter Details
ESD Protection IEC61000-4-2 Level 3;
Air discharge: ±8KV, Contact discharge: ±6KV
Electromagnetic Field IEC61000-4-3
Surge Protection (EFT) IEC61000-4-4 Level 3;
Power: ±2KV, Signal: ±1KV
Surge Protection IEC61000-4-5 Level 3;
Power: Differential mode ±2KV, Common mode ±4KV
Signal: Differential mode ±2KV, Common mode ±6KV

Parameter Details
LED Indicators Power Indicator
Optical Port Link/Act Indicator
Electrical Port Link/Act Indicator
Electrical Port Speed Indicator
MTBF 500,000 Hours

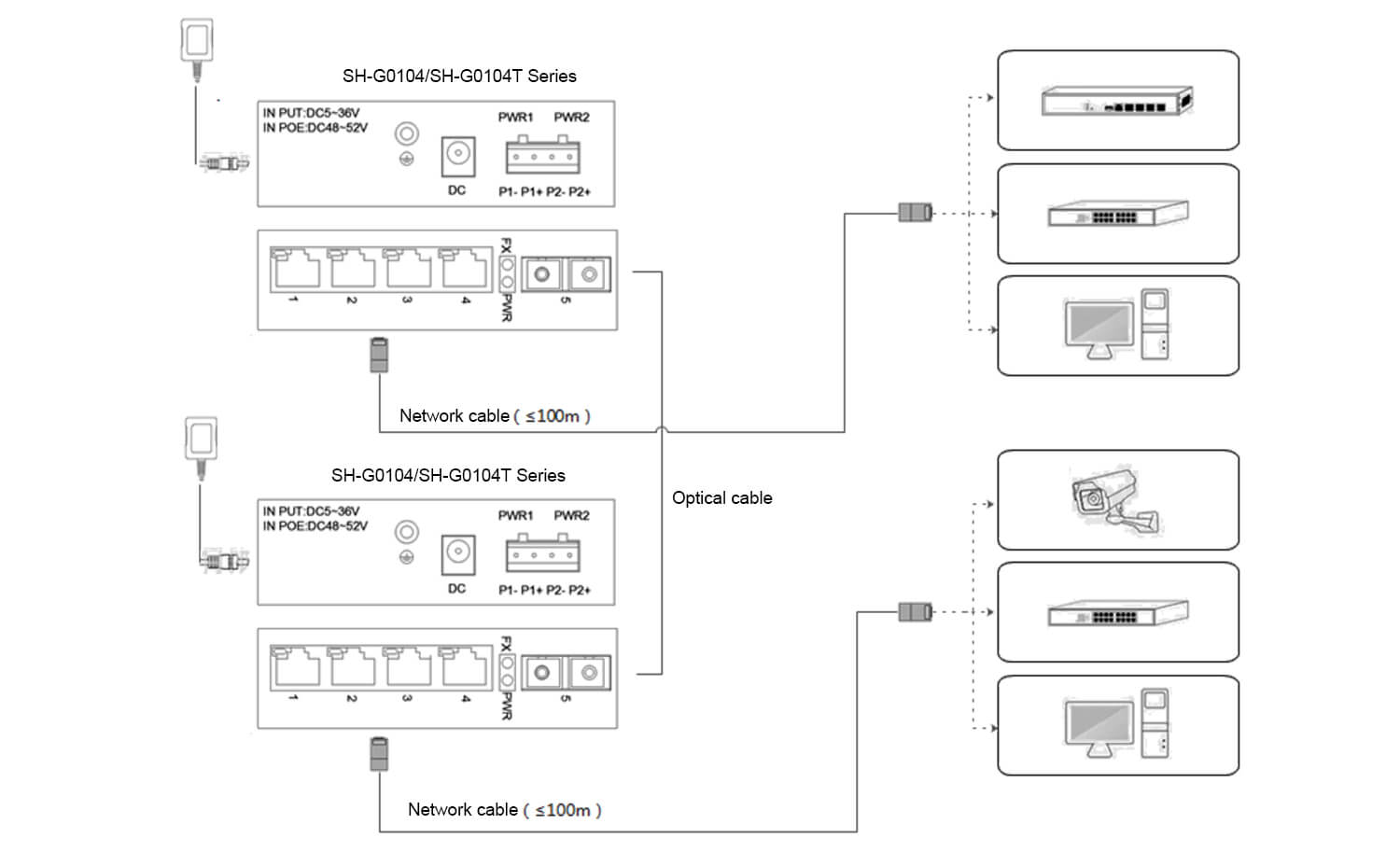

Applications

Quality Certifications

additional information

Model

SH-G0104T, SH-G0104TM-31, SH-G0104TS-20, SH-GS0104T-3A, SH-GS0104T-3B, SH-GS0104T-20A, SH-GS0104T-20B
