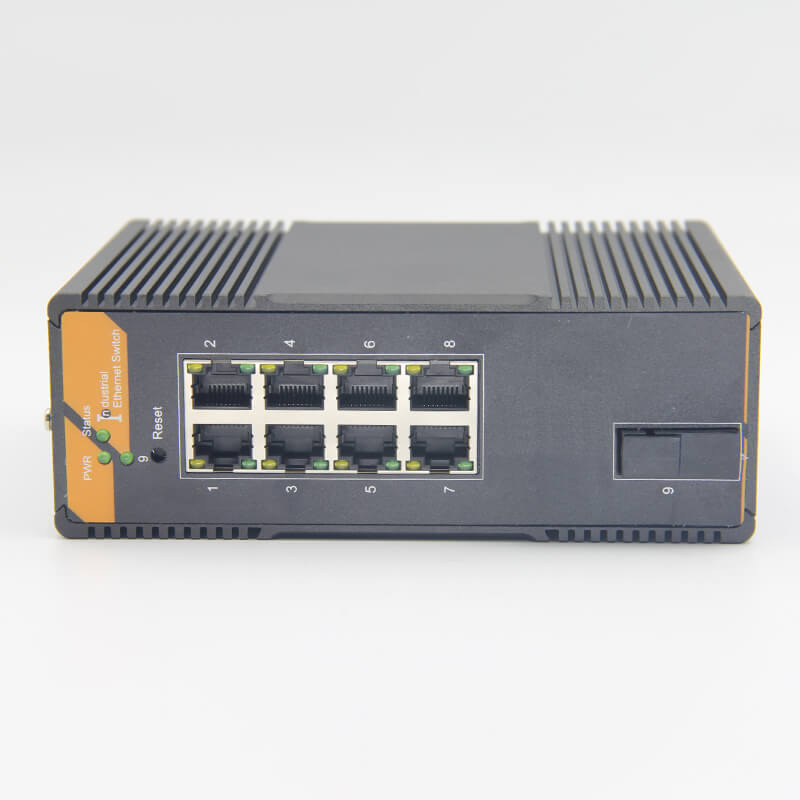

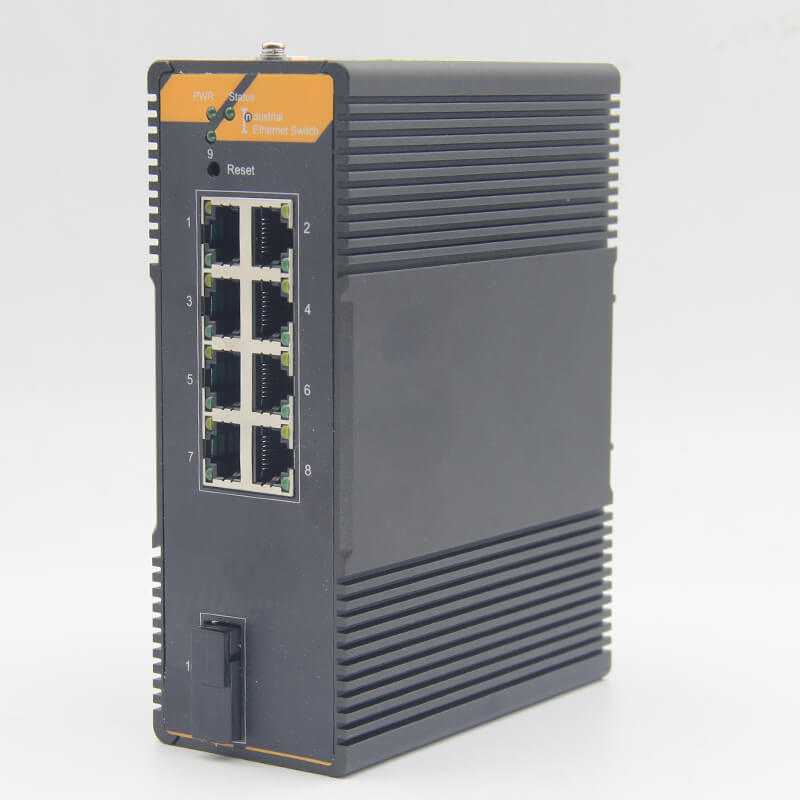

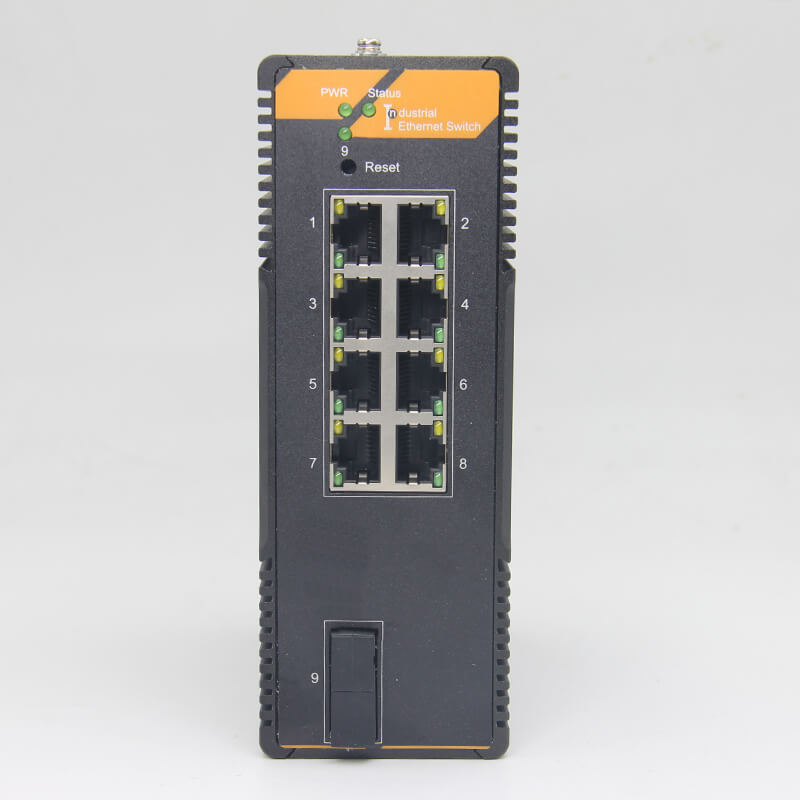

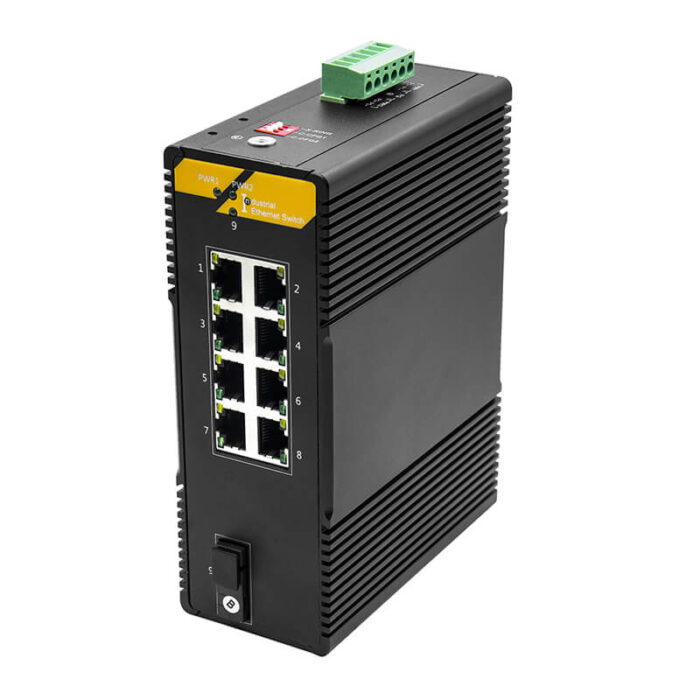

SH-G0180T

Industrial Unmanaged Ethernet PoE Switch With 8*10/100Base-T Ports +1*1000Base-X Port
Industrial Unmanaged Ethernet PoE Switch With 8*10/100Base-T Ports +1*1000Base-X Port - Image 2
Industrial Unmanaged Ethernet PoE Switch With 8*10/100Base-T Ports +1*1000Base-X Port - Image 3
Industrial Unmanaged Ethernet PoE Switch With 8*10/100Base-T Ports +1*1000Base-X Port - Image 4
Industrial Unmanaged Ethernet PoE Switch With 8*10/100Base-T Ports +1*1000Base-X Port - Image 5
Categories: ,

Industrial Unmanaged Ethernet PoE Switch With 8*10/100Base-T Ports +1*1000Base-X Port

Feature
  • Supports 8*10/100Base-T auto-sensed RJ45 ports with POE support.
  • Supports full/half-duplex auto-sensed.
  • Supports MDI/MDI-X auto-sensed.
  • Supports IEEE802.af POE and IEEE802.3at POE+.
  • Each port can support a maximum of 30W POE output.
  • Supports 1*1000Base-X port.
  • LC/SC/ST/FC optical interfaces can be provided as required.
  • Supports industrial protection level IP 40.
  • Supports lightning protection and anti-static protection.
  • Supports DIN rail mounting.
  • Has a wide operating temperature range from -40°C to +85°C.
  • Requires DC 48 – 54V input with dual power supply redundancy.
  • Features low power consumption and heat dissipation, and comes with a fanless design.

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

free delivery

Get free delivery in most regions. Only a few areas have extra shipping fees for your order.

secure payments

Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.

Return Policy

We stand by our products. You can return any item within 30 days if you’re not completely satisfied.

official products

All our products are sourced directly from official channels, offering you genuine items of the highest quality.

Product Detail

Description

The SH-G0180T series industrial-grade unmanaged POE switch provides 8*10/100Base-T auto-sensed RJ45 ports and 1*1000Base-FX port. It is specifically designed for network connections in harsh environments. It features a wide operating temperature range from -40°C to +85°C, a fanless design, a compact structure, and DIN rail mounting. It is widely used in data transmission for many industries such as transportation, telecommunications, security, banking, customs, ports, power stations, oil fields, etc.

The SH-G0180T series industrial-grade POE switch also supports POE output, supplying power to front-end PD devices like network cameras and wireless APs. It is suitable for situations where traditional wire cabling is inconvenient.

Ording Guide
Model Specification
SH-G0180T-SFP Industrial Unmanaged PoE Switch With 8*10/100Base-T RJ45 Ports +1*1000Base-X Port, SFP slot (module not included), DC48V-54V dual power supply, DIN rail-mounted, -40°C to 85°C
SH-G0180TM-31 Industrial Unmanaged PoE Switch With 8*10/100Base-T RJ45 Ports +1*1000Base-X Port, multimode 1310nm, 2KM, SC connector, DC48V-54V dual power, DIN rail-mounted, -40°C to 85°C
SH-G0180TS-20 Industrial Unmanaged PoE Switch With 8*10/100Base-T RJ45 Ports +1*1000Base-X Port, multimode 1310nm, 20KM, SC connector, DC48V-54V dual power, DIN rail-mounted, -40°C to 85°C
SH-GS0180T-3A Industrial Unmanaged PoE Switch With 8*10/100Base-T RJ45 Ports +1*1000Base-X Port, single-mode single-fiber T1310/R1550nm, 3KM, SC connector, DC48V-54V dual power supply, DIN rail-mounted, -40°C to 85°C
SH-GS0180T-3B Industrial Unmanaged PoE Switch With 8*10/100Base-T RJ45 Ports +1*1000Base-X Port, single-mode single-fiber T1550/R1310nm, 3KM, SC connector, DC48V-54V dual power supply, DIN rail-mounted, -40°C to 85°C
SH-GS0180T-20A Industrial Unmanaged PoE Switch With 8*10/100Base-T RJ45 Ports +1*1000Base-X Port, single-mode single-fiber T1310/R1550nm, 20KM, SC connector, DC48V-54V dual power supply, DIN rail-mounted, -40°C to 85°C
SH-GS0180T-20B Industrial Unmanaged PoE Switch With 8*10/100Base-T RJ45 Ports +1*1000Base-X Port, single-mode single-fiber T1550/R1310nm, 20KM, SC connector, DC48V-54V dual power supply, DIN rail-mounted, -40°C to 85°C
Technical specifications

Standard Description
IEEE802.3 Ethernet Protocol
IEEE802.3i 10Base-Tx
IEEE802.3u 100Base-Tx/Fx
IEEE802.3z 1000Base-X
IEEE802.3x Flow Control

Parameter Details
Copper Ports: 8 x 10/100M RJ45 Ports
Transmission Distance: ≤100m @100Base-T
≤250m @10Base-T
Optical Ports: 1 x 1000M LC/SC/FC/ST Optical Port;
or 1 x 1000M SFP Slot
Wavelength: Multi-mode: 850nm, 1310nm
Single-mode: 1310nm, 1550nm
Single-fiber: 1310/1550nm, 1490/1550nm
Transmission Distance: Multi-mode: 550m/2km; Single-mode: 3km~120km

Parameter Details
Backplane Bandwidth: 3.6G
MAC Address Table: 16K
Packet Forwarding Rate: 2.68Mpps
Store and Forward: Supported

Parameter Details
Input Voltage: DC48V-54V
Output Power: Max 30W per port
Wiring Pairs: 1/2 (+); 3/6 (-)

Parameter Details
Input Voltage: DC48V-54V
Power Consumption: ≤1W (Idle); ≤3.5W (Full Load, excluding POE)

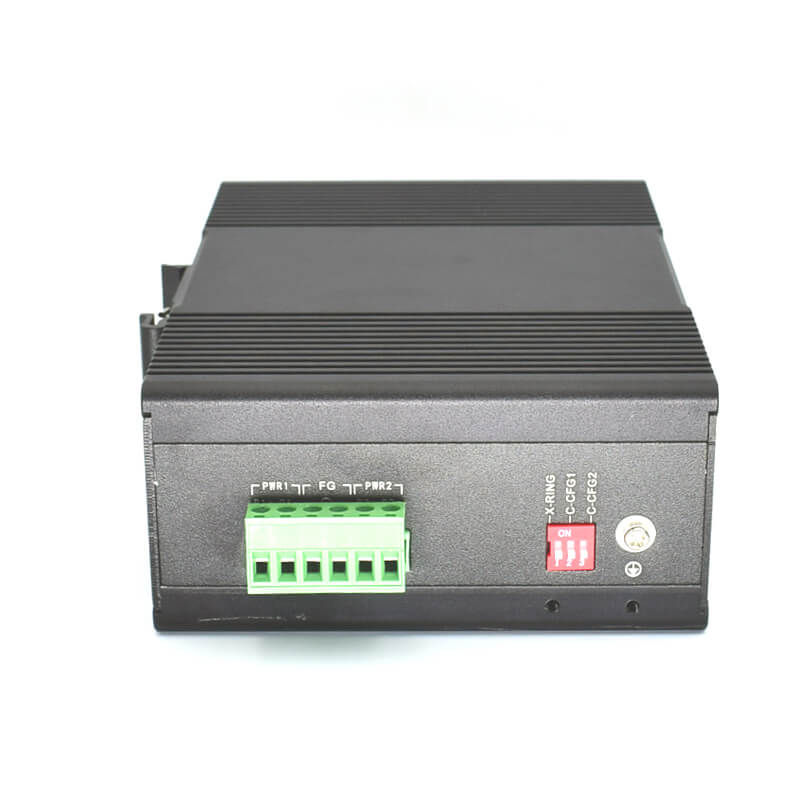

Interface: 6-Pin 5.08mm Pitch Terminal Block
Power Redundancy: Supported
Reverse Polarity Protection: Supported

Parameter Details
Operating Temperature: -40℃- +85℃
Operating Humidity: 5%-90% (Non-Condensing)
Storage Temperature: -40℃- +95℃
Storage Humidity: 5%-95% (Non-Condensing)

Parameter Details
Housing: Metal Extrusion
Protection Rating: IP40
Dimensions: 153×113×50mm
Weight: 0.57kg
Mounting: DIN Rail Mounting

Parameter Details
ESD Protection: IEC61000-4-2 (ESD), Level 3;
Air Discharge:±8KV, Contact Discharge:±6KV
Electromagnetic Field: IEC61000-4-3 (RS) 10V/m (80MHz~2GHz)
EFT/Burst: IEC61000-4-4, Level 3;
Power: ±2KV, Signal: ±1KV
Surge Protection: IEC61000-4-5, Level 3;
Power: Differential Mode ±2KV, Common Mode ±4KV
Signal: Differential Mode ±2KV, Common Mode ±6KV

Parameter Details
LED Indicators: Power Indicator
Optical Port Link/Act Indicator
Copper Port Link/Act Indicator
Copper Port Speed Indicator
MTBF: 500,000 Hours

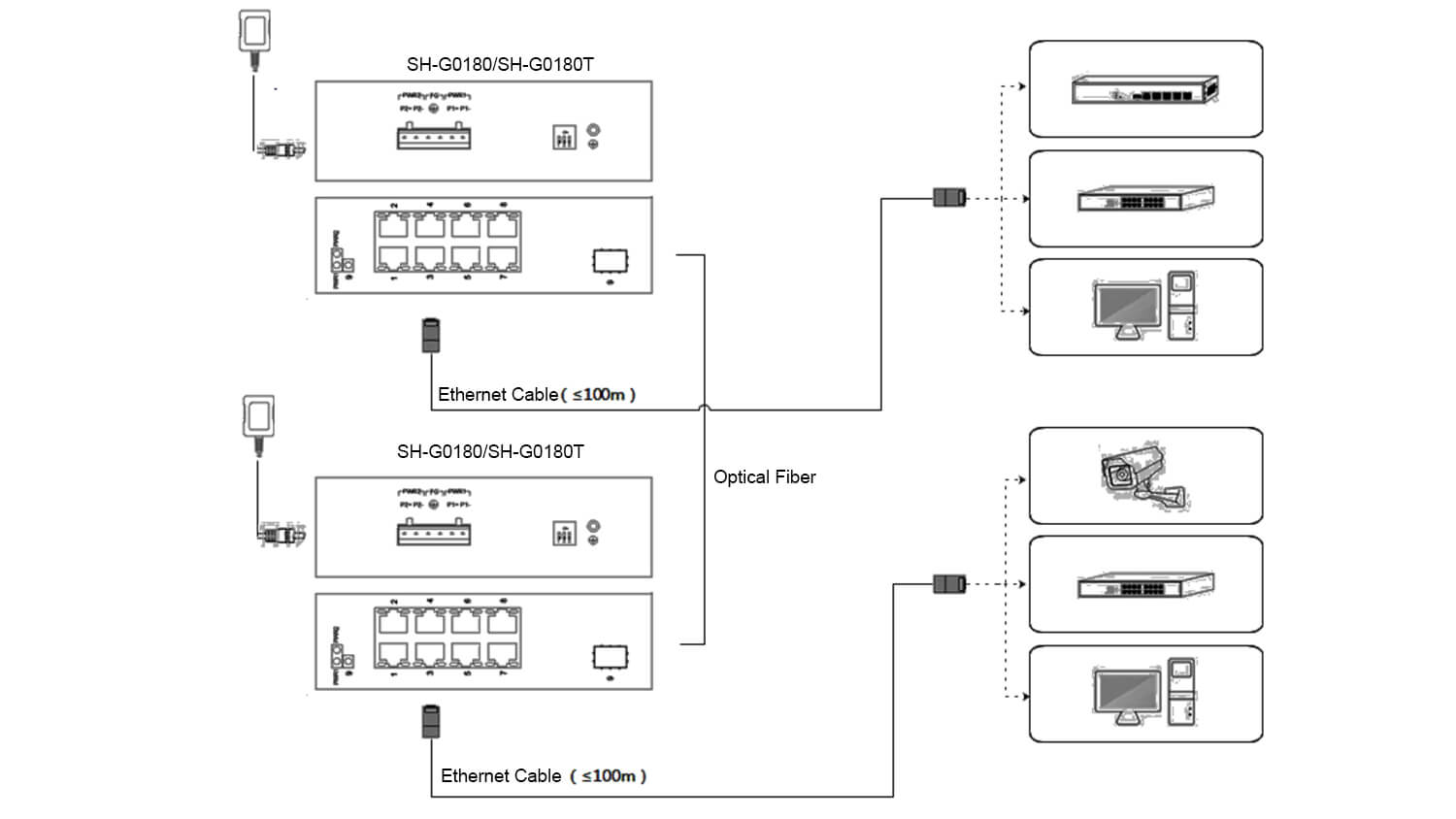

Applications

Quality Certifications

additional information

Model

SH-G0180T-SFP, SH-G0180TM-31, SH-G0180TS-20, SH-GS0180T-3A, SH-GS0180T-3B, SH-GS0180T-20A, SH-GS0180T-20B
