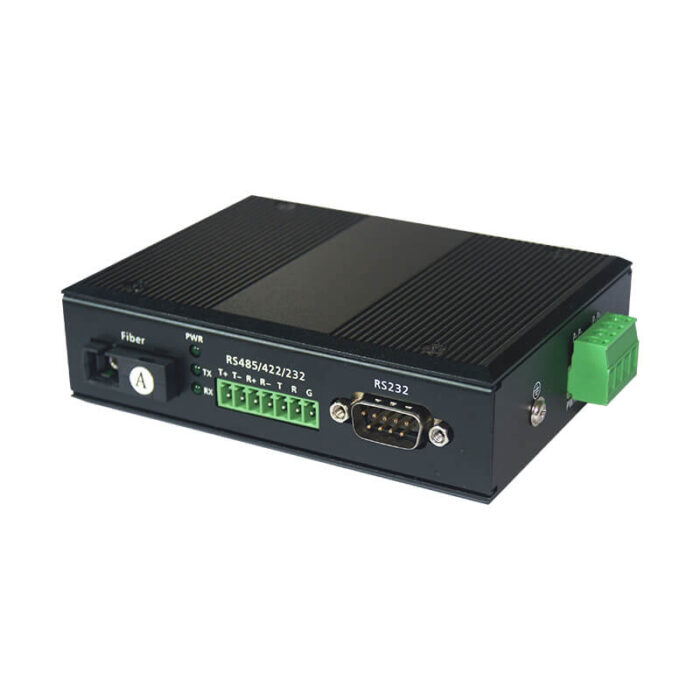

Rail-mounted Fiber Optic to Serial Converter 1*100M Fiber Ports to RS-232/485/422 Auto-Sensed Ports
Feature
- Dual RS-485 Channels (1 RS-422) + 1 RS-232 Channel
- Adaptive Single-Mode Fiber Optic Support
- Zero-Latency Automatic Data Forwarding
- Asynchronous Transmission for Point-to-Multipoint Applications with RS-485 to Fiber Conversion
- Auto-Detection of Serial Port Speed, Data Direction Discrimination, and Control
- Maximum Communication Rate: 0-115.2 Kbps
- Wide Voltage Input: DC 12-57V with External Power Supply
- Default SC Optical Interface
- Operating Wavelength: 1310nm/1550nm
- Surge Protection: 1500W, ESD Protection: 15KV
- Communication Distance: Up to 2km (Multi-Mode), 20-120km (Single-Mode)
- RS-485 Support for 32-Point Polling (128-Point Customizable)
- Applications: Industrial Automation Control, Access Control, One-Card Systems, Parking Systems, etc.
free delivery
Get free delivery in most regions. Only a few areas have extra shipping fees for your order.
secure payments
Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.
Return Policy
We stand by our products. You can return any item within 30 days if you’re not completely satisfied.
official products
All our products are sourced directly from official channels, offering you genuine items of the highest quality.
Product Detail
Description
The SH-G277 is a high-performance communication device designed to convert RS485, RS422, and RS232 serial signals into optical signals for transmission over fiber optic networks. It provides reliable data transfer with excellent anti-interference capabilities, making it ideal for applications in industrial automation, smart buildings, security monitoring, and other fields.
Order Guide
| Model | Interface Specification | Form Factor |
|---|---|---|
| SH-G277S-20-SC | 1x 100M dual-fiber SC optical port (20KM, 1310nm) to 1x RS-485/232/422 adaptive interface (3-in-1) | Rail-mounted |
| SH-G277S-20-FC | 1x 100M dual-fiber FC optical port (20KM, 1310nm) to 1x RS-485/232/422 adaptive interface (3-in-1) | Rail-mounted |
| SH-G277S-20-ST | 1x 100M dual-fiber ST optical port (20KM, 1310nm) to 1x RS-485/232/422 adaptive interface (3-in-1) | Rail-mounted |
| SH-GS277-20A/B-SC | 1x 100M single-fiber SC optical port (20KM, 1310/1550nm) to 1x RS-485/232/422 adaptive interface (3-in-1) | Rail-mounted |
| SH-GS277-20A/B-FC | 1x 100M single-fiber FC optical port (20KM, 1310/1550nm) to 1x RS-485/232/422 adaptive interface (3-in-1) | Rail-mounted |
| SH-GS277-20A/B-ST | 1x 100M single-fiber ST optical port (20KM, 1310/1550nm) to 1x RS-485/232/422 adaptive interface (3-in-1) | Rail-mounted |
RS-485 Data Characteristics
| Parameter | Specification |
|---|---|
| RS-485 Signals | T+, T-, R+, R- |
| Fiber Optic Signals | IN, OUT |
| Operation Mode | Asynchronous, Point-to-Point |
| Direction Control | Automatic data flow control technology, automatically discriminates and controls data transmission direction |
| Baud Rate | 0-115,200 Kbps, Auto-detects signal rate |
| Fiber Optic Wavelength | 1310nm/1550nm |
| Electrical Port Transmission Distance | 1000 meters for RS-485 port |
| Optical Port Transmission Distance | 20-120 kilometers for single-mode |
| Interface Protection | 600W Surge Protection, 1500V ESD Protection |
| Load Capacity | RS-485 port supports 32 nodes |
| Electrical Port Type | 7-pin Terminal Block |
RS-232 Data Characteristics
| Parameter | Specification |
|---|---|
| Application Scenarios | Supports multi-channel data, compatible with all control keyboards, matrix protocols, hard disk recording PTZ, alarm composite data, industrial application transmission |
| Physical Interface | Industrial terminal block (standard), RJ45 (customizable) |
| Data Rate | DC-250 Kbps |
| Data Error Rate | Less than 10E-12 |
| Maximum Number of Nodes | 32 |
| Maximum Distance | 1200m |
| Electrical Port Transmission Distance | 1000 meters for RS-485 port |
| Optical Port Transmission Distance | 20-120 kilometers for single-mode |
| Data Protocol | Fully transparent support for any RS-232 protocol, including RS-232 polling or Modbus protocol |
| Network Connection Mode | Supports bidirectional full-duplex |
| Physical Interface Terminal | Industrial terminal block |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -30°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% |
| Weight | 1KG |
| Input Power | Wide range: AC220V/DC12-57V |
| Power Consumption | 12W |
