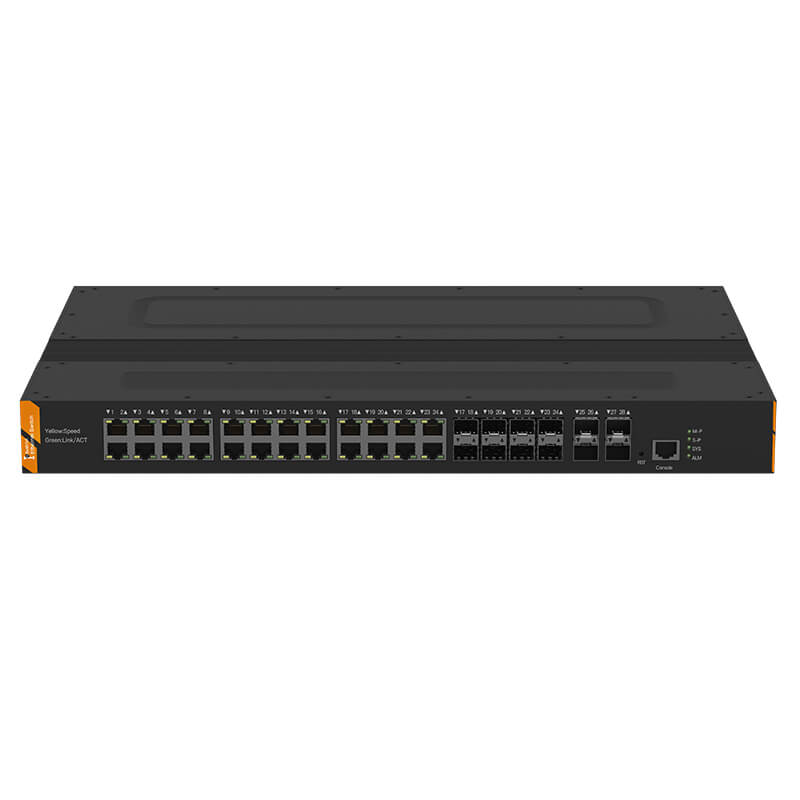

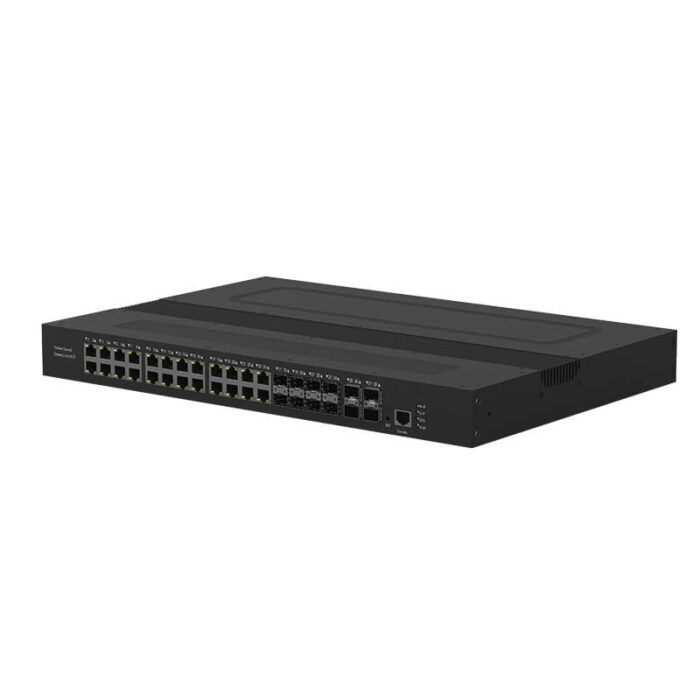

16*10/100/1000M RJ45 Base-T, 4*10G Base-X, 8 Combo Ports, Industrial Rack-mounted L2 Managed Switch SH-GM480016

Ports
– Base-T Ports: 16*10/100/1000M RJ45 ports
– Transmission Distance:
– ≤ 100 meters @100/1000Base-T
– ≤ 250 meters @10Base-T
– Base-X Ports: 4*10G Base-X SC/FC/ST ports;
– Or 4*10GBase-X SFP slots
– Wavelength:
– Multimode: 850nm, 1310nm
– Single-mode: 1310nm, 1550nm
– Single-fiber: 1310/1550nm, 1490/1550nm
– Transmission Distance:
– Multimode: 550m/2km; Single-mode: 3km~120km
– COMBO Ports: 8 groups

Switching Characteristics
– Switching Capacity: 128G
– MAC Address Table: 16K
– Packet Forwarding Rate: 95.232Mpps
– Store-and-Forward: Supported

Power Supply
– Power Supply Voltage: DC12V-54V
– Power Consumption: No-load ≤ 1.5W; Full-load ≤ 5W (excluding POE)

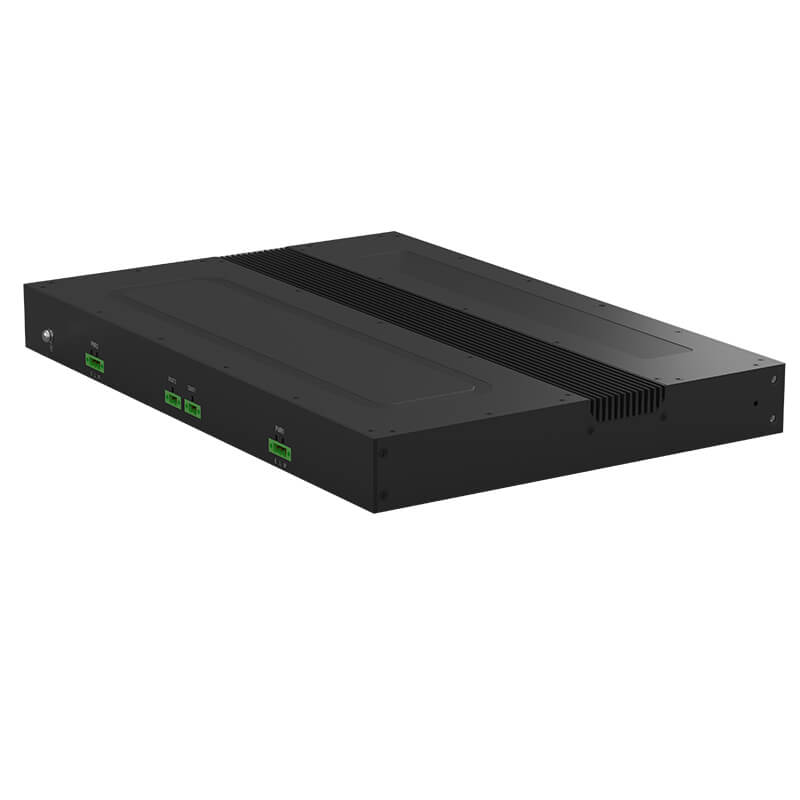

– Interface: 6-core 5.08mm pitch terminal block
– Power Redundancy: Supported
– Reverse Connection Protection: Supported

Environment
– Operating Temperature: -40℃ – +85℃
– Operating Humidity: 5%-90% (non-condensing)
– Storage Temperature: -40℃ – +95℃
– Storage Humidity: 5%-95% (non-condensing)

Mechanical Structure
– Enclosure: Metal profile
– Protection Level: IP40
– Dimensions: Standard 1U, with a depth of 300mm
– Net Weight: 0.91kg
– Installation Method: Rack-mounted installation

Safety Regulations
– Electrostatic Discharge Protection (ESD): IEC61000-4-2 Level 3;
– Air Discharge: ±8KV, Contact Discharge: ±6KV
– Electromagnetic Field: IEC61000-4-3
– Instantaneous High Voltage (EFT): IEC61000-4-4 Level 3;
– Power Supply: ±2KV, Signal: ±1KV
– Surge Protection: IEC61000-4-5 Level 3;
– Power Supply: Differential Mode ±2KV, Common Mode ±4KV
– Signal: Differential Mode ±2KV, Common Mode ±6KV

Others

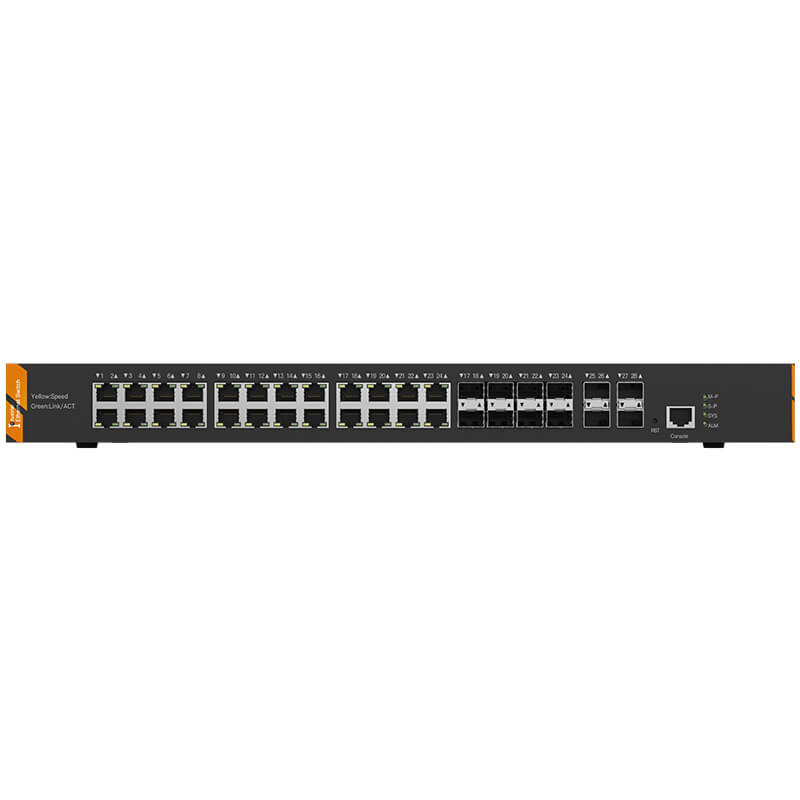

– LED:
– Power Indicator
– Optical Port Link/Act Indicator
– Electrical Port Link/Act Indicator
– Electrical Port Rate Indicator
– MTBF: 500,000 hours

Protocol Standards
– IEEE 802.3: Ethernet Protocol
– IEEE 802.3i: 10Base-Tx
– IEEE 802.3u: 100Base-Tx/Fx
– IEEE 802.3z: 1000Base-X
– IEEE 802.3ab: 1000Base-Tx
– IEEE 802.3x: Flow Control
– IEEE 802.3af/at: POE/POE+
– IEEE 802.3ad: LACP (Link Aggregation Control Protocol)
– IEEE 802.1p: COS (Class of Service)
– IEEE 802.1q: VLAN (Virtual Local Area Network)
– IEEE 802.1d: STP (Spanning Tree Protocol)
– IEEE 802.1w: RSTP (Rapid Spanning Tree Protocol)
– IEEE 802.1x: Security Authentication
– IEEE 802.1ab: LLDP (Link Layer Discovery Protocol)
– IEEE 802.3af/at: Ethernet Power over Ethernet Protocol

Switching Characteristics
– Redundant Network: Supports STP/RSTP/MSTP and ERPS
– Loop Protection: Supports the proprietary loop protection protocol
– ERPS: Supports single ring, tangent ring, intersecting ring and multiple rings
– MAC Address Table: Complies with the IEEE 802.1q standard;
Supports automatic learning and aging of MAC addresses; Supports static and dynamic MAC entries
– Mirroring: Supports port-based bidirectional mirroring, VLAN-based input mirroring and flow-based input mirroring
– Layer 2 Multicast: Supports IGMP V1, V2, V3 Snooping; Supports source port checking; Supports IGMP Fast Leave; Supports IGMP Filter; Supports IGMP proxy
– VLAN: Supports port-based VLAN; Supports access ports, trunk ports and hybrid ports
– Private VLAN: Supported
– GVRP: Supported
– Port Aggregation: Supports static aggregation and dynamic aggregation (LACP protocol)

Security Features
– QOS: Supports QoS re-marking, priority mapping, and supports SP, WRR as well as SP + WRR scheduling algorithms. Supports ingress rate limiting, ingress priority rate limiting, egress rate limiting, egress queue rate limiting, flow-based QoS and storm suppression. Each port supports 8 queues.
– ACL: Supports matching fields of L2, L3 and L4 layers, and supports behaviors such as logging, redirection, mirroring and rate limiting.
– Dot1x: Supports port-based 1X authentication, user-based 1X authentication, MAC-based authentication and Radius service.
– IP Source Guard: Supports dynamic entries (from DHCP Snooping) and static entries (from configuration).
– ARP Inspection: Supports dynamic entries (from DHCP Snooping) and static entries (from configuration).
– Diagnostic and Maintenance: Supports ping (IPv4), ping (IPv6), traceroute (IPv4) and traceroute (IPv6).

Management Characteristics
– Management Functions: Supports Telnet, CLI, WEB and SNMP management methods.
– SNMP: Supports SNMP V2C and SNMP V3.
– RMON: Supports the statistics group, history group, alarm group and event group.
– Web Management: Supports Web management, HTTP V1.1 and HTTPS.
– IPV4/IPV6: Supports IPv4 and IPv6.
– Security Functions: Supports DHCP Snooping, 802.1X, hierarchical user management, ACL access control lists, Supports DDOS, and port-based MAC filtering/binding.
– Port Management: Supports port enabling and disabling, rate setting, and 802.3x flow control.

Application Features
– NTP: Supports NTP Client.
– DHCP Client: Supported.
– DHCP Snooping: Supports establishing the Snooping table; Supports trusted ports.
– TFTP: Supports TFTP Client.
– Telnet: Supports Telnet Server.
– SSH: Supports SSH Server.
– Version Upgrade: Supported.
