SH-GM200008

Industrial L2 Managed PoE Switch WIth 8*10/100/1000Base-T RJ45 PoE Ports + 2*10GBase-FX SFP Slot SH-GM200008
Industrial L2 Managed PoE Switch WIth 8*10/100/1000Base-T RJ45 PoE Ports + 2*10GBase-FX SFP Slot SH-GM200008 - Image 2
Industrial L2 Managed PoE Switch WIth 8*10/100/1000Base-T RJ45 PoE Ports + 2*10GBase-FX SFP Slot SH-GM200008 - Image 3
Categories: , ,

Industrial L2 Managed PoE Switch WIth 8*10/100/1000Base-T RJ45 PoE Ports + 2*10GBase-FX SFP Slot SH-GM200008

Feature
  • Provides 8*10/100/1000Base-T ports.
  • Offers 2 SFP slots, supporting the insertion of 10G SFP modules.
  • Supports standard Ethernet protocols such as IEEE802.3.
  • Complies with the ITU-T G.8032 standard for the ERPS (Ethernet Ring Protection Switching) ring network protocol, with a self-healing time within 20 milliseconds.
  • Supports network redundancy protocols including STP (Spanning Tree Protocol), RSTP (Rapid Spanning Tree Protocol), and MSTP (Multiple Spanning Tree Protocol).
  • Supports multicast management of IGMP v1/v2/v3 (IGMP snooping).
  • Supports network management of SNMP v2c/v3 and 802.1Q VLAN.
  • Can be managed and configured through multiple means such as Web, Telnet, and Console (CLI).
  • Features a fanless design and a high-strength metal enclosure.

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

free delivery

Get free delivery in most regions. Only a few areas have extra shipping fees for your order.

secure payments

Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.

Return Policy

We stand by our products. You can return any item within 30 days if you’re not completely satisfied.

official products

All our products are sourced directly from official channels, offering you genuine items of the highest quality.

Product Detail

Description

SH-GM200008 industrial-grade L2 managed switch provides 8*10/100/1000Base-T ports and 2*10000M SFP slots. It supports the ERPS (Ethernet Ring Protection Switching) ring network and the one-click ring network function. It complies with the G.8032 ERPS Ethernet ring network protection switching protocol, and the self-healing time can be within 20 milliseconds. In case of network failures, it can quickly recover, ensuring uninterrupted communication for critical applications.

It can operate stably within a wide temperature range from -40°C to +85°C, ensuring the stable operation of the device in harsh environments. In addition, it supports L2 network management functions and can be managed and configured via Web, Telnet, Console (CLI) and SNMP.

This switch is widely applied in various industrial application scenarios, including industrial control automation, road traffic control automation, building automation control systems, mine automation control systems, oilfield control automation, hydropower station control automation, power system control automation, and computer room monitoring systems.

Ordering Guide
Model Description
SH-GM200008 Industrial L2 Managed Switch WIth 8*10/100/1000Base-T RJ45 Ports + 2*10GBase-FX SFP+ Slot (Modules Excluded), DC Dual-power Redundancy
SH-GM200008T Industrial L2 Managed PoE Switch WIth 8*10/100/1000Base-T RJ45 PoE Ports + 2*10GBase-FX SFP+ Slot, ERPS Ring Network Supported, Layer-2 Network Management Supported, DC 12-54V Input, -40℃ to +85℃
Hardware Parameters

Parameters Specifications
Copper Ports 8*10/100/1000M RJ45 ports
Transmission Distance
  • ≤ 100 meters @100/1000Base-T
  • ≤ 250 meters @10Base-T
Fiber Ports 2*10000M SFP slots
Wavelength
  • Multimode: 850nm, 1310nm
  • Single-mode: 1310nm, 1550nm
  • Single-fiber: 1310/1550nm, 1490/1550nm
Transmission Distance
  • Multimode: 550m/2km
  • Single-mode: 3km~120km

Parameters Specifications
Backplane Bandwidth 56G
MAC Address Table 16K
Packet Forwarding Rate 41.66Mpps
Store-and-Forward Supported

Parameters Specifications
Power Supply Voltage DC12V-54V
Power Consumption
  • No-load ≤ 1.5W
  • Full-load ≤ 5W
Interface 6-core 5.08mm pitch terminal block
Power Redundancy Supported
Reverse Connection Protection Supported

Parameters Specifications
Operating Temperature -40℃ – +85℃
Operating Humidity 5%-90% (non-condensing)
Storage Temperature -40℃ – +95℃
Storage Humidity 5%-95% (non-condensing)

Parameters Specifications
Enclosure Metal profile
Protection Level IP40
Dimensions 154×113×55mm
Net Weight 0.91kg
Installation Method Rail-mounted installation

Parameters Specifications
Electrostatic Discharge Protection (ESD)
  • IEC61000-4-2 Level 3
  • Air Discharge: ±8KV
  • Contact Discharge: ±6KV
Electromagnetic Field IEC61000-4-3
Instantaneous High Voltage (EFT)
  • IEC61000-4-4 Level 3
  • Power Supply: ±2KV
  • Signal: ±1KV
Surge Protection
  • IEC61000-4-5 Level 3
  • Power Supply: Differential Mode ±2KV, Common Mode ±4KV
  • Signal: Differential Mode ±2KV, Common Mode ±6KV

Parameters Specifications
LED
  • Power Indicator
  • Optical Port Link/Act Indicator
  • Electrical Port Link/Act Indicator
  • Electrical Port Rate Indicator
MTBF 500,000 hours
Software Features

Standard Description
IEEE802.3 Ethernet protocol
IEEE802.3i 10Base-Tx
IEEE802.3u 100Base-Tx/Fx
IEEE802.3z 1000Base-X
IEEE802.3ab 1000Base-Tx
IEEE802.3x Flow control
IEEE802.3ad LACP (Link Aggregation Control Protocol)
IEEE802.1p COS (Class of Service)
IEEE802.1q VLAN (Virtual Local Area Network)
IEEE802.1d STP (Spanning Tree Protocol)
IEEE802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE802.1x Security authentication
IEEE802.1ab LLDP (Link Layer Discovery Protocol)

Feature Details
DIP Switch One-click ring network
Redundant Network Supports STP/RSTP/MSTP and ERPS
Loop Protection Supports proprietary loop protection protocol
ERPS Supports single ring, tangent ring, intersecting ring and multiple rings
MAC Address Table Complies with IEEE 802.1q standard;
Supports automatic learning/aging of MAC addresses;
Supports static/dynamic MAC entries
Mirroring Supports port-based two-way mirroring,
VLAN-based input mirroring,
flow-based input mirroring
Layer 2 Multicast Supports IGMP V1/V2/V3 Snooping;
Source port checking;
IGMP Fast Leave/Filter/proxy
VLAN Supports port-based VLAN;
Access/trunk/hybrid ports
Private VLAN Supported
GVRP Supported
Port Aggregation Supports static aggregation and dynamic aggregation (LACP protocol)

Feature Details
QOS Supports QoS re-marking, priority mapping,
SP/WRR/SP+WRR scheduling;
Ingress/egress rate limiting,
flow-based QoS, storm suppression;
8 queues per port
ACL Supports L2/L3/L4 matching fields;
Logging/redirection/mirroring/rate limiting behaviors
Dot1x Supports port/user/MAC-based authentication;
Radius service
IP Source Guard Supports dynamic (DHCP Snooping) and static (configuration) entries
ARP Inspection Supports dynamic (DHCP Snooping) and static (configuration) entries
Diagnostic Maintenance Supports ping (IPv4/IPv6), traceroute (IPv4/IPv6)

Feature Details
Management Methods Telnet, CLI, WEB, SNMP
SNMP Supports SNMP V2C and V3
RMON Supports statistics/history/alarm/event groups
Web Management Supports HTTP/HTTPS
IP Support IPv4 and IPv6
Security Functions DHCP Snooping, 802.1X, hierarchical user management,
ACL, DDOS protection, port-based MAC filtering/binding
Port Management Port enable/disable, rate setting, 802.3x flow control

Feature Details
NTP Supports NTP Client
DHCP Client Supported
DHCP Snooping Supports Snooping table; Trusted ports
TFTP Supports TFTP Client
Telnet Supports Telnet Server
SSH Supports SSH Server
Version Upgrade Supported

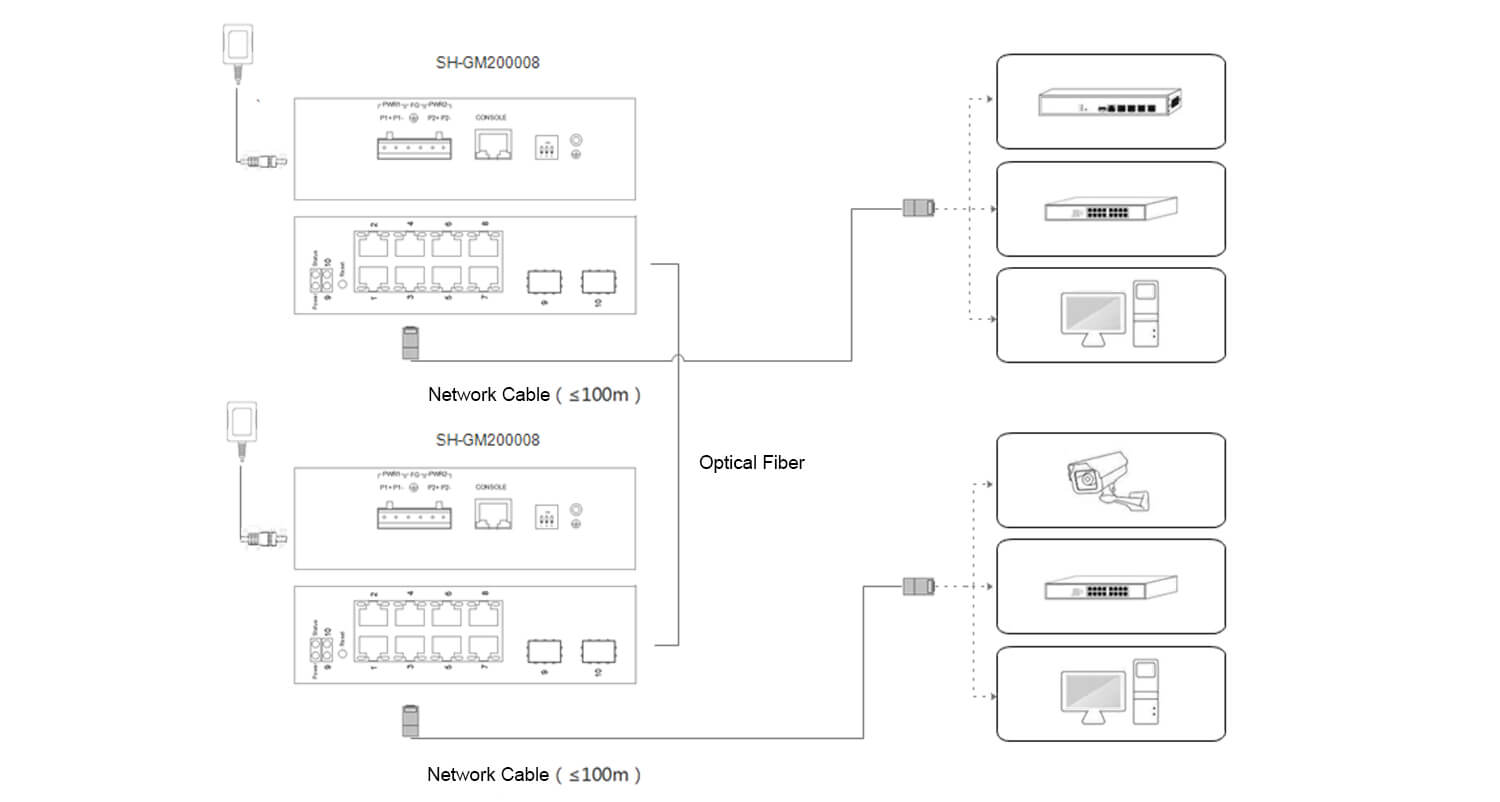

Application

Quality Certifications

additional information

Model

SH-GM200008, SH-GM200008T
