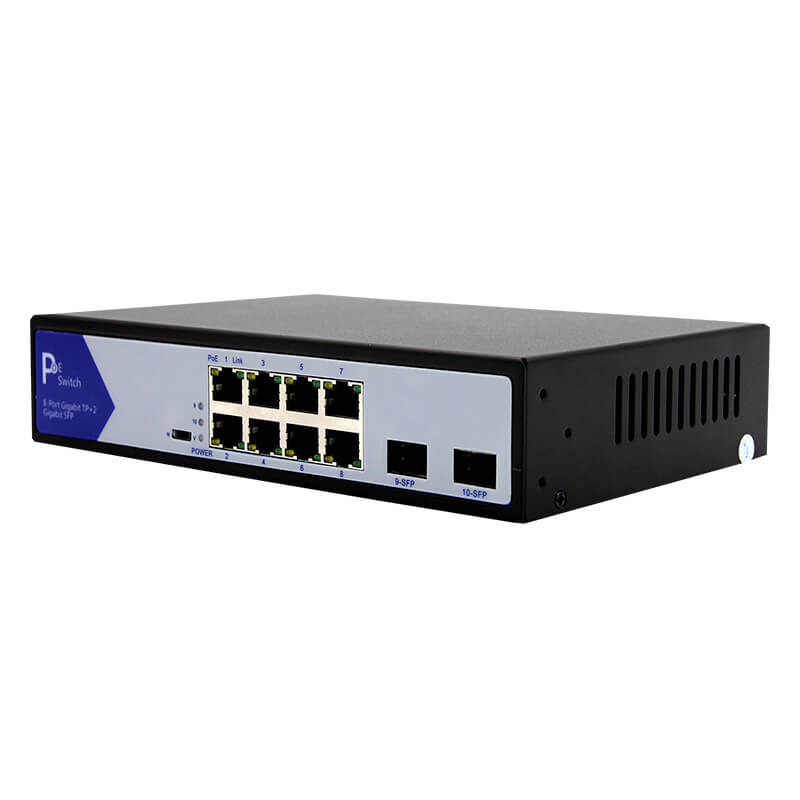

SH-328T

Commercial Unmanaged PoE Switch 8*10/100/1000Base-T RJ45 PoE Ports + 2*1000Base-X SFP Ports

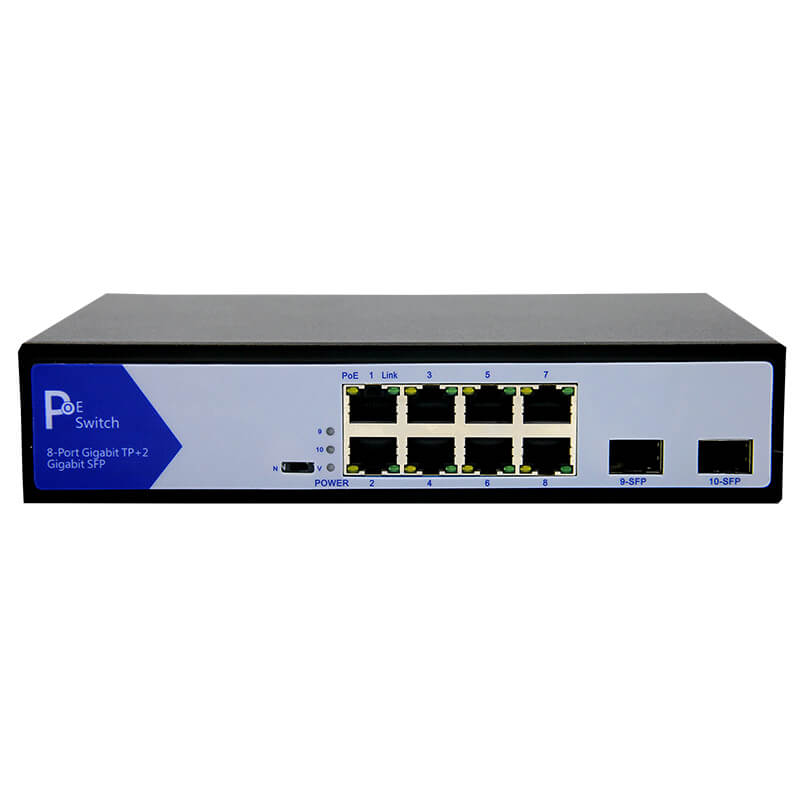

Commercial Unmanaged PoE Switch 8*10/100/1000Base-T RJ45 PoE Ports + 2*1000Base-X SFP Ports - Image 2

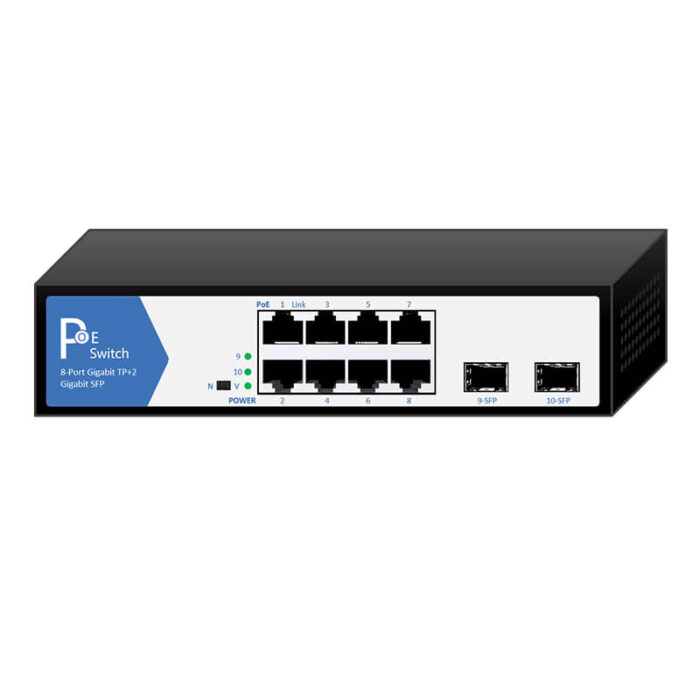

Commercial Unmanaged PoE Switch 8*10/100/1000Base-T RJ45 PoE Ports + 2*1000Base-X SFP Ports - Image 3

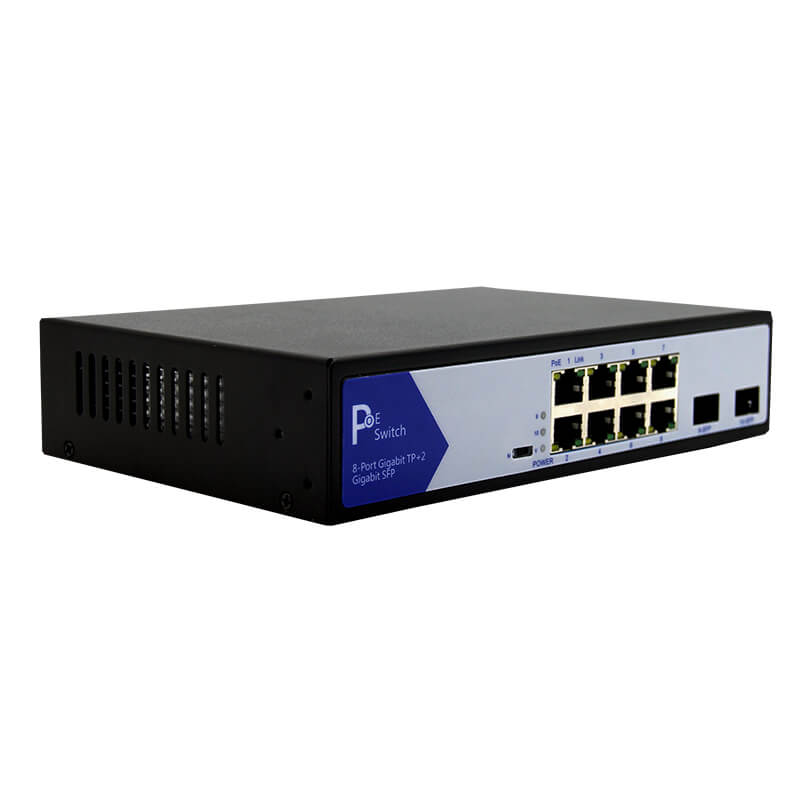

Commercial Unmanaged PoE Switch 8*10/100/1000Base-T RJ45 PoE Ports + 2*1000Base-X SFP Ports - Image 4
Categories: ,

Commercial Unmanaged PoE Switch 8*10/100/1000Base-T RJ45 PoE Ports + 2*1000Base-X SFP Ports

Feature
  • 8 x 10/100/1000Base-T PoE ports + 2 x 1000Base SFP uplink ports
  • Compliant with IEEE802.3af/at PoE standards, max. 30W per port
  • 20G backplane bandwidth for high-speed data switching
  • One-key VLAN configuration for secure data transmission
  • Built-in power supply, stable and reliable, up to 150W total power
  • Dual power input: DC 48V and AC 100–240V
  • Lightning/surge protection, short-circuit protection, over/under-voltage protection
  • Metal housing for efficient heat dissipation, plug-and-play, easy maintenance

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

free delivery

Get free delivery in most regions. Only a few areas have extra shipping fees for your order.

secure payments

Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.

Return Policy

We stand by our products. You can return any item within 30 days if you’re not completely satisfied.

official products

All our products are sourced directly from official channels, offering you genuine items of the highest quality.

Product Detail

Description
The SH-328T commercial unmanaged PoE switch features 8*10/100/1000Base-T RJ45 PoE ports and 2*1000Base-X SFP uplink ports. It supports both DC 48V and AC 100–240V power inputs, making it a high-performance solution widely used in network access, wireless coverage, and security surveillance applications.
  • PoE Standards Support: Complies with IEEE 802.3af and IEEE 802.3at PoE standards, delivering up to 30W per port to power PoE devices such as IP cameras, wireless APs, and VoIP phones via a single Ethernet cable. Ideal for locations where power cabling is challenging.
  • DIP Switch VLAN Isolation: Unique DIP switch design enables one-key VLAN isolation mode, isolating ports 1–8 to prevent DHCP spoofing and suppress broadcast storms, enhancing network security.
Order Guide
Model Specifications
SH-328 Commercial Unmanaged PoE Switch 8*10/100/1000Base-T RJ45 PoE Ports + 2*1000Base-X SFP Ports，DC/AC power supply, 30W,  built-in 150W power supply.
Technical Specifications

Mode Description
N Normal Mode
V VLAN Mode (Ports 1–8 isolated from each other)

8 x 10/100/1000Base-T PoE ports
2 x 1000Base-F SFP uplink slots

Parameter Specification
Backplane bandwidth 20G
MAC address table 4K entries
Switching mode Store-and-forward

IEEE802.3, IEEE802.3i (10Base-T), IEEE802.3u (100Base-T), IEEE802.3ab (1000BASE-T),
IEEE802.3z (1000BASE-X), IEEE802.3x (Flow Control), IEEE802.1q (VLAN),
IEEE802.3af (PoE), IEEE802.3at (PoE+)

Media Distance
Category 5e/6 UTP 100 meters
Multi-mode fiber 550 meters
Single-mode fiber 20/40/80/120 kilometers

Parameter Specification
PoE ports 8
Voltage/Power DC 48V, max. 30W per port
Power pairs 1/2(+), 3/6(-)

Parameter Specification
Input Voltage AC 100–240V, 50/60Hz input
Or DC 48V–57V input
Total power 150W

Power indicator, VLAN mode indicator, PoE indicator, Ethernet port link indicator,
1000M speed indicator, SFP port link indicator

Parameter Specification
Operating temperature -10°C to +55°C
Storage temperature -40°C to +70°C
Operating humidity 10–90% non-condensing
Storage humidity 5–90% non-condensing

Parameter Specification
Dimensions (WxDxH) 210x140x45mm
Weight 1450g
