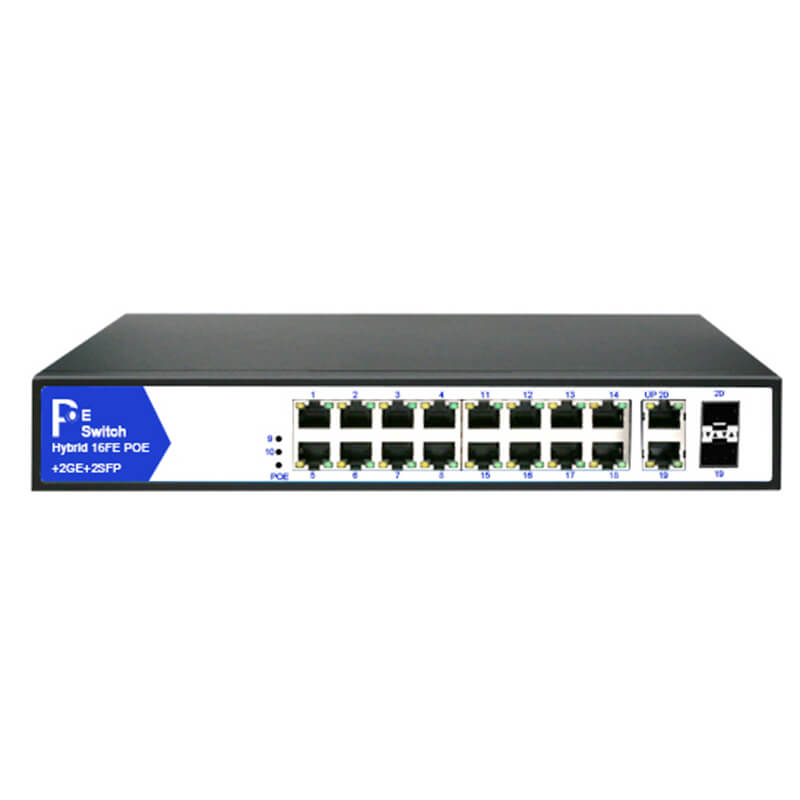

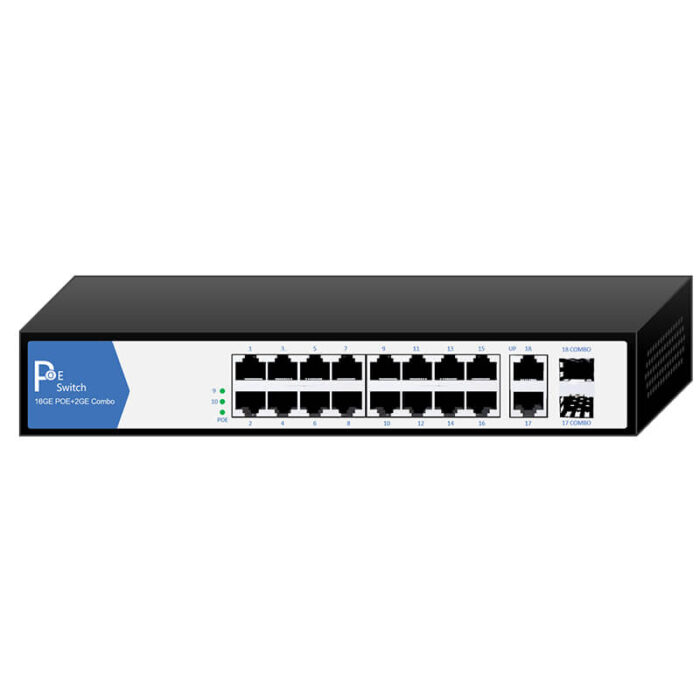

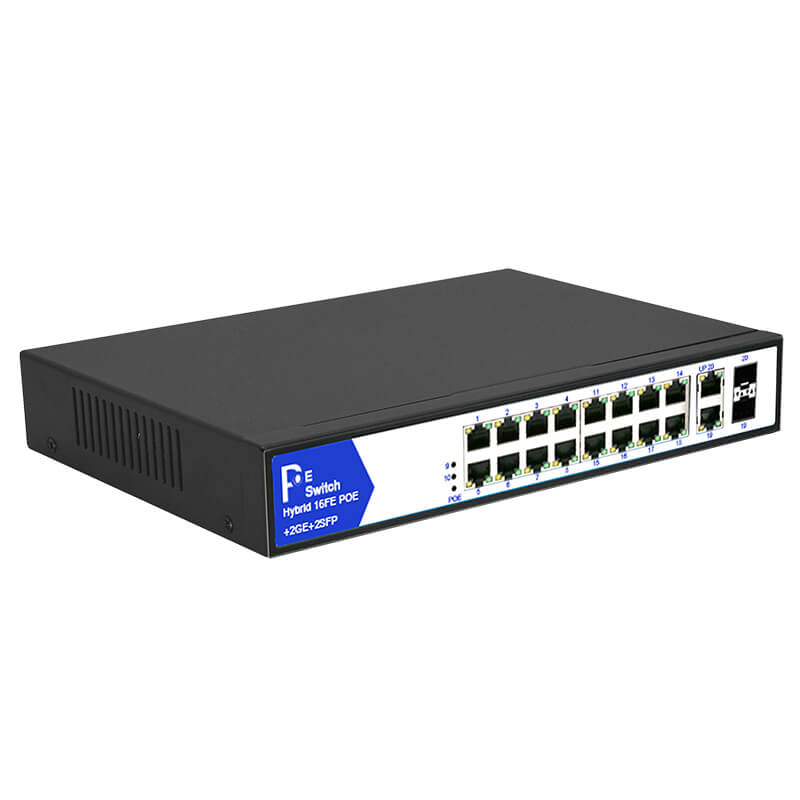

SH-3216TC

Commercial Unmanaged PoE Switch With 16*10/100/1000Base-T PoE Ports+2*1000M SFP Combo Ports

Feature
  • 16 x 10/100/1000Base-T PoE Ports
  • 2 x Combo Ports (2 x RJ45 + 2 x SFP)
  • Auto-Negotiation: 10/100/1000Mbps
  • Auto-MDI/MDI-X Crossover Support
  • Full/Half-Duplex Auto-Negotiation
  • IEEE802.3af/at PoE+ Compliant, Up to 30W per Port
  • 56Gbps Backplane Bandwidth for High-Speed Data Transfer
  • Built-in 150W Power Supply for Stable Operation
  • Dual AC Input: 100-240VAC
  • Metal Enclosure for Efficient Heat Dissipation, Plug-and-Play Design

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

free delivery

Get free delivery in most regions. Only a few areas have extra shipping fees for your order.

secure payments

Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.

Return Policy

We stand by our products. You can return any item within 30 days if you’re not completely satisfied.

official products

All our products are sourced directly from official channels, offering you genuine items of the highest quality.

Product Detail

Description

The sh-3216tc commercial unmanaged PoE switch offers 16*10/100/1000Base-T PoE ports, 2 x 1000M uplink ports, and 2 x 1000M SFP optical ports. As a high-performance PoE switch, it is widely used in network access, wireless coverage, security monitoring, and other applications.

Order Guide
Model Specifications
SH-3216TC Commercial Unmanaged PoE Switch With 16*10/100/1000Base-T PoE Ports+2*1000M SFP Combo Ports, IEEE802.3af/at , 30W/Port , 300W Built-in Power Supply
Technical Specifications
Type Specification
Copper Ports 16 x 10/100/1000Base-T PoE ports (Data/Power)
Combo Ports 2 x 1000M Combo ports (2 x RJ45 + 2 x  SFP fiber ports for uplink)
Parameter Specification
Backplane bandwidth 56G
MAC address table 8K entries
Switching mode Store-and-forward switching mode supported
Protocol Description
IEEE 802.3 Ethernet
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control
IEEE 802.3z 1000BASE-X
IEEE 802.3af/at PoE/PoE+ standards
Standard Media Distance
10BASE-T Cat3, 4, 5 UTP ≤250m
100BASE-TX Cat5 or later UTP ≤150m
1000BASE-TX Cat6 or later UTP ≤150m
1000BASE-SX 62.5μm/50μm MMF 2m~550m
1000BASE-LX 62.5μm/50μm MMF 2m~550m
1000BASE-LX 10μm SMF 2m~5000m
Parameter Specification
Default power pairs 1/2(+), 3/6(-)
Optional power pairs 4/5(+), 7/8(-)
Parameter Specification
Type Built-in switching power supply
AC input 100–240V, 50–60Hz, 1A
Indicator Function
POWER Power indicator
19, 20 Optical port link indicators
Uplink ports Network link indicators (green/100M + yellow/1000M)
Port indicators PoE operation (orange), Link status (green)
Parameter Range
Operating temperature -10°C–55°C
Storage temperature -40°C–75°C
Operating humidity 5%–90% (non-condensing)
Storage humidity 5%–95% (non-condensing)
Parameter Value
Product dimensions 295mm × 195mm × 45mm
Packaging dimensions 410mm × 275mm × 95mm
Net weight 1.7kg
Gross weight 2.4kg
