SH-3224T

Commercial Unmanaged PoE Switch With 24*10/100/1000Base-TX PoE RJ45 Ports + 2*100/1000Base-X Ports

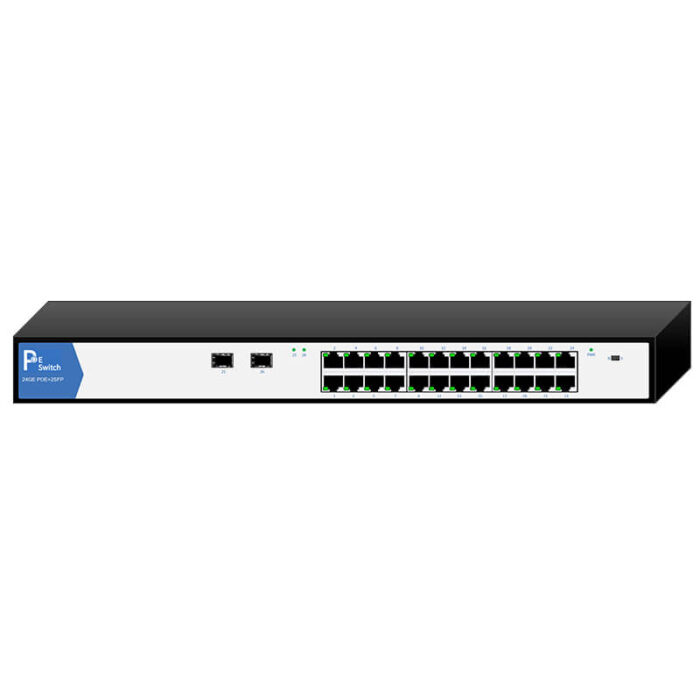

Commercial Unmanaged PoE Switch With 24*10/100/1000Base-TX PoE RJ45 Ports + 2*100/1000Base-X Ports - Image 2

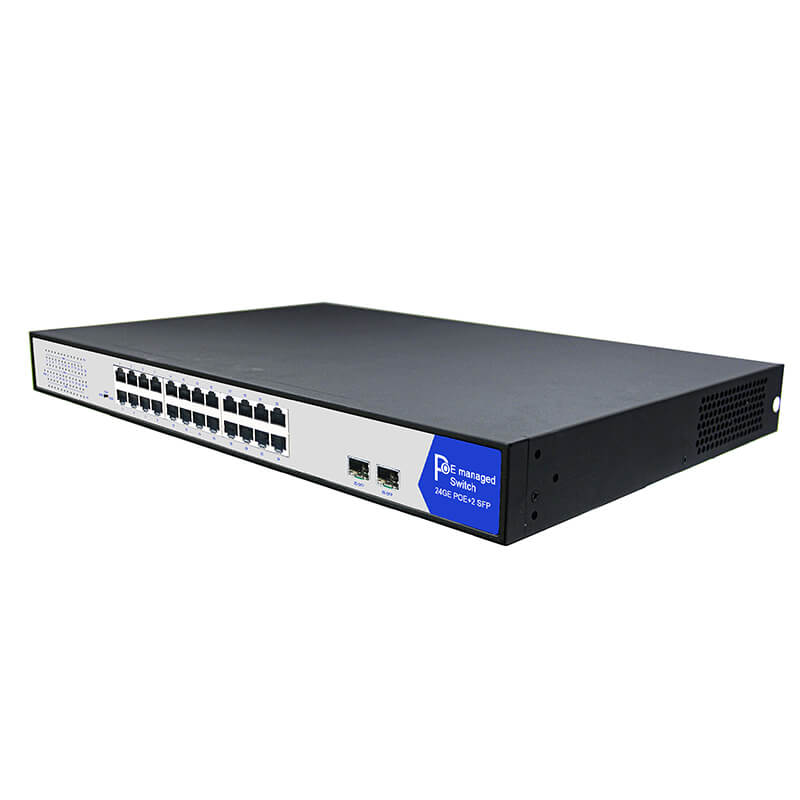

Commercial Unmanaged PoE Switch With 24*10/100/1000Base-TX PoE RJ45 Ports + 2*100/1000Base-X Ports - Image 3
Categories: ,

Commercial Unmanaged PoE Switch With 24*10/100/1000Base-TX PoE RJ45 Ports + 2*100/1000Base-X Ports

Feature
  • World-known brand chipset, reliable and high performance
  • Support 24×10/100/1000Base-TX POE and 2×10/100/1000Base-FX uplink ports
  • Support IEEE802.3af/at POE standards, max. 30W output each port
  • 56G switching capacity, high bandwidth for data transmission
  • Support one key VLAN mode/Long transmission mode, meeting different requirements
  • Reliable design of built-in power mode, up to 400W power output totally
  • Support AC100~240V dual power input
  • 19-inch 1U structure, can be used in the cabinet
  • Anti lightning and surge protection
  • Compact casing design, plug and play, easy mantainence

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

free delivery

Get free delivery in most regions. Only a few areas have extra shipping fees for your order.

secure payments

Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.

Return Policy

We stand by our products. You can return any item within 30 days if you’re not completely satisfied.

official products

All our products are sourced directly from official channels, offering you genuine items of the highest quality.

Product Detail

Description

SH-H3224T PoE Switch provides 24×10/100/1000Base-Tx PoE ports, 2×10/100/1000Base-Fx uplink ports. It supports dual power supplies either by DC48V or AC100~240V, and is an high-performance PoE switch for wireless network, CCTV transmission, access connectivity.

SH-H3224T PoE Switch complies with IEEE802.3af/at PoE standards. It provides max. 30W PoE power for powered device (PD) such as IP camera, wireless AP, IP telephone where power cabling is not available.

SH-H3224T PoE Switch supports one key configuration of VLAN mode and long transmission mode. Under VLAN mode, ports 1~24 is isolated each other, preventing DHCP spoofing and suppressing broadcast storms.

Order Guide
Model Specifications
SH-3224T Commercial Unmanaged Switch With 24*10/100/1000Base-TX RJ45 Ports + 2*100/1000Base-FX Ports, SFP Slots, AC 100-240V, External Power Supply
Technical Specifications

Type Specification
Copper Ports 24×10/100/1000Base-T PoE ports, RJ45
Fiber Ports 2×10/100/1000Base-Fx ports

Parameter Specification
Capacity 56G
CPU frequency 500MHZ
RAM 128M
MAC address table 8K
Packet buffer 4.1M cache
FLASH 16M
Transmission Mode Support store-and-forward transmission

Standard Description
IEEE802.3 Ethernet
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000BASE-T
IEEE802.3z 1000BASE-X
IEEE802.3x Flow Control
IEEE802.1q VLAN
IEEE802.3af PoE
IEEE802.3at PoE+

Media Distance
Cat5/5e/6 100m under normal mode
Multi mode Fiber 550m
Single mode Fiber 20/40/80/120km

Parameter Specification
Active Ports 24 ports
Power Pairs 1/2(+), 3/6(-)
Voltage DC48V
Max. Power per Port 30W

Parameter Specification
Input Voltage AC100~240V 50/60Hz
Total Power 400W

Indicator Function
Power Power status
S Enable extra transmission mode
V Enable VLAN mode
POE ports PoE status
LINK/ACT ports Link and activity status

Parameter Range
Working Temperature 0~40℃
Storage Temperature -40~70℃
Working Humidity 10~90% non-condensation
Storage Humidity 5~90% non-condensation

Parameter Specification
Casing Mental Casing
Dimensions (W*D*H) 440x290x45mm
Weight 4300g

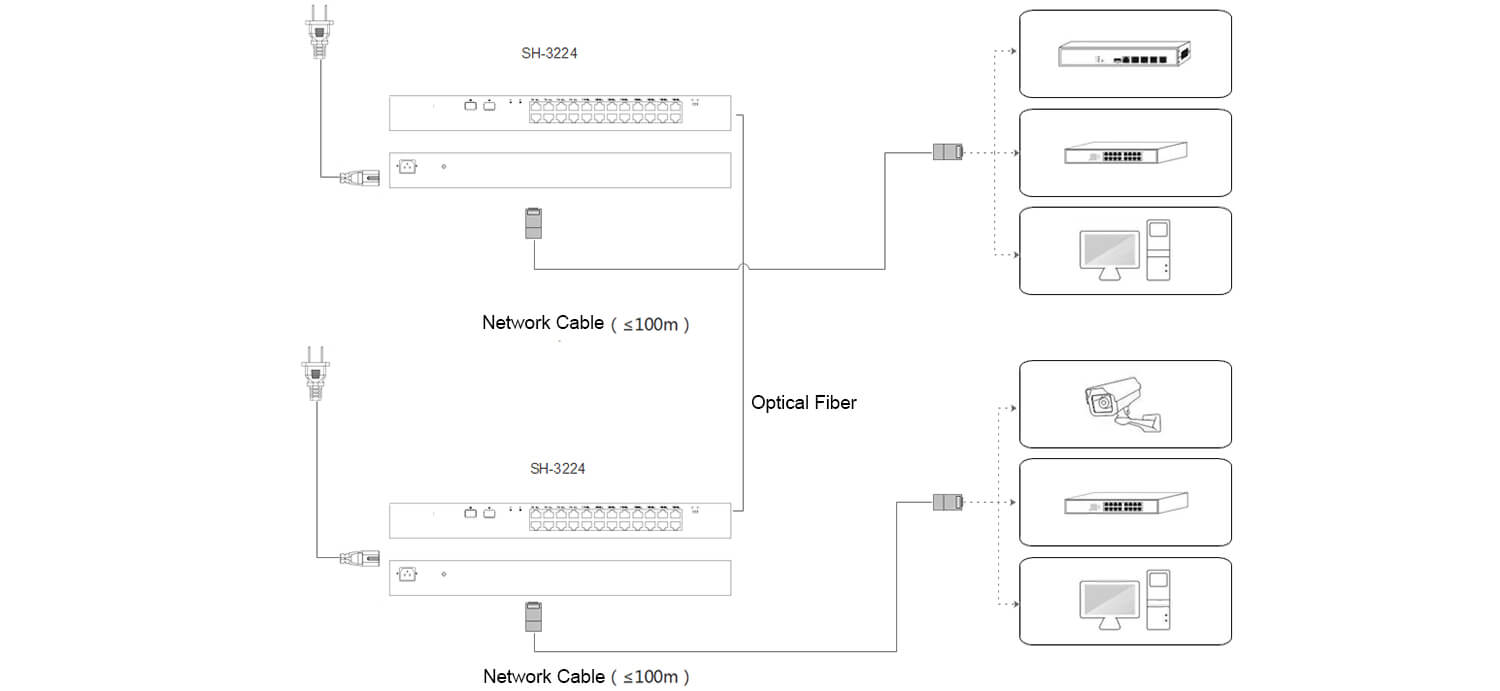

Applications
