SH-3016

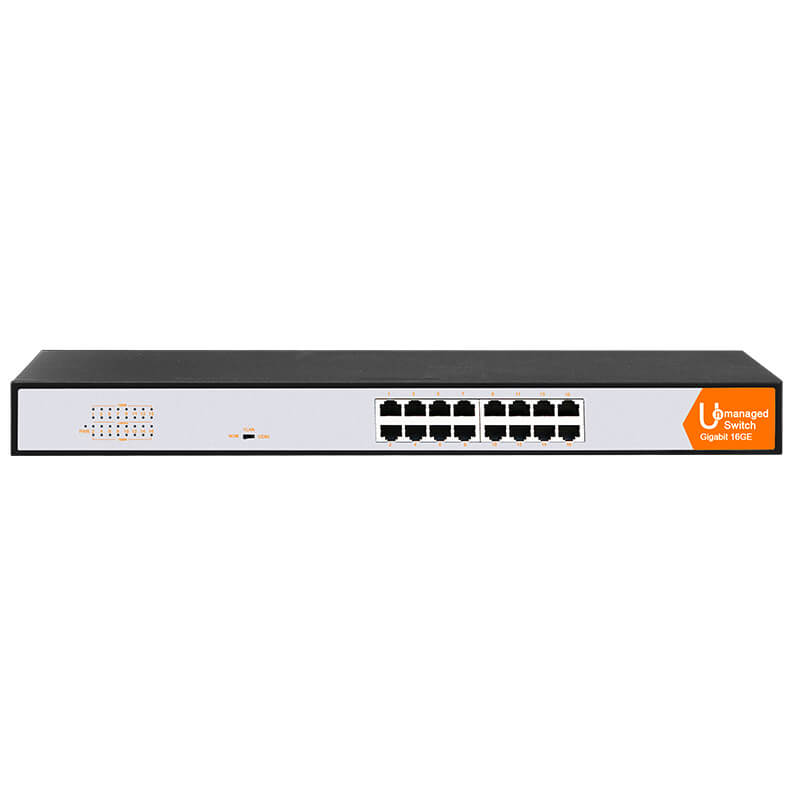

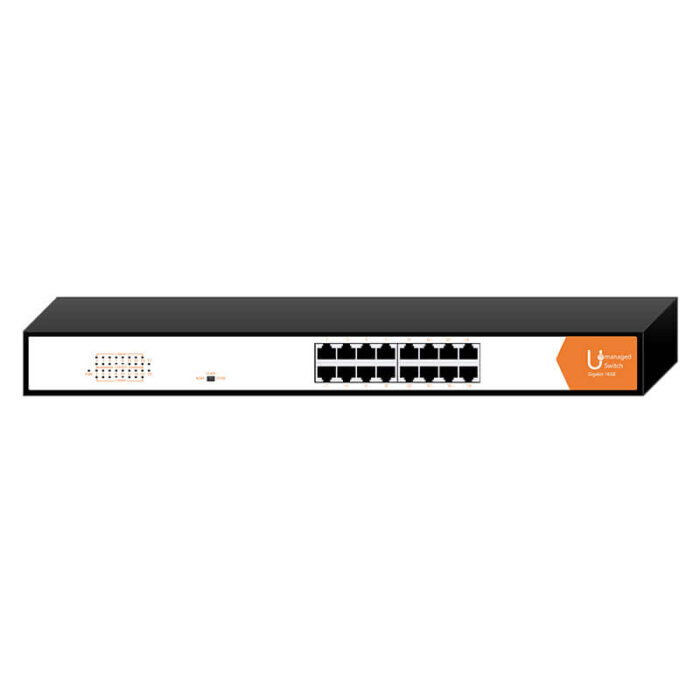

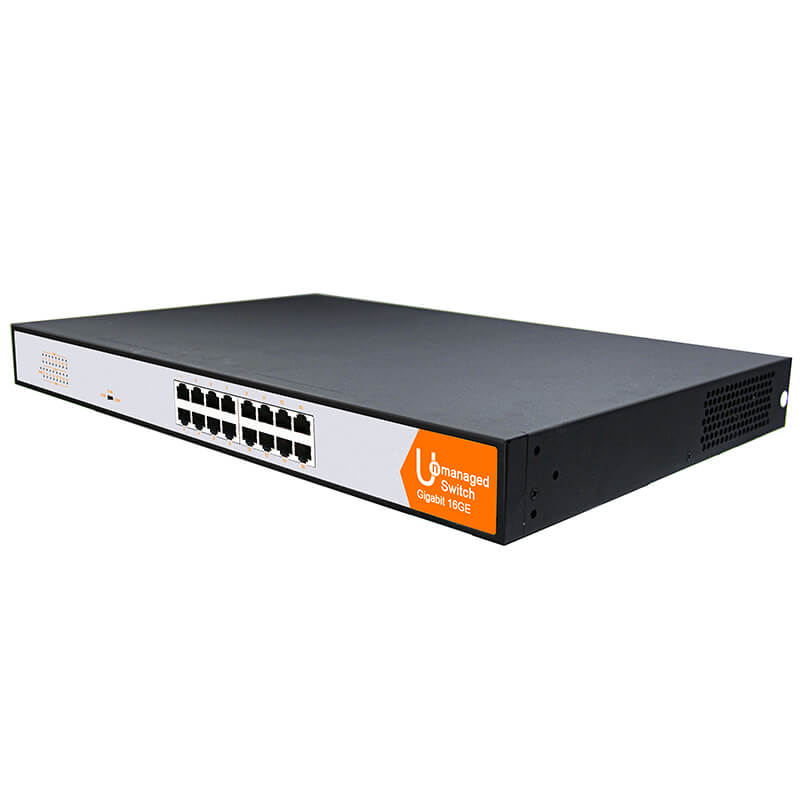

Commercial Unmanaged Switch With 16*10/100/1000Base-T RJ45 Ports
Commercial Unmanaged Switch With 16*10/100/1000Base-T RJ45 Ports - Image 2
Commercial Unmanaged Switch With 16*10/100/1000Base-T RJ45 Ports - Image 3
Commercial Unmanaged Switch With 16*10/100/1000Base-T RJ45 Ports - Image 4
Categories: ,

Commercial Unmanaged Switch With 16*10/100/1000Base-T RJ45 Ports

Feature
  • 16 x 10/100/1000M auto-negotiation RJ45 copper ports
  • Full/half-duplex auto-negotiation support
  • MDI/MDI-X auto-negotiation support
  • Desktop-mountable design
  • Built-in power adapter with 100–240V wide voltage input
  • Plug-and-play, easy maintenance
  • One-key configuration for port isolation and flow control modes

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

free delivery

Get free delivery in most regions. Only a few areas have extra shipping fees for your order.

secure payments

Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.

Return Policy

We stand by our products. You can return any item within 30 days if you’re not completely satisfied.

official products

All our products are sourced directly from official channels, offering you genuine items of the highest quality.

Product Detail

Description
The SH-3016 Series commercial-grade unmanaged switches series provides 16 x 10/100/1000M auto-negotiation Base-T RJ45 ports. Compliant with international standards such as IEEE 802.3, it is fully compatible with network devices from other brands (e.g., switches, routers). As a cost-effective network access device, it is widely used in high-speed access networks for enterprises, campuses, etc. The SH-3016 supports most HD cameras on the market and is extensively applied in HD surveillance transmission systems for smart cities, road monitoring, and other security applications.
Order Guide
Model Specifications
SH-3016 Commercial Unmanaged Switch With 2*10/100/1000Base-T RJ45 Ports + 8*100/1000Base-X Ports, AC100-240V, external power supply.
Technical Specifications

Standard Description
IEEE802.3 Ethernet Protocol
IEEE802.3i 10Base-Tx
IEEE802.3u 100Base-Tx/Fx
IEEE802.3ab 1000Base-Tx
IEEE802.3x Flow Control

Parameter Specification
Ports 16*10/100/1000Base-T Auto-Negotiation
Interface RJ45
Transmission Distance ≤100 meters @100/1000Base-T
≤250 meters @10Base-T

Parameter Specification
Backplane Bandwidth 32G
MAC Address Table 38K entries
Packet Forwarding Rate 23.8Mpps
Store-and-Forward Supported

Parameter Specification
Voltage AC 100–240V
Current ≤1A
Power Consumption ≤25W

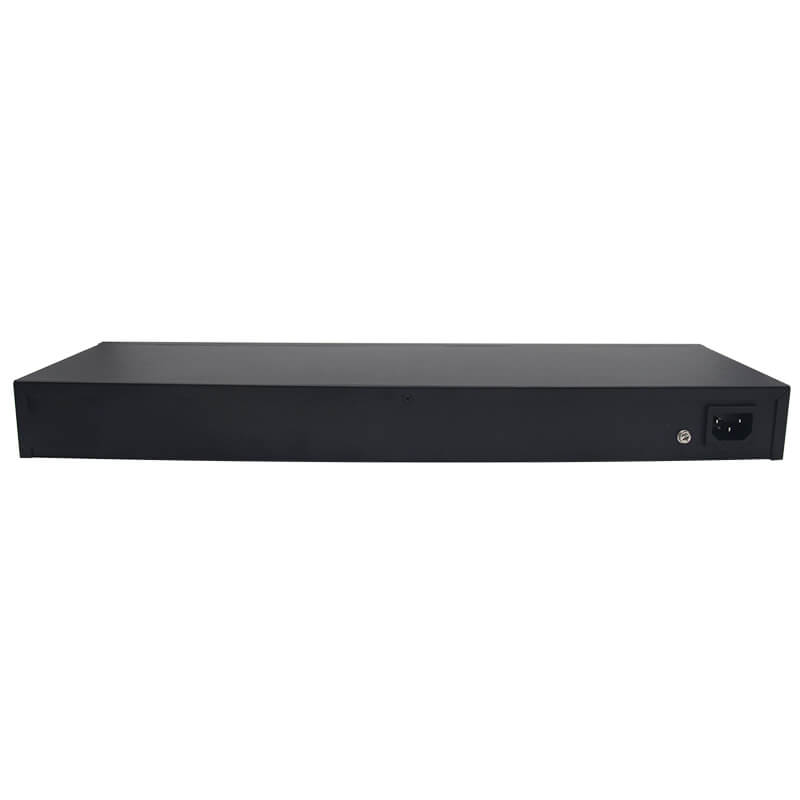

Interface IEC-60320 C14 (Kettle-type)

Parameter Specification
Operating Temperature 0°C–65°C
Operating Humidity 5%–90% (Non-Condensing)
Storage Temperature -40°C–75°C
Storage Humidity 5%–95% (Non-Condensing)

Parameter Specification
Housing Metal Extrusion
Dimensions 440×140×45mm
Weight 1.6kg
Mounting Method Rack-Mountable (1U)

Parameter Specification
LED Indicators Power, Ethernet Port Link/Act, Ethernet Speed
MTBF 500,000 Hours

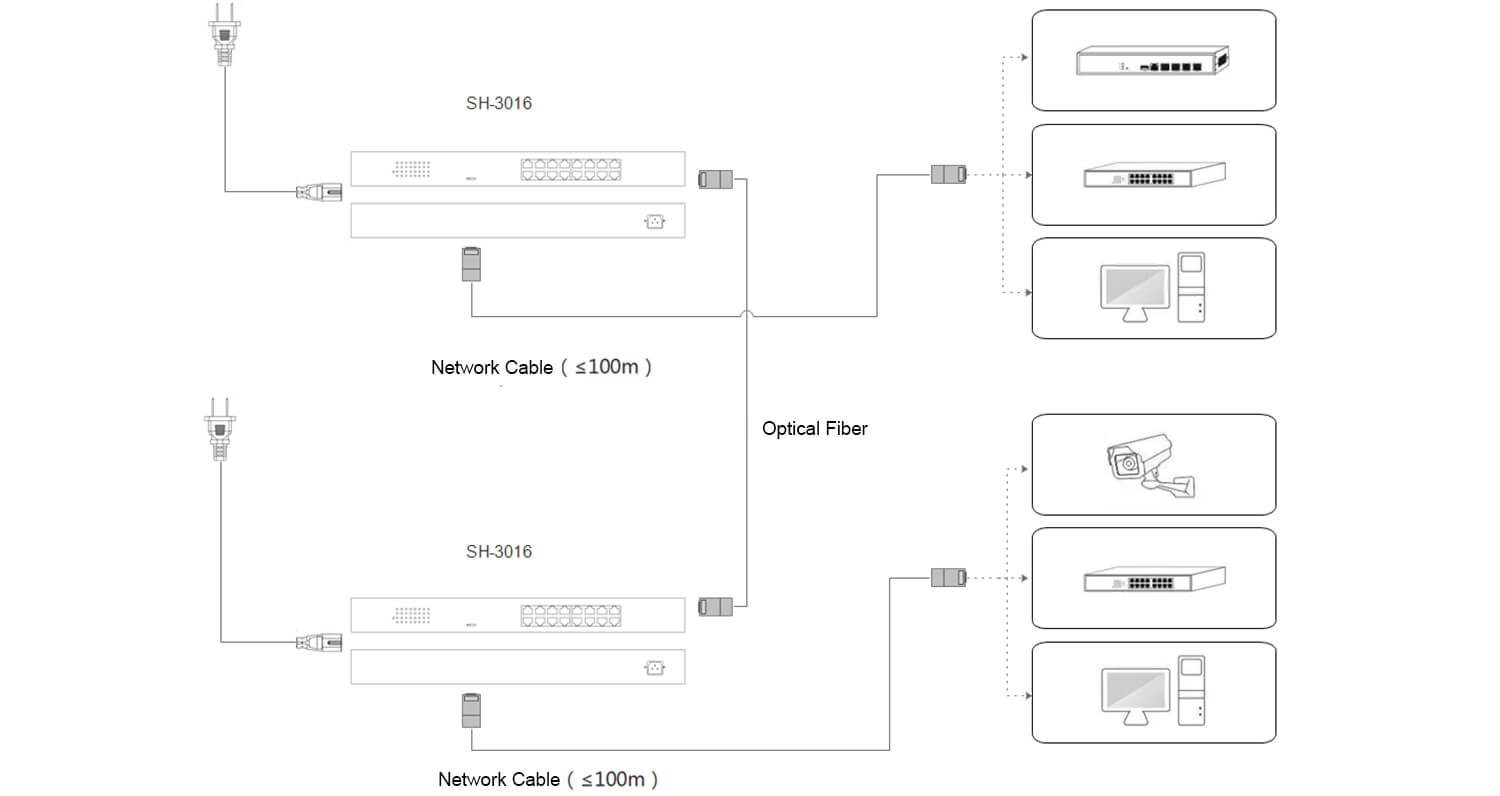

Applications
