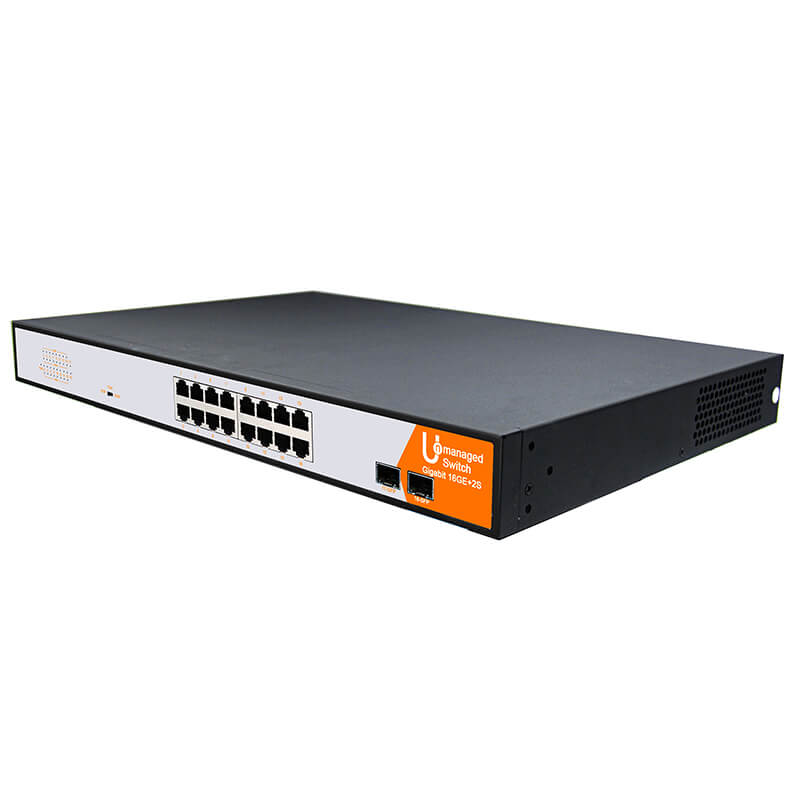

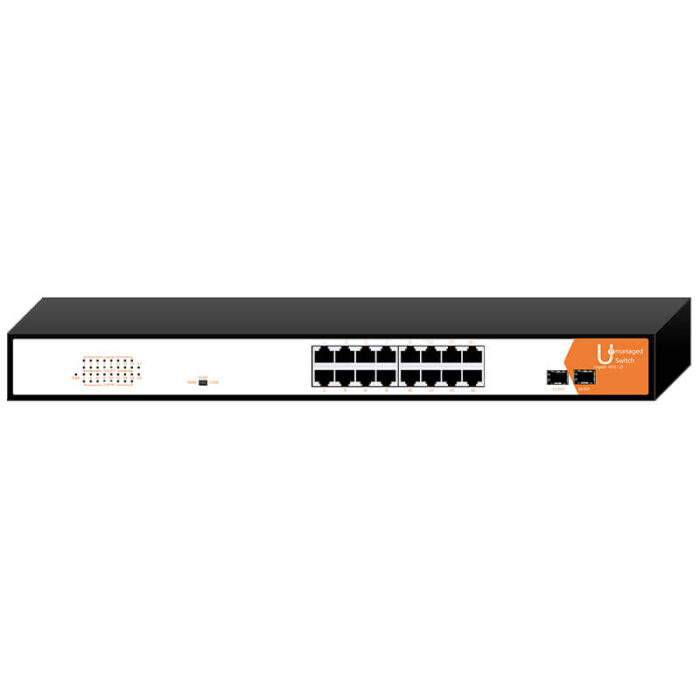

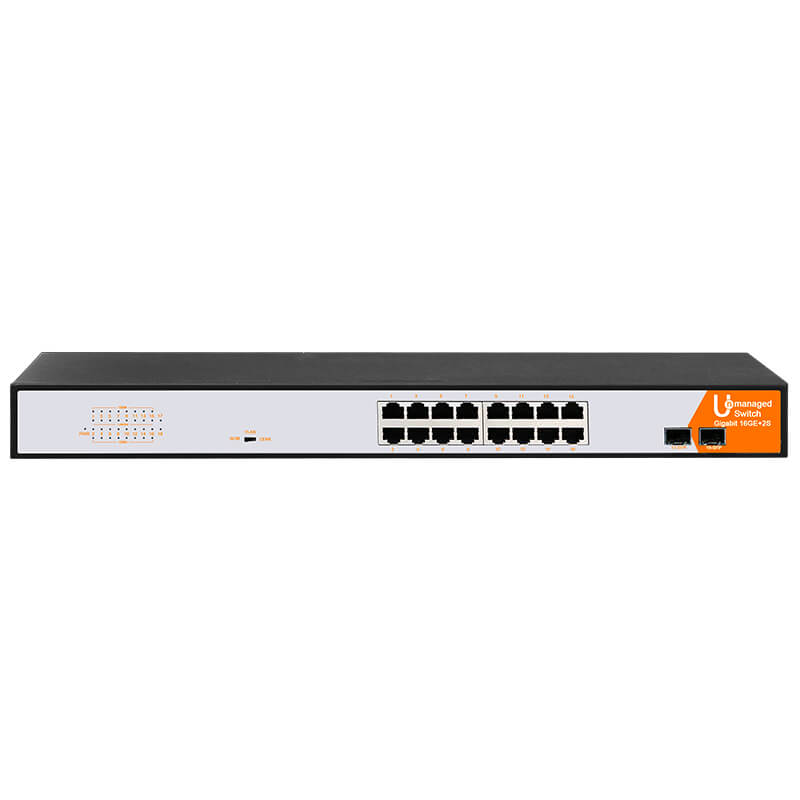

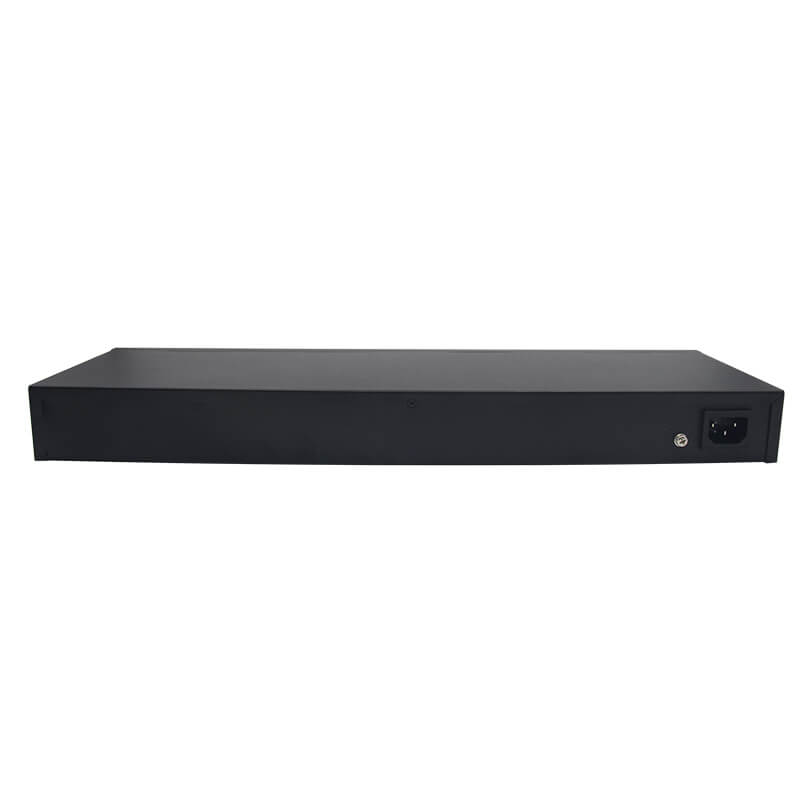

SH-3216

Commercial Unmanaged Switch With 16*10/100/1000Base-T RJ45 Ports + 2*1000Base-X Ports
Commercial Unmanaged Switch With 16*10/100/1000Base-T RJ45 Ports + 2*1000Base-X Ports - Image 2
Commercial Unmanaged Switch With 16*10/100/1000Base-T RJ45 Ports + 2*1000Base-X Ports - Image 3
Commercial Unmanaged Switch With 16*10/100/1000Base-T RJ45 Ports + 2*1000Base-X Ports - Image 4
Categories: ,

Commercial Unmanaged Switch With 16*10/100/1000Base-T RJ45 Ports + 2*1000Base-X Ports

Feature
  • 16 x 10/100/1000Base-T auto-negotiation RJ45 ports
  • Full/half-duplex auto-negotiation support
  • MDI/MDI-X auto-negotiation support
  • 2 x 100/1000M fiber ports
  • SC/LC optical interfaces available upon request
  • Built-in power adapter with AC 100–240V wide voltage input
  • Plug-and-play, easy maintenance
  • One-key configuration for port isolation

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

free delivery

Get free delivery in most regions. Only a few areas have extra shipping fees for your order.

secure payments

Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.

Return Policy

We stand by our products. You can return any item within 30 days if you’re not completely satisfied.

official products

All our products are sourced directly from official channels, offering you genuine items of the highest quality.

Product Detail

Description
The sh-3216 commercial-grade unmanaged switches provides 16 x 10/100/1000Base-T auto-negotiation RJ45 ports and 2 x 1000M fiber ports. Compliant with international standards such as IEEE 802.3, it is fully compatible with network devices from other brands (e.g., switches, routers). As a cost-effective network access solution, it is widely deployed in high-speed networks for enterprises, campuses, etc. The SH-3216 supports most HD cameras on the market and is extensively used in HD surveillance transmission systems for smart cities, road monitoring, and other security applications.
Order Guide
Model Specifications
SH-3216 Commercial Unmanaged Switch With 16*10/100/1000Base-T RJ45 Ports + 2*1000Base-X Ports,  AC100-240V, -10℃- +65℃, Rack-Mountable
Technical Specifications

Standard Description
IEEE802.3 Ethernet Protocol
IEEE802.3i 10Base-Tx
IEEE802.3u 100Base-Tx/Fx
IEEE802.3z 1000Base-X
IEEE802.3ab 1000Base-Tx
IEEE802.3x Flow Control

Parameter Specification
Ports 16*10/100/1000Base-T Auto-Negotiation
Interface RJ45

Standard Distance
100/1000Base-T ≤100 meters
10Base-T ≤250 meters

Parameter Specification
Ports 2*1000M
Interface SC/LC (SFP)
Fiber Type Multi-Mode/Single-Mode

Fiber Type Distance
Multi-Mode ≤550m @850nm, ≤2km @1310nm
Single-Mode (Dual-Fiber) 3–60km @1310nm, 60–120km @1550nm
Single-Mode (Single-Fiber) 3–60km @1310/1550nm, 60–120km @1490/1550nm

Parameter Specification
Backplane Bandwidth 56G
MAC Address Table 8K entries
Packet Forwarding Rate 26.8Mpps
Store-and-Forward Supported

Parameter Specification
Voltage AC 100–240V, 50–60Hz
Current ≤1A
Power Consumption ≤30W
Interface IEC-60320 C14 (Kettle-Type)

Parameter Specification
Operating Temperature -10°C–65°C
Operating Humidity 5%–90% (Non-Condensing)
Storage Temperature -40°C–75°C
Storage Humidity 5%–95% (Non-Condensing)

Parameter Specification
Housing Metal Extrusion
Dimensions 440×290×45mm
Weight 2.4kg
Mounting Method Rack-Mountable (1U)

Parameter Specification
LED Indicators Power, Optical Port Link/Act, Ethernet Port Link/Act, Ethernet Speed
MTBF 500,000 Hours

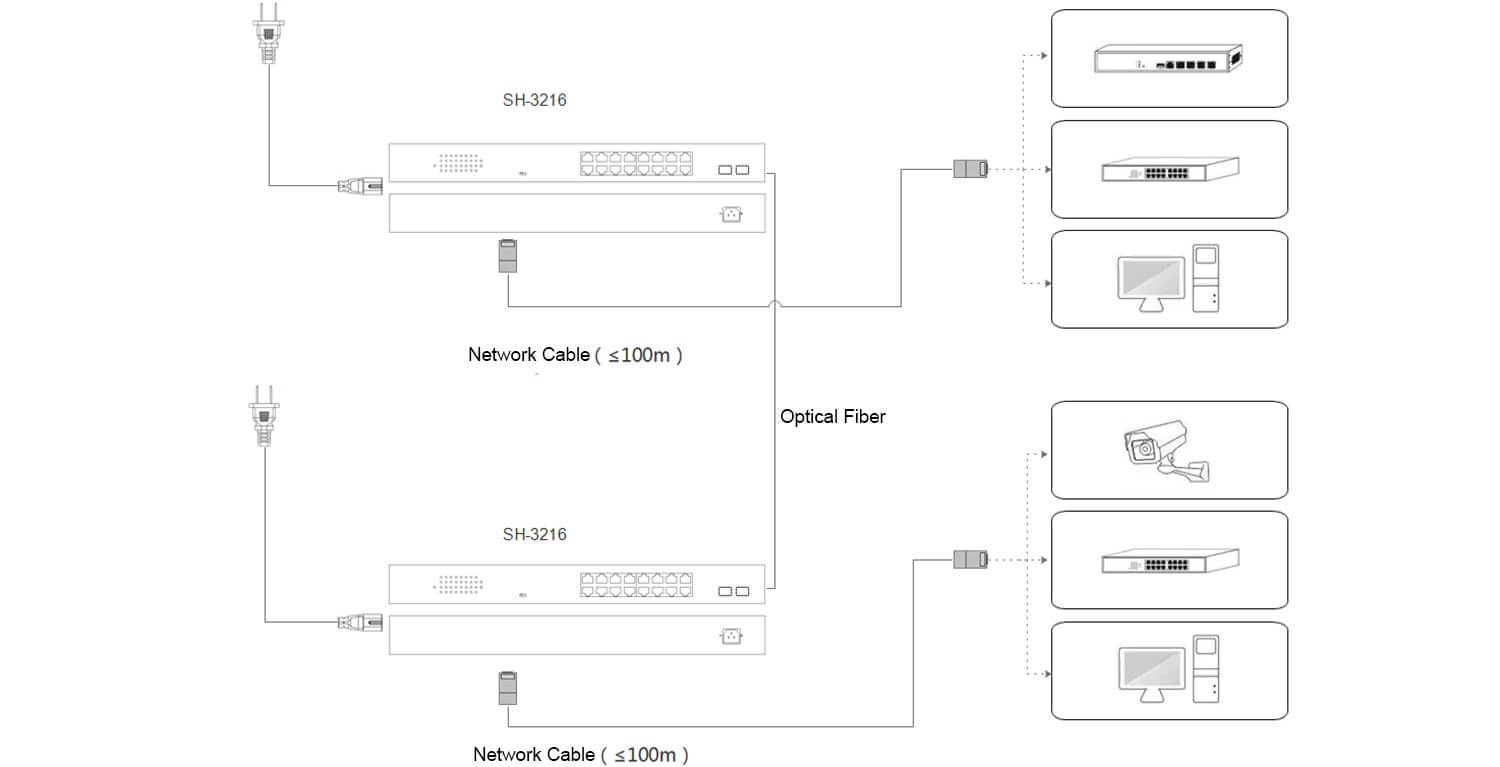

Applications

Quality Certifications
