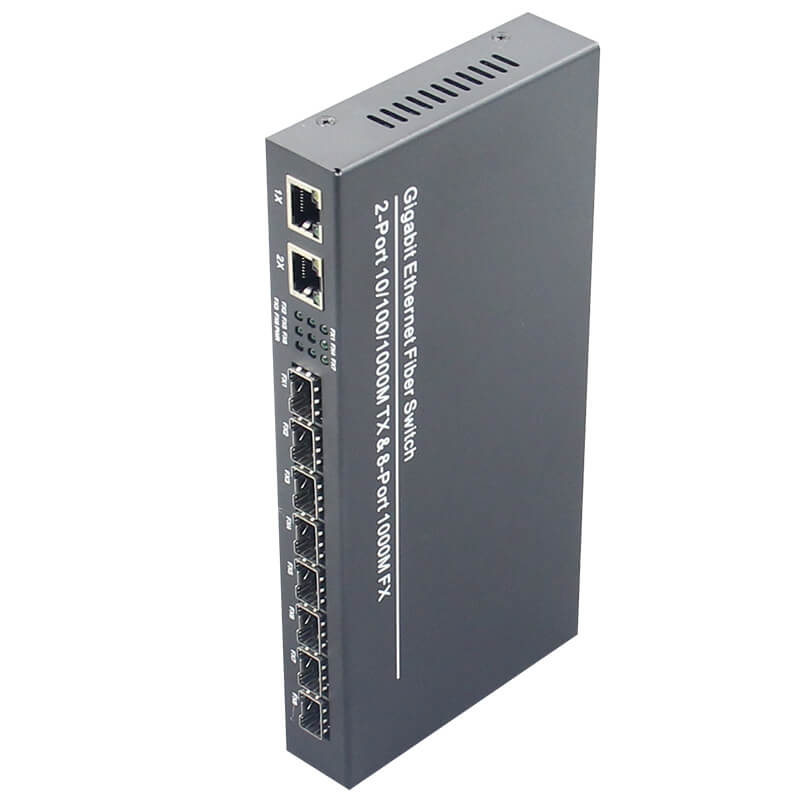

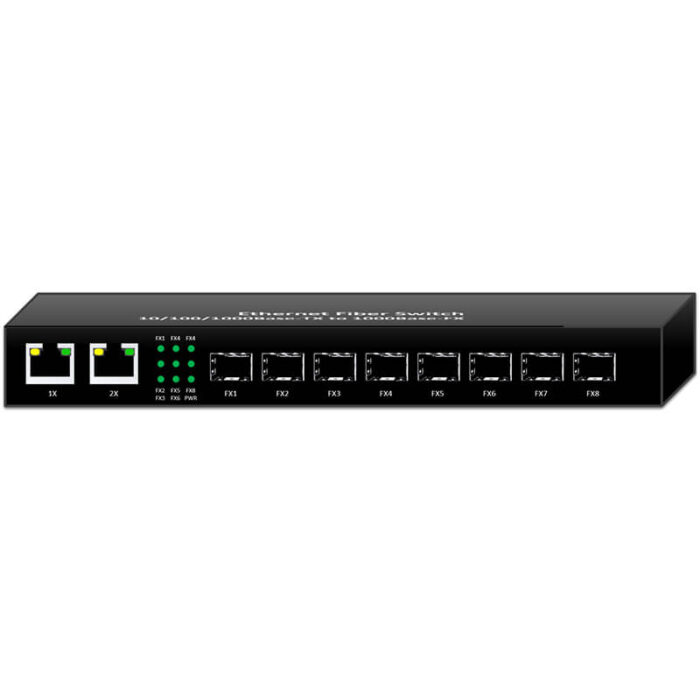

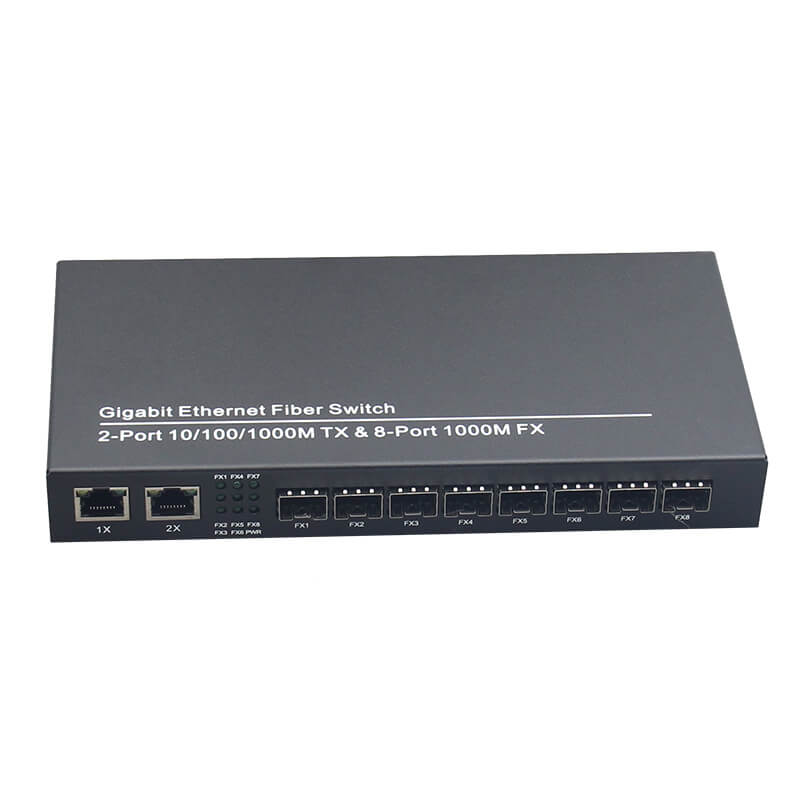

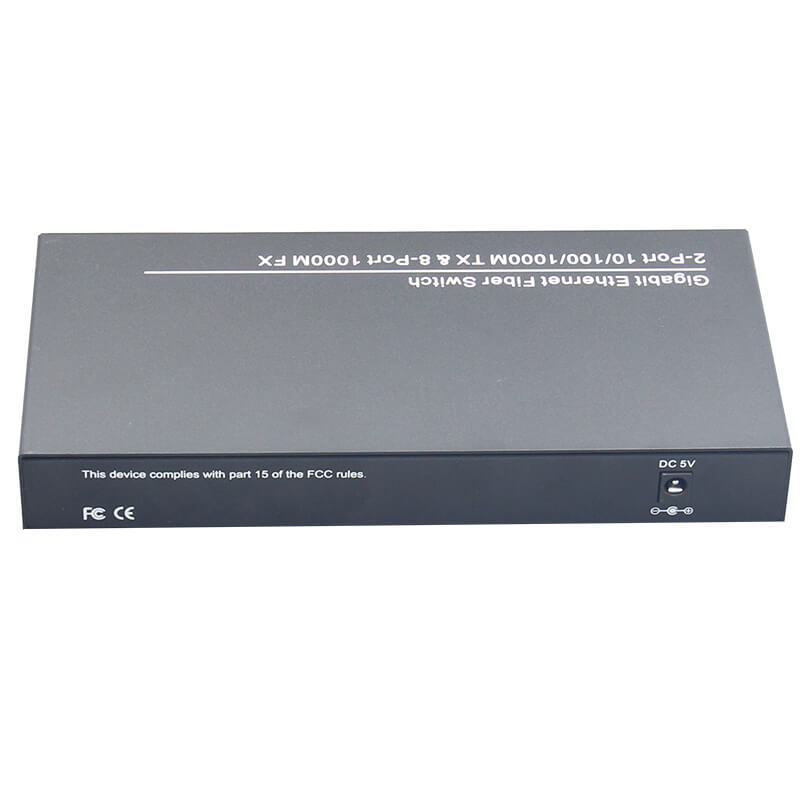

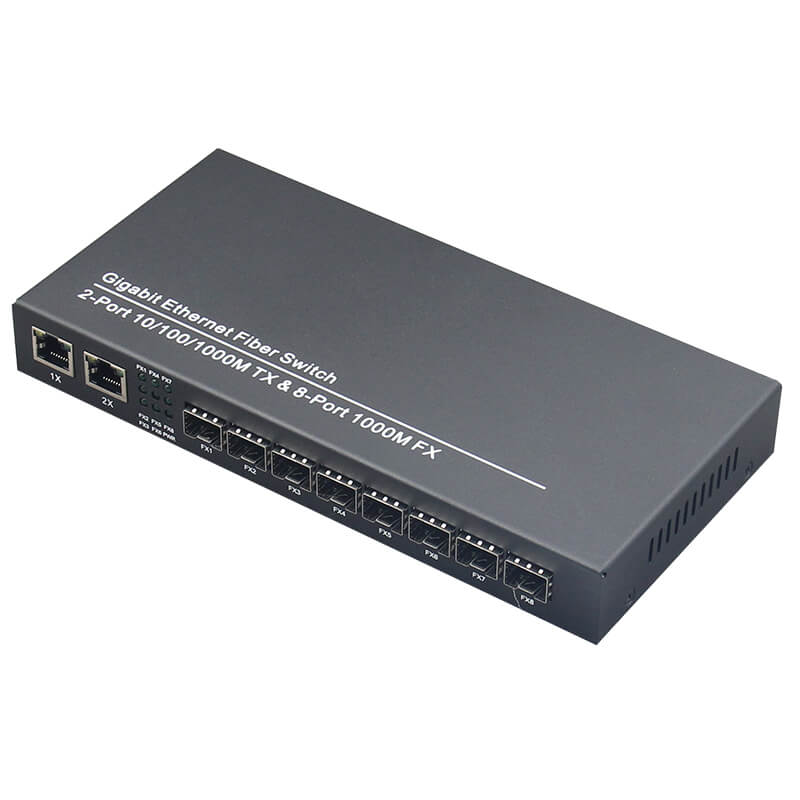

SH-382

Commercial Unmanaged Switch With 2*10/100/1000Base-T RJ45 Ports + 8*100/1000Base-X Ports
Commercial Unmanaged Switch With 2*10/100/1000Base-T RJ45 Ports + 8*100/1000Base-X Ports - Image 2
Commercial Unmanaged Switch With 2*10/100/1000Base-T RJ45 Ports + 8*100/1000Base-X Ports - Image 3
Commercial Unmanaged Switch With 2*10/100/1000Base-T RJ45 Ports + 8*100/1000Base-X Ports - Image 4
Commercial Unmanaged Switch With 2*10/100/1000Base-T RJ45 Ports + 8*100/1000Base-X Ports - Image 5
Categories: ,

Commercial Unmanaged Switch With 2*10/100/1000Base-T RJ45 Ports + 8*100/1000Base-X Ports

Feature
  • 2 x 10/100/1000M auto-negotiation RJ45 copper ports
  • Full/half-duplex auto-negotiation support
  • MDI/MDI-X auto-negotiation support
  • 8 x 100/1000M fiber ports
  • SC/ST/FC/LC optical interfaces available upon request
  • Desktop-mountable design
  • DC 5/12V power input
  • External power adapter with 100–240V wide voltage input
  • Plug-and-play, easy maintenance

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

free delivery

Get free delivery in most regions. Only a few areas have extra shipping fees for your order.

secure payments

Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.

Return Policy

We stand by our products. You can return any item within 30 days if you’re not completely satisfied.

official products

All our products are sourced directly from official channels, offering you genuine items of the highest quality.

Product Detail

Description
The SH-382 series commercial unmanaged switch offers 2 x 10/100/1000Base-T ports and 8 x 1000Base-X ports. Compliant with international standards such as IEEE 802.3, it is fully compatible with network devices from other brands (e.g., switches, routers). As a cost-effective access solution, it is widely deployed in high-speed networks for enterprises, campuses, etc. The SH-382 supports most HD cameras on the market and is extensively used in HD surveillance transmission systems for smart cities, road monitoring, and other security applications.
Order Guide
Model Specifications
SH-382-SFP Commercial Unmanaged Switch With 2*10/100/1000Base-T RJ45 Ports + 8*100/1000Base-X Ports, SFP slots, DC 12V, external power supply.
SH-382M-2 Commercial Unmanaged Switch With 2*10/100/1000Base-T RJ45 Ports + 8*100/1000Base-X Ports, multi-mode 1310nm 2KM SC, DC 12V, external power supply.
SH-382S-20 Commercial Unmanaged Switch With 2*10/100/1000Base-T RJ45 Ports + 8*100/1000Base-X Ports, single-mode 1310nm 20KM SC, DC 12V, external power supply.
SH-382-3A Commercial Unmanaged Switch With 2*10/100/1000Base-T RJ45 Ports + 8*100/1000Base-X Ports, single-mode single-fiber T1310/R1550nm 3KM SC, DC 12V, external power supply.
SH-382-3B Commercial Unmanaged Switch With 2*10/100/1000Base-T RJ45 Ports + 8*100/1000Base-X Ports, single-mode single-fiber T1550/R1310nm 3KM SC, DC 12V, external power supply.
SH-382-20A Commercial Unmanaged Switch With 2*10/100/1000Base-T RJ45 Ports + 8*100/1000Base-X Ports, single-mode single-fiber T1310/R1550nm 20KM SC, DC 12V, external power supply.
SH-382-20B Commercial Unmanaged Switch With 2*10/100/1000Base-T RJ45 Ports + 8*100/1000Base-X Ports, single-mode single-fiber T1550/R1310nm 20KM SC, DC 12V, external power supply.
Technical Specifications

Standard Description
IEEE802.3 Ethernet Protocol
IEEE802.3i 10Base-Tx
IEEE802.3u 100Base-Tx/Fx
IEEE802.3z 1000Base-X
IEEE802.3ab 1000Base-Tx
IEEE802.3x Flow Control

Parameter Specification
Quantity 2
Speed 10/100/1000M Auto-Negotiation
Interface RJ45
Transmission Distance ≤100 meters @100/1000Base-T
≤250 meters @10Base-T

Parameter Specification
Quantity 8
Speed 1000M
Interface SC/FC/ST/LC (SFP)
Fiber Type Multi-Mode/Single-Mode
Wavelength & Transmission Distance Multi-Mode: ≤550m @850nm, ≤2km @1310nm
Single-Mode (Dual-Fiber): 3~60km @1310nm, 60~120km @1550nm
Single-Mode (Single-Fiber): 3~60km @1310/1550nm, 60~120km @1490/1550nm

Parameter Specification
Voltage DC 5-12V
Current ≤2A
Power Consumption ≤1.5W (No Load)
≤5W (Full Load)
Interface 1x 5.5*2.5mm DC Jack

Parameter Specification
Operating Temperature 0°C-65°C
Operating Humidity 5%-90% (Non-Condensing)
Storage Temperature -40°C-85°C
Storage Humidity 5%-95% (Non-Condensing)

Parameter Specification
Housing Metal Extrusion
Dimensions 210x100x25mm
Weight 1kg
Mounting Method Desktop Installation

Parameter Specification
LED Indicators Power, Optical Port Link/Act, Ethernet Port Link/Act, Ethernet Speed
MTBF 500,000 Hours

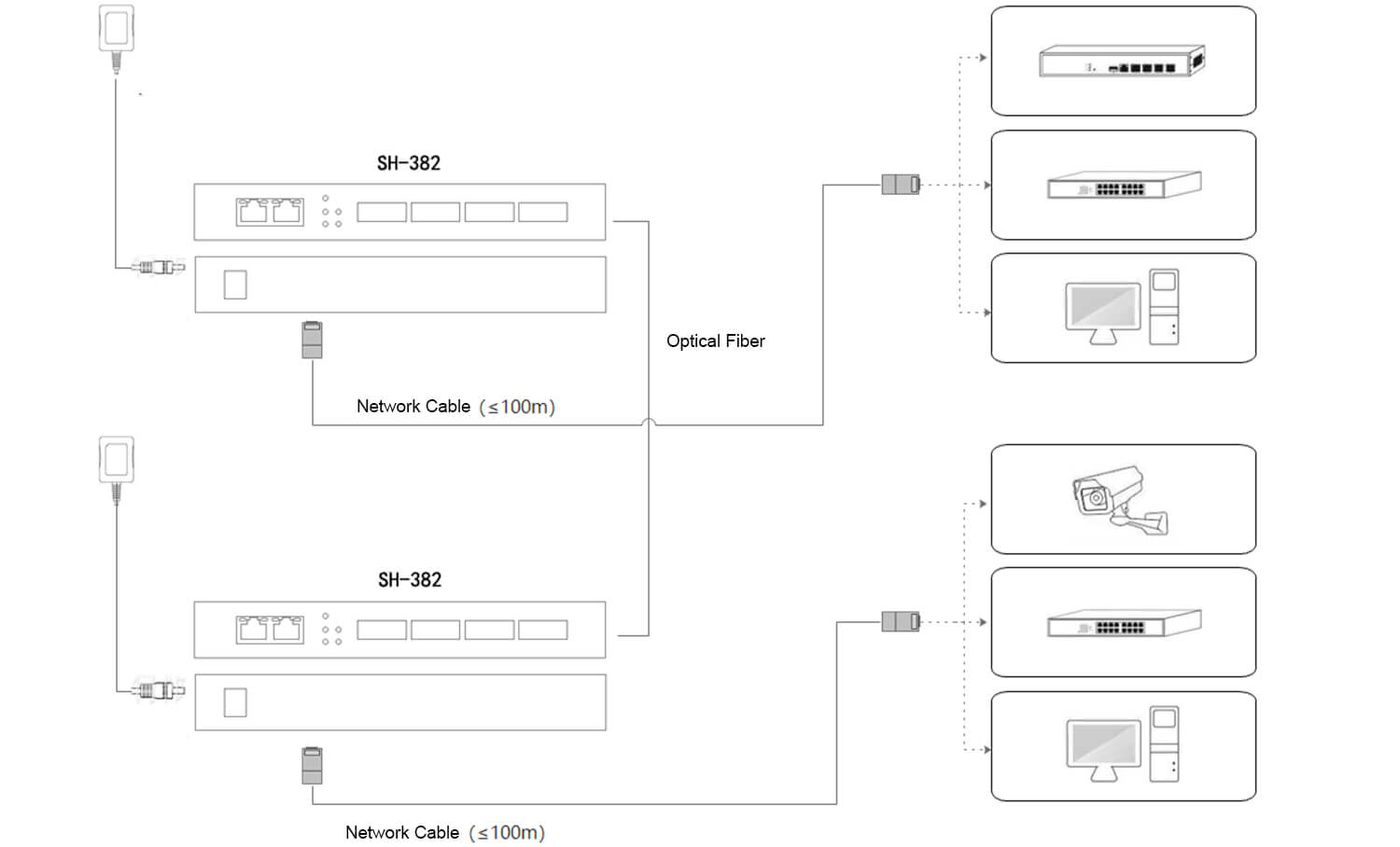

Applications

Quality Certifications

additional information

Model

SH-382-SFP, SH-382M-2, SH-382S-20, SH-382-3A, SH-382-3B, SH-382-20A, SH-382-20B
