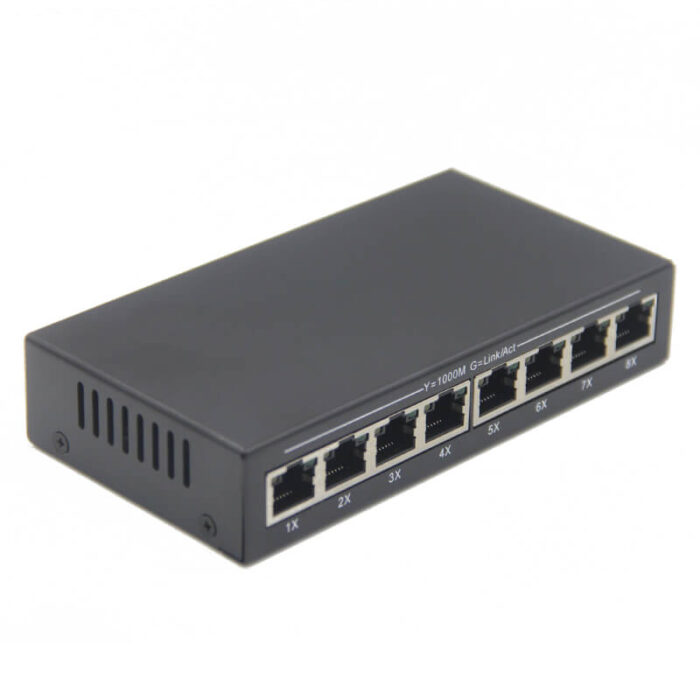

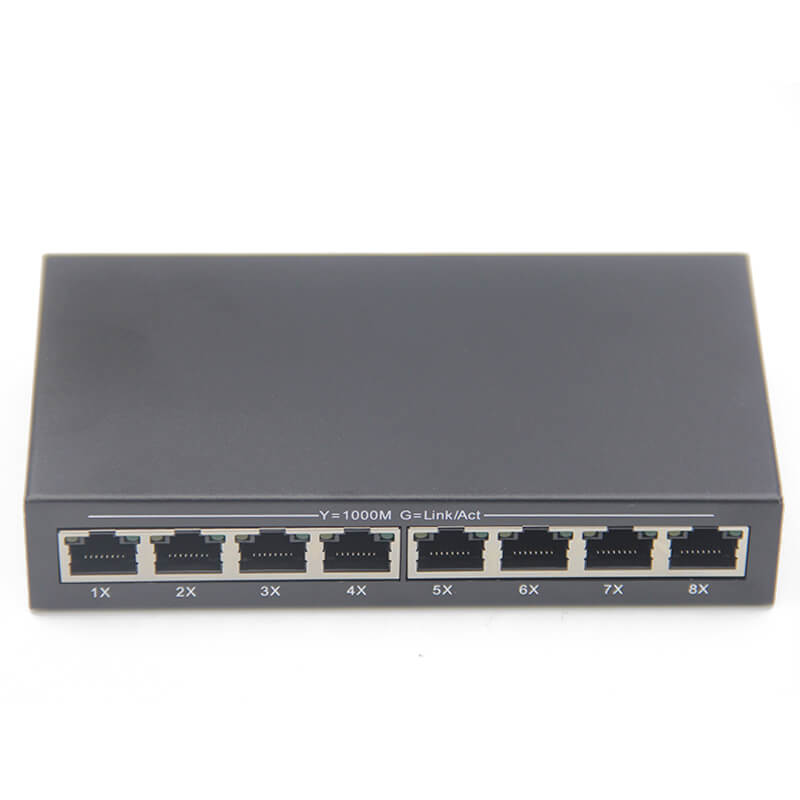

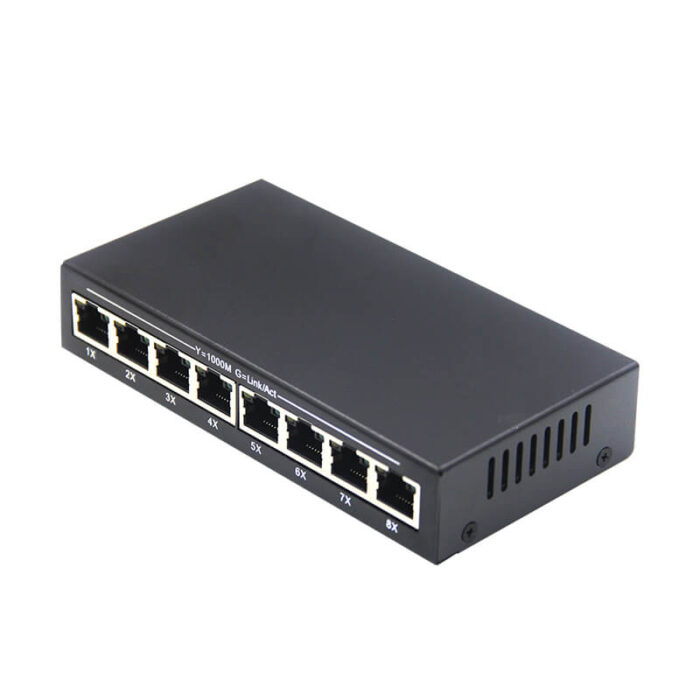

SH-308

Commercial Unmanaged Switch With 8*10/100/1000Base-T Auto-Sensed RJ45 Ports

Feature
  • 8 x 10/100/1000Base-T auto-negotiation RJ45 ports
  • Full/half-duplex auto-negotiation support
  • MDI/MDI-X auto-crossing support
  • Desktop-mountable design
  • DC 5/12V power input
  • External power adapter with 100-240V wide voltage input
  • Plug-and-play, easy maintenance

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

free delivery

Get free delivery in most regions. Only a few areas have extra shipping fees for your order.

secure payments

Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.

Return Policy

We stand by our products. You can return any item within 30 days if you’re not completely satisfied.

official products

All our products are sourced directly from official channels, offering you genuine items of the highest quality.

Product Detail

Description

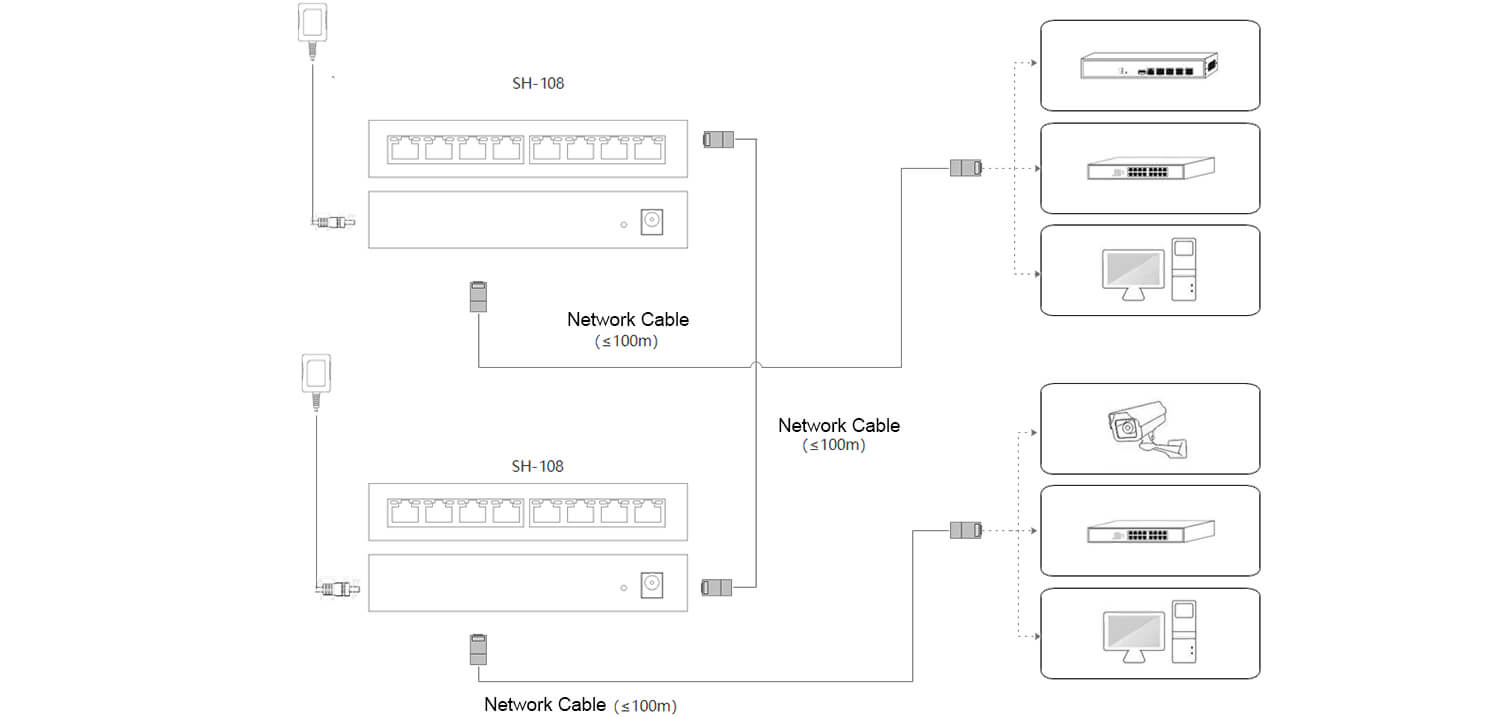

The SH-308 series commercial-grade unmanaged switch offers 8 x 10/100/1000Base-T auto-negotiation RJ45 ports. Compliant with international communication standards such as IEEE 802.3, it is fully compatible with network devices from other brands, including switches and routers. As a cost-effective access-layer network device, it is widely used in high-speed access networks for enterprises, campuses, and other scenarios. The SH-108 supports most HD cameras available on the market, making it suitable for high-definition monitoring transmission systems in applications like Safe City projects and road surveillance.

Technical Specifications
Standard Description
IEEE802.3 Ethernet Protocol
IEEE802.3i 10Base-Tx
IEEE802.3u 100Base-Tx/Fx
IEEE802.3ab 1000Base-Tx/Fx
IEEE802.3x Flow Control
Parameter Specification
Number 8*10/100/1000Base-T auto-negotiation
Interface RJ45
Transmission Distance ≤100 meters @100/1000Base-T
≤250 meters @10Base-T
Parameter Specification
Backplane Bandwidth 1.6G
MAC Address Table 4K
Packet Forwarding Rate 11.9Mpps
Store-and-Forward Supported
Parameter Specification
Voltage DC5-12V
Current ≤1A
Power Consumption Idle: ≤1.5W
Full Load: ≤6W

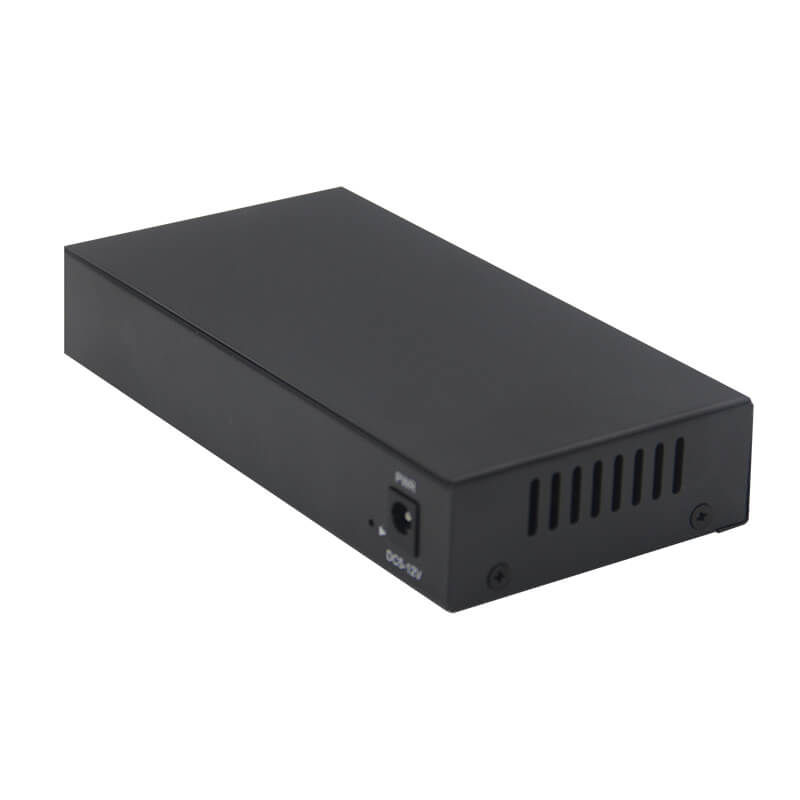

Interface 1 x 5.5*2.5mm DC socket
Parameter Specification
Operating Temperature -20℃ to +75℃
Operating Humidity 5%-90% (non-condensing)
Storage Temperature -40℃ to +85℃
Storage Humidity 5%-95% (non-condensing)
Parameter Specification
Housing Metal profile
Dimensions 140×75×25mm
Weight 0.8kg
Mounting Method Desktop installation
Parameter Specification

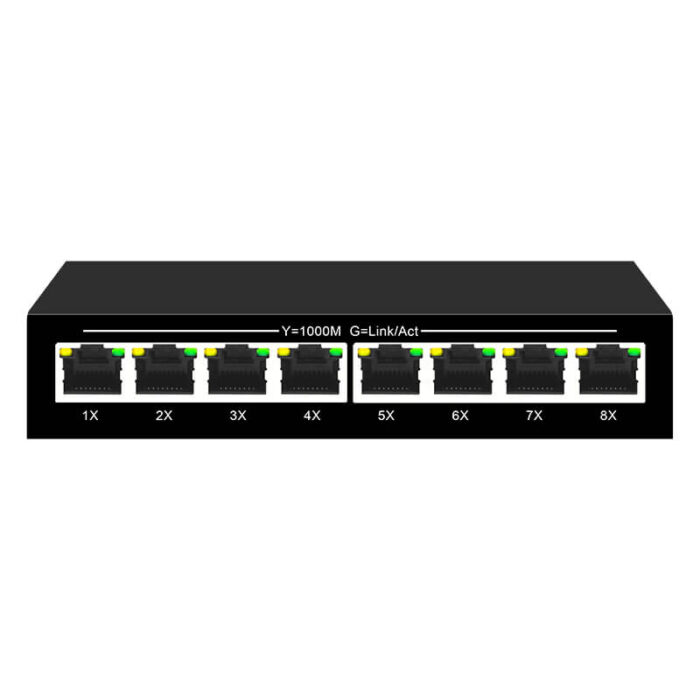

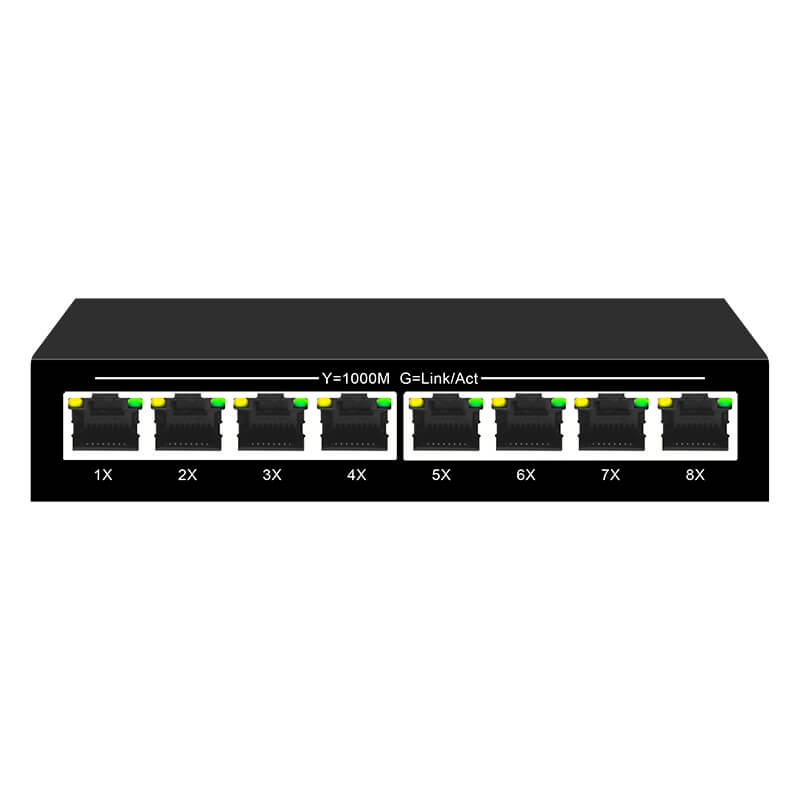

LED Indicators
  • Power indicator
  • Ethernet port Link/Act indicators
  • Ethernet port speed indicators
MTBF 500,000 hours
