Gigabit 4*1000M Base-X Ports 8*10/100/1000M RJ45 Base-T Ports Unmanaged Industrial Switch SH-G0408
- Supports 8*10/100/1000M auto-sensed RJ45 Base-T ports , with an optional POE support.
- Supports full/half-duplex auto-sensed.
- Supports MDI/MDI-X auto-sensed.
- Supports 4*1000M Base-X ports.
- LC/SC/ST/FC optical interfaces can be provided as required.
- Features excellent switching performance, with all ports supporting wire-speed and non-blocking forwarding.
- Supports the industrial protection level IP40.
- Supports lightning protection and anti-static protection.
- Supports DIN rail mounting.
- Operates within a wide temperature range from -40°C to +85°C.
- Accepts a wide input voltage range from DC12V to 54V, with dual power supply redundancy.
- Low power consumption and heat dissipation, featuring a fanless design.
free delivery
Get free delivery in most regions. Only a few areas have extra shipping fees for your order.
secure payments
Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.
Return Policy
We stand by our products. You can return any item within 30 days if you’re not completely satisfied.
official products
All our products are sourced directly from official channels, offering you genuine items of the highest quality.
Product Detail
Description
The SH – G0408 series industrial switch offer 8*10/100/1000M auto-sensed Base-T RJ45 ports and 4*1000M Base-X ports. They are specifically designed for network connections in harsh environments, featuring a wide operating temperature range from -40°C to +85°C, a fanless design, a compact structure, and DIN rail mounting. These switches are widely used in data transmission across many industries such as transportation, telecommunications, security, banking, customs, ports, power stations, and oil fields.
| Model | Specification description |
|---|---|
| SH-G0408-SFP | Gigabit industrial-grade switch with 4*1000M Base-X ports and 8*10/100/1000M Base-T ports, SFP slot (module not included), dual DC 12V – 54V,rail-mounted, operating temperature range: -40°C to 85°C |
Technical specifications
Protocol Standards
– IEEE802.3: Ethernet protocol
– IEEE802.3i: 10Base-Tx
– IEEE802.3u: 100Base-Tx/Fx
– IEEE802.3z: 1000Base-X
– IEEE802.3ab: 1000Base-Tx
– IEEE802.3x: Flow control
Ports
– Base-T Ports: 8*10/100/1000M auto-sensed RJ45 ports
– Transmission Distance: ≤100 meters @100/1000Base-T; ≤250 meters @10Base-T
– Base-X Ports: 4*1000M SFP slots
– Wavelength:
– Multimode: 850nm, 1310nm
– Single-mode: 1310nm, 1550nm
– Single-fiber: 1310/1550nm, 1490/1550nm
– Transmission Distance: Multimode: 550m/2km; Single-mode: 3km – 120km
Switching Features
– Switching Capacity: 24G
– MAC Address Table: 16K
– Packet Forwarding Rate: 17.85Mpps
– Store-and-Forward: Supported
Power Supply
– Supply Voltage: DC12V – 54V
– Power Consumption: ≤1W at no-load; ≤3.5W at full-load

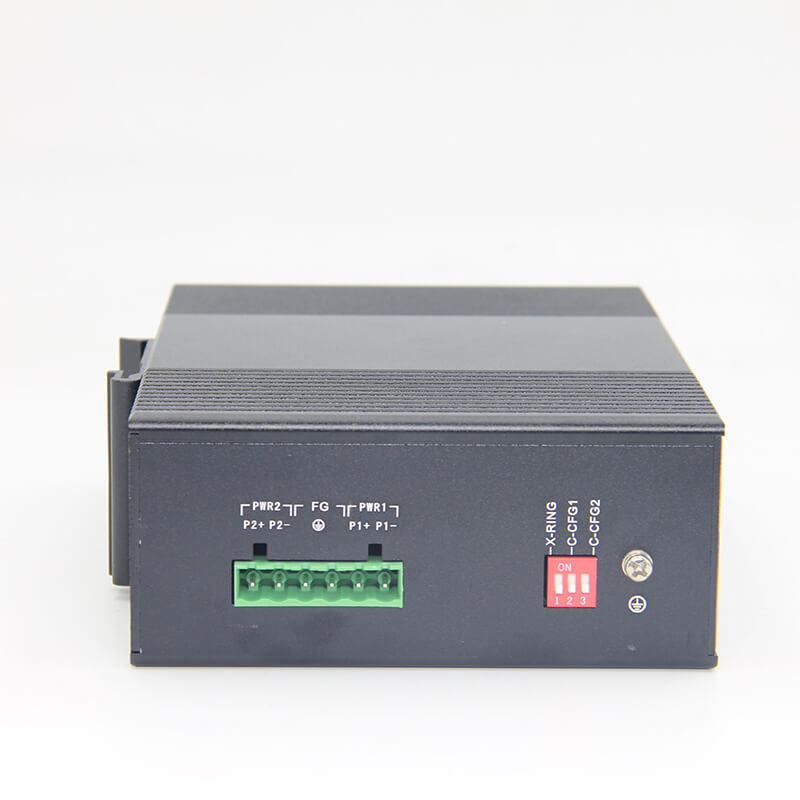

– Interface: 6-core terminal block with 5.08mm pitch
– Power Redundancy: Supported
– Reverse-polarity Protection: Supported
Environment
– Operating Temperature: -40°C – +85°C
– Operating Humidity: 5% – 90% (non-condensing)
– Storage Temperature: -40°C – +95°C
– Storage Humidity: 5% – 95% (non-condensing)
Mechanical Structure
– Enclosure: Metal profile
– Protection Level: IP40
– Dimensions: 153×113×50mm
– Net Weight: 0.57kg
– Installation Method: Rail-type installation
Safety Regulations
– Electrostatic Discharge (ESD) Protection: IEC61000-4-2 Level 3; Air discharge: ±8KV, Contact discharge: ±6KV
– Electromagnetic Field: IEC61000-4-3
– Electrical Fast Transient (EFT): IEC61000-4-4 Level 3; Power supply: ±2KV, Signal: ±1KV
– Surge Protection: IEC61000-4-5 Level 3;
– Power supply: Differential mode ±2KV, Common mode ±4KV
– Signal: Differential mode ±2KV, Common mode ±6KV
Others
– LEDs: Power indicator light; Base-X port Link/Act indicator light; Base-T port Link/Act indicator light; Base-T port speed indicator light
– MTBF: 500,000 hours

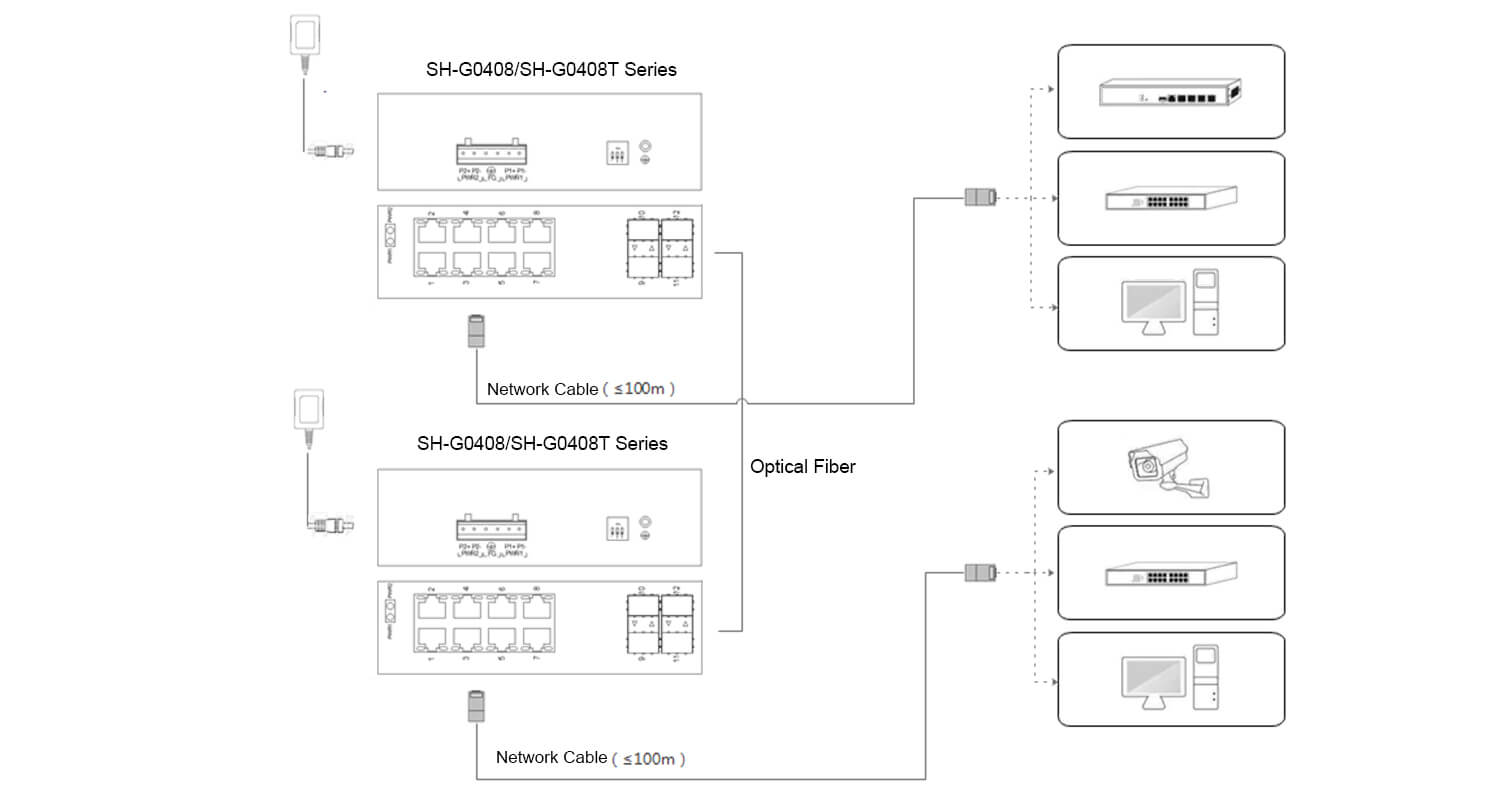

Application
