SH-DG-D328

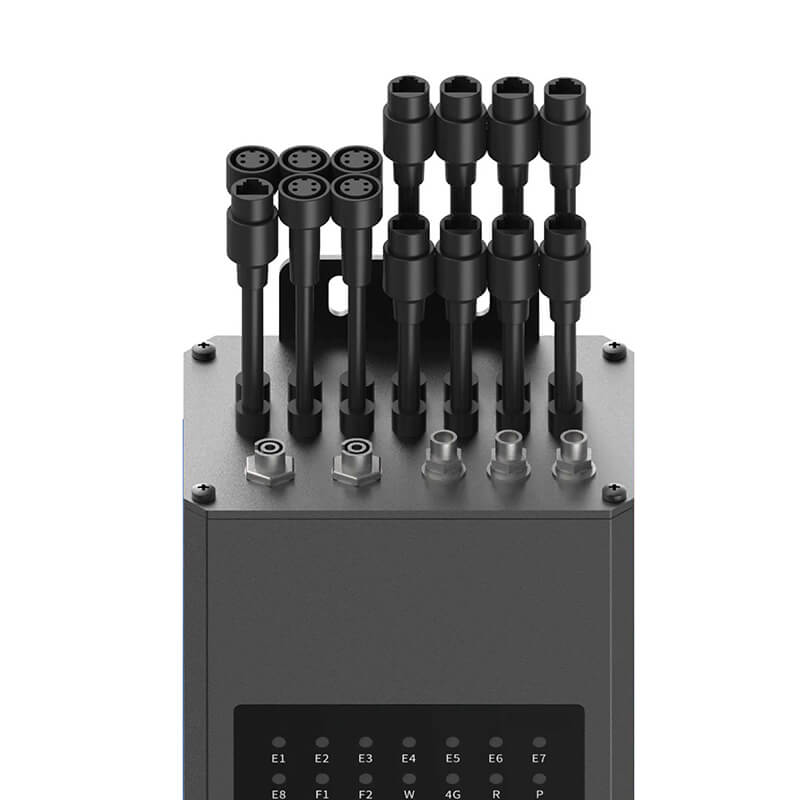

Industrial Grade Smart Gateway for Lamp Poles, Multi-Interface, IP66, Multi-Protocol & Outdoor-Ready

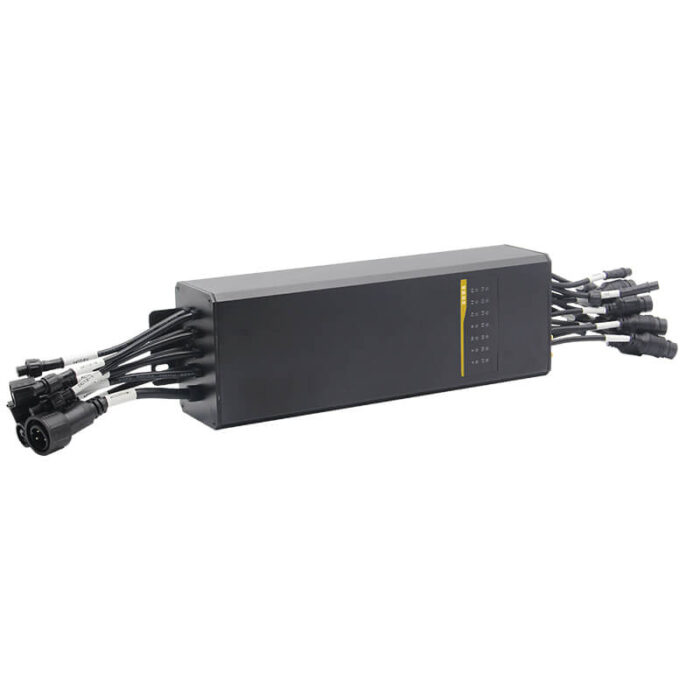

Industrial Grade Smart Gateway for Lamp Poles, Multi-Interface, IP66, Multi-Protocol & Outdoor-Ready - Image 2
Categories: ,

Industrial Grade Smart Gateway for Lamp Poles, Multi-Interface, IP66, Multi-Protocol & Outdoor-Ready

Feature

The industrial-grade smart gateway, designed for smart poles, adapts to harsh outdoors, integrates multiple functions, and supports one-stop device management with unified control, ease of use and security.
It offers rich power interfaces with diverse outputs, supporting independent control and monitoring to simplify wiring and deployment.
Equipped with Gigabit ports, 4G, WiFi, etc., it enables flexible networking for various scenarios.
Compatible with mainstream protocols like MODBUS and MQTT, it facilitates quick device access.
Featuring edge fault diagnosis, unified O&M and high reliability, it suits long-term outdoor operation.

Customize & Inquiry

We offer budget-friendly bulk prices and customized production to meet your unique needs. add to cart and get a quote

free delivery

Get free delivery in most regions. Only a few areas have extra shipping fees for your order.

secure payments

Rest assured when you shop. Our advanced encryption ensures secure payments, protecting your financial information at all times.

Return Policy

We stand by our products. You can return any item within 30 days if you’re not completely satisfied.

official products

All our products are sourced directly from official channels, offering you genuine items of the highest quality.

Product Detail

Description

The Smart Gateway is an industrial-grade edge computing gateway specifically designed for application scenarios such as smart poles, 5G smart light poles, and smart tower poles. The product is capable of operating around the clock in harsh outdoor environments.

Integrating multiple functions including power supply interfaces, network interfaces, electricity management and control, sensor data collection, edge computing and analysis, as well as operation and maintenance management and control, the Smart Gateway supports one-stop access and management of devices like smart lighting, video surveillance, public WiFi, information display screens, one-click alarms, charging piles, IP broadcasting, and environmental sensors. It features unified management, unified operation and maintenance, user-friendliness, safety, and reliability.

Feature Detail
  • Rich Power Supply Interfaces with Intelligent Electricity Management and Control
    It provides multiple power outputs including AC220V, DC24V, and DC12V, supporting independent output control, power monitoring, electricity consumption statistics, and abnormal electricity usage management for each circuit. This adapts to the access of different powered devices, reduces wiring complexity inside equipment enclosures, and lowers deployment difficulty.
  • Diverse Data Communication Interfaces for Flexible Networking
    Equipped with various data access and cloud communication methods such as Gigabit WAN ports, LAN ports, 4G, WiFi, Zigbee, Bluetooth, and LoRa, it allows flexible combination based on on-site device types or network conditions.
  • Compatibility with Mainstream Device Protocols for Fast Device Access
    It supports mainstream communication protocols including transparent transmission, MODBUS, MQTT, HTTP, and HTTPS, as well as protocols for domestic and foreign mainstream sensors, cameras, LED control cards, one-click alarms, IP sound columns, etc., facilitating quick device access and usage for users.
  • Edge Fault Diagnosis and Unified Frontend Operation & Maintenance
    It enables unified operation and maintenance management of connected devices through the edge gateway, distinguishing fault types such as power, network, and device faults. It can accurately identify fault phenomena, including abnormal power supply, overvoltage, undervoltage, illegal power theft, device malfunctions, network failures, unauthorized access, abnormal temperature and humidity, pole tilt, and water immersion warnings.
  • High-Reliability Design
    With an industrial-grade operating temperature range and IP66 protection rating, it features strong resistance to moisture, water immersion, lightning, and electromagnetic interference, making it suitable for long-term operation in outdoor light pole environments.
Hardware Parameters

Interface Type Specifications
AC220V Input 1 port, maximum 10A input
AC220V Output 4 ports, 5A maximum per port; supports remote on/off control and voltage/current detection
DC12V Output 3 ports, 1A maximum per port; supports remote on/off control and voltage/current detection

Interface Type Specifications
Network Ports 8 x 1000M ports (supports LAN and WAN modes)
Fiber Interfaces 2 x 1000M SFP ports (supports LAN and WAN modes)
Serial Ports 2 x RS485, 1 x RS232
4G Communication Optional 4G all-network support
Wireless Expansion Optional ZigBee/Lora/WiFi (three options, select one)
Positioning Optional Beidou & GPS support
Dry Contacts 2 x input and output interfaces
Indicators Power indicator, network indicator, operation indicator
Temperature & Humidity Detection Interface for temperature and humidity sensors (collects temperature and humidity data)
Water Immersion Sensor External interface for water immersion detection (collects water immersion status)
Attitude Detection Built-in attitude sensor (detects device tilt angle and vibration)

Function Type Details
Network Protocols Supports MQTT, Modbus, HTTP, TCP, UDP, and transparent transmission protocols
Device Status Monitoring Supports device network status detection and abnormal alarm reporting
Network Interface Management Supports network interface status detection, traffic detection, VLAN management, security admission, and network interface MAC binding
Power Consumption Detection Voltage and current detection for each power supply channel (supports voltage/current abnormality alarms); statistics of power consumption and cumulative power consumption; reports illegal power taking
Web Embedded WEB interface (access device WEB interface directly via browser to view real-time device information)
Log Recording Supports fault information and user operation log recording; supports classified log viewing
Device Upgrade Supports local USB interface and remote firmware update

Condition Type Specifications
Working Voltage AC220V
Working Environment Temperature -40~80℃, humidity <95% (non-condensing)
Protection Rating IP66
Product Dimensions 300×104×75 (mm)
