SH-DL4100-48160

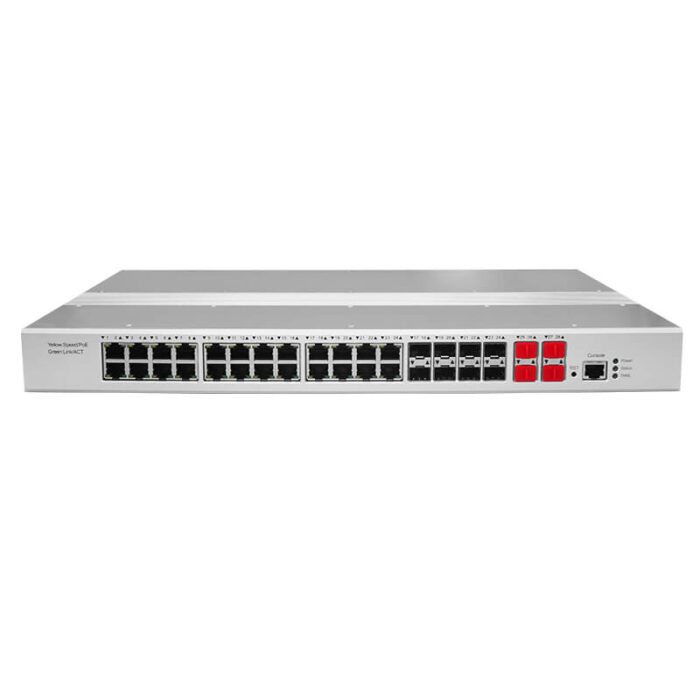

Industrial L3 Managed Ethernet Switch 1610/100/1000Base-TX PoE Ports + 8 Combo Ports + 410G SFP Slots

Industrial L3 Managed Ethernet Switch 16*10/100/1000Base-TX PoE Ports + 8 Combo Ports + 4*10G SFP Slots - Image 2

Industrial L3 Managed Ethernet Switch 16*10/100/1000Base-TX PoE Ports + 8 Combo Ports + 4*10G SFP Slots - Image 3

High-Performance & Dependable Ethernet Equipment for modern IoT & connectivity

Supports the IEC61850 communication standard
Provides 16x 10/100/1000Base-T copper ports
Equips 4x SFP slots, supporting the insertion of 100M/1G/10G SFP modules
Offers 8 sets of COMBO (optical-electrical multiplexing) ports
Maximum 30W PoE output per port
Supports IEEE802.af PoE and IEEE802.3at PoE+
Supports static routing
Supports the ERPS ring network protocol compliant with ITU-T G.8032, with a self-healing time of within 20ms
Supports STP/RSTP/MSTP network redundancy protocols
Supports IGMP v1/v2/v3 (IGMP snooping) multicast management
Supports SNMP v2c/v3 & 802.1Q VLAN network management
Allows management and configuration via multiple methods including Web, Telnet, and Console (CLI)
Features a fanless design and a high-strength metal casing

Order & Quote

SKU: SH-DL4100-48160Categories: Mining & Power Series, Private Network

Model

Clear

View Cart

Worldwide delivery is available with free shipping
3-Year Warranty | 30-Day Returns | 30-Day Exchange
Quality certifications, get detail Compliance Center

Quality Certifications

The recycling symbol signals that products or packaging are designed for recyclability, aligning with global waste management practices to promote sustainability.

RoHS compliance restricts the use of hazardous substances like lead and mercury in electronics, protecting human health and minimizing environmental impact.

FCC certification ensures electronic devices sold in the US meet electromagnetic and radio frequency standards, safeguarding against communication signal interference.

The CE mark confirms that products comply with EU safety, health, and environmental regulations, allowing seamless market access across the European Economic Area.

Description

The SH-DL4100-48160RT 10G industrial-grade L3 managed ethernet PoE switch is equipped with 4x 10GBase-X SFP+ slots, 8 sets of Gigabit combo (optical-electrical) ports, and 16x 10/100/1000Base-TX PoE copper ports. It supports the G.8032 EPRS Ethernet ring network protection switching protocol with a self-healing time of less than 20ms, enabling rapid recovery in case of network failures to ensure uninterrupted communication for critical applications. It supports a wide operating temperature range of -40~+85℃, guaranteeing stable operation in harsh environments. In addition, the SH-DL4100-48160RT supports Layer 3 functions such as static routing, and can be managed and configured via Web, Telnet, and Console (CLI). Boasting features such as high bandwidth, multiple ports, and high-power PoE, it is widely used in the smart power industry.

The SH-DL4100-48160RT supports PoE output, which can supply power to front-end PD devices such as network cameras and wireless APs, and is suitable for occasions where traditional wire routing is inconvenient.

Buying Guide

Model	Specifications
SH-DL4100-48160R	Industrial-grade managed ring network switch: 16x 10/100/1000Base-TX copper ports + 8 sets of combo (optical-electrical) ports + 4x 10G SFP optical ports, supports ERPS ring network, Layer 3 management, AC/DC 100～240V input,-40～+85℃
SH-DL4100-48160RT	Industrial-grade managed ring network PoE switch: 16x 10/100/1000Base-TX PoE copper ports + 8 sets of combo (optical-electrical) ports + 4x 10G SFP optical ports, ERPS ring network, Layer 3 management, DC 48V～57V input, -40～+85℃

Hardware Parameters

Ports

Parameter	Details
Copper Ports	16x 10/100/1000Base-T ports Transmission Distance: ≤100m @100/1000Base-T; ≤250m @10Base-T
COMBO Ports	8 sets
Optical Ports	4x SFP slots, supporting 100M/1G/10G SFP modules Wavelengths: Multimode (850nm, 1310nm); Singlemode (1310nm, 1550nm); Single-fiber (1310/1550nm, 1490/1550nm) Transmission Distance: Multimode (550m/2km); Singlemode (3km~120km)

Switching Features

Parameter	Details
Backplane Bandwidth	128G
MAC Address Table	16K
Packet Forwarding Rate	95.2Mpps
Store-and-Forward	Supported

PoE

Parameter	Details
Input Voltage	DC 48V-54V
Output Power	Maximum 30W per port
Wire Pairs	1/2 (+); 3/6 (-)

Power Supply

Parameter	Details
Input Voltage	DC 48V-54V

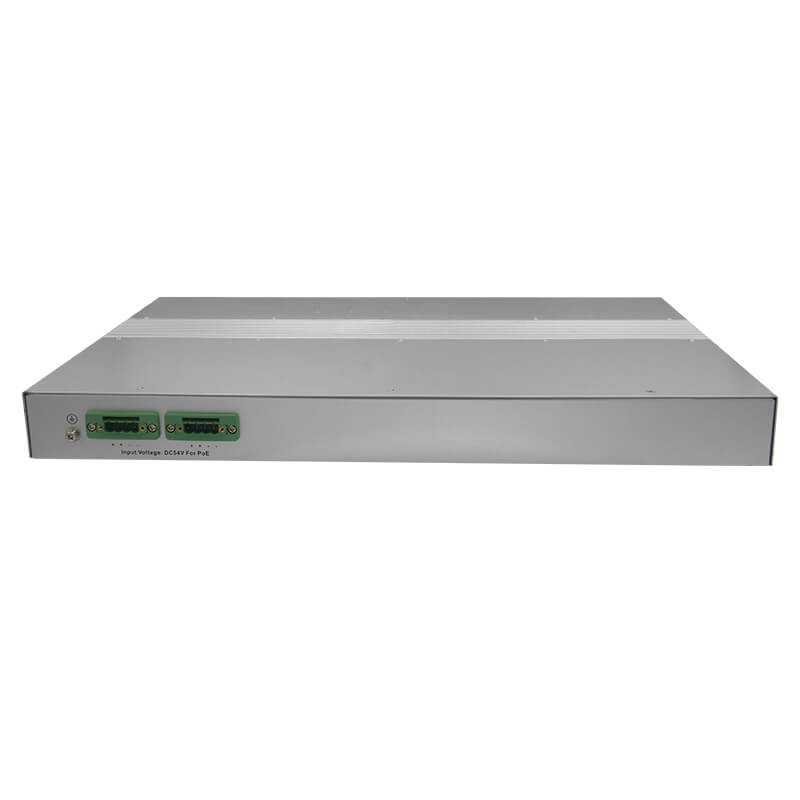

Interface	4-pin 5.08mm pitch terminal block
Power Redundancy	Supported
Reverse Connection Protection	Supported

Environment

Parameter	Details
Operating Temperature	-40℃-+85℃
Operating Humidity	5%-90% (non-condensing)
Storage Temperature	-40℃-+95℃
Storage Humidity	5%-95% (non-condensing)

Mechanical Structure

Parameter	Details
Housing	Metal profile
Protection Class	IP40
Dimensions	440×280×45mm
Net Weight	3.75kg
Installation	DIN-rail mount

Safety Specifications

Parameter	Details
ESD Protection	IEC61000-4-2 Level 3 (Air discharge: ±8KV; Contact discharge: ±6KV)
Electromagnetic Field	IEC61000-4-3
Electrical Fast Transient (EFT)	IEC61000-4-4 Level 3 (Power supply: ±2KV; Signal: ±1KV)
Surge Protection	IEC61000-4-5 Level 3 (Power supply: differential mode ±2KV, common mode ±4KV; Signal: differential mode ±2KV, common mode ±6KV)

Reliability

Parameter	Details
LED Indicators	Power indicator, optical port Link/Act indicators, copper port Link/Act indicators, copper port speed indicators
MTBF	500,000 hours

Software Features

Protocol Standards

Parameter	Details
IEEE 802.3	Ethernet protocol
IEEE 802.3i	10Base-Tx
IEEE 802.3u	100Base-Tx/Fx
IEEE 802.3z	1000Base-X
IEEE 802.3ab	1000Base-Tx
IEEE 802.3x	Flow control
IEEE 802.3af/at	PoE/PoE+; Power over Ethernet protocol
IEEE 802.3ad	LACP (Link Aggregation Control Protocol)
IEEE 802.1p	CoS (Class of Service)
IEEE 802.1q	VLAN (Virtual Local Area Network)
IEEE 802.1d	STP (Spanning Tree Protocol)
IEEE 802.1w	RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1x	Security authentication
IEEE 802.1ab	LLDP (Link Layer Discovery Protocol)

Switching Features

Parameter	Details
Redundant Network	Supports STP/RSTP/MSTP and ERPS
Loop Protection	Supports proprietary loop protection protocol
ERPS	Supports single ring, tangent ring, intersecting ring, and multi-ring
MAC Address Table	Complies with IEEE 802.1q standard; supports automatic MAC address learning and aging; supports static and dynamic MAC entries
Mirroring	Supports port-based bidirectional mirroring, VLAN-based inbound mirroring, and flow-based inbound mirroring
Layer 2 Multicast	Supports IGMP V1, V2, V3 Snooping; supports source port checking; supports IGMP Fast Leave; supports IGMP Filter; supports IGMP proxy
VLAN	Supports port-based VLAN; supports access ports, trunk ports, and hybrid ports
Private VLAN	Supported
GVRP	Supported
Port Aggregation	Supports static aggregation and dynamic aggregation (LACP protocol)

Security Features

Parameter	Details
QoS	Supports QoS re-marking and priority mapping; supports SP, WRR, and SP+WRR scheduling algorithms; supports inbound rate limiting, inbound priority rate limiting, outbound rate limiting, and outbound queue rate limiting; supports flow-based QoS and storm suppression; 8 queues per port
ACL	Supports matching L2, L3, and L4 fields; supports actions including logging, redirection, mirroring, and rate limiting
Dot1x	Supports port-based 802.1x authentication, user-based 802.1x authentication, MAC-based authentication, and RADIUS service
IP Source Guard	Supports dynamic entries (from DHCP Snooping) and static entries (from configuration)
ARP Inspection	Supports dynamic entries (from DHCP Snooping) and static entries (from configuration)
Diagnosis and Maintenance	Supports ping (IPv4), ping (IPv6), traceroute (IPv4), and traceroute (IPv6)

Management Features

Parameter	Details
Management Functions	Supports Telnet, CLI, WEB, and SNMP management modes
SNMP	Supports SNMPv2C and SNMPv3
RMON	Supports statistics group, history group, alarm group, and event group
Web Management	Supports Web management via HTTP V1.1 and HTTPS
IPv4/IPv6	Supports both IPv4 and IPv6
Security Functions	Supports DHCP Snooping, 802.1X, user-level management, ACL (Access Control List), DDoS protection, and port-based MAC filtering/binding
Port Management	Supports port enabling/disabling, rate setting, and 802.3x flow control

Application Features

Parameter	Details
NTP	Supports NTP Client
DHCP Client	Supported
DHCP Snooping	Supports building Snooping tables; supports trusted ports
TFTP	Supports TFTP Client
Telnet	Supports Telnet Server
SSH	Supports SSH Server
Firmware Upgrade	Supported

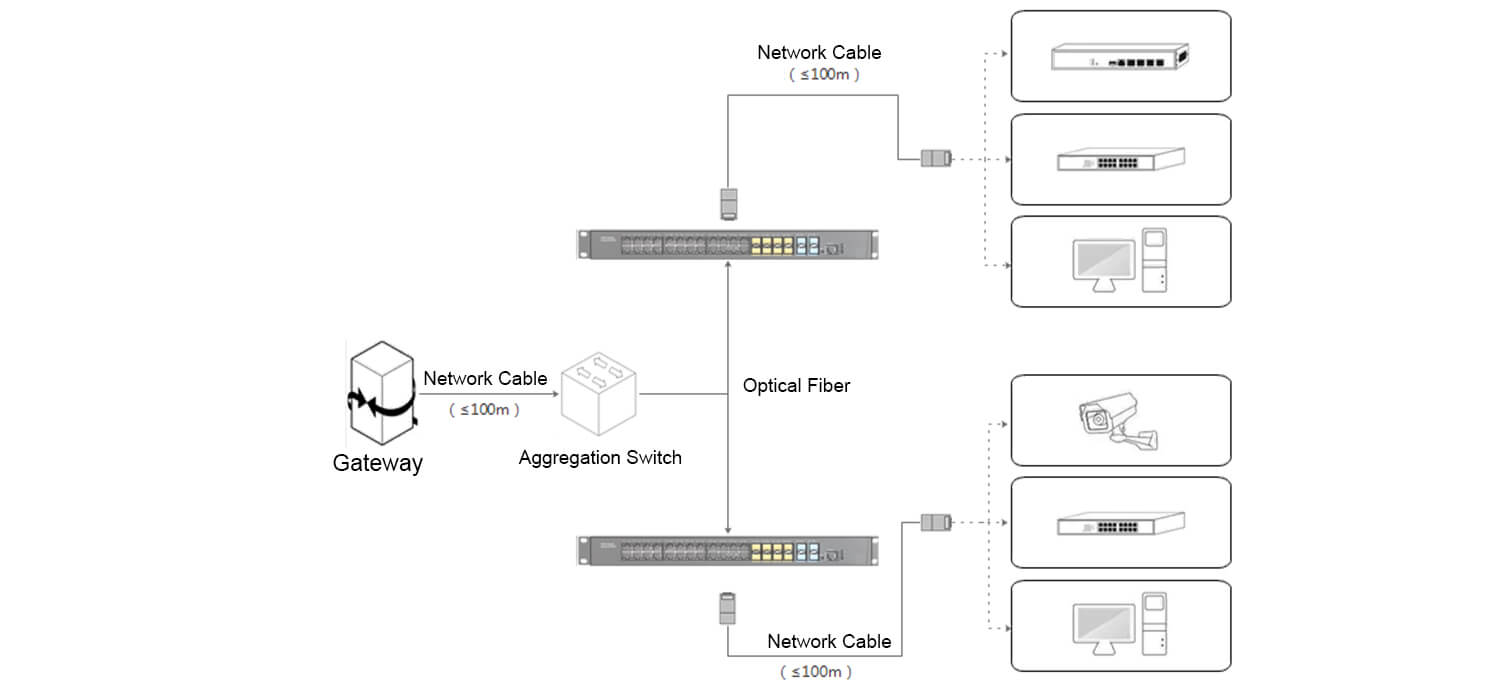

Application
